Product comparison · 2 audio mixers

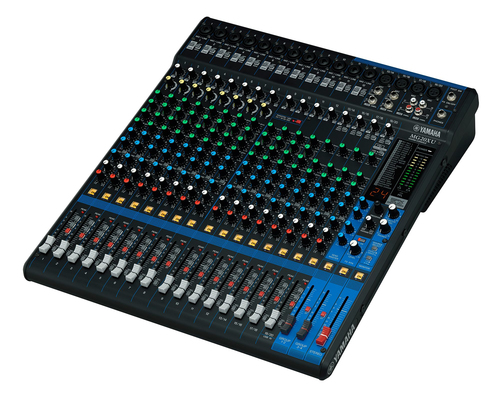

Yamaha MG20XU audio mixer 20 channels Black vs Yamaha TF5 audio mixer 48 channels 20

13specifications compared
9differ
4identical
12known for one product only

Key differences

Channels quantity
- MG20XU audio mixer 20 channels Black:20 channels
- TF5 audio mixer 48 channels 20:48 channels
Crosstalk (1kHz)
- MG20XU audio mixer 20 channels Black:-78 dB
- TF5 audio mixer 48 channels 20:-100 dB
DJ mixer
- MG20XU audio mixer 20 channels Black:No
- TF5 audio mixer 48 channels 20:Yes
Product colour
- MG20XU audio mixer 20 channels Black:Black
- TF5 audio mixer 48 channels 20:Black, Grey
Power consumption (typical)
- MG20XU audio mixer 20 channels Black:36 W
- TF5 audio mixer 48 channels 20:120 W
Width
- MG20XU audio mixer 20 channels Black:444 mm
- TF5 audio mixer 48 channels 20:866 mm
Depth
- MG20XU audio mixer 20 channels Black:500 mm
- TF5 audio mixer 48 channels 20:599 mm
Height
- MG20XU audio mixer 20 channels Black:130 mm
- TF5 audio mixer 48 channels 20:225 mm

Side by side

Differences highlightedShow differences only

Comparison of MG20XU, TF5
25 specifications	A Yamaha MG20XU audio mixer 20 channels Black Model MG20XU View product	B Yamaha TF5 audio mixer 48 channels 20 Model TF5 View product
Audio2 differ
Channels quantityDiffers	20 channels	48 channels
Supported sample ratesKnown for one	Unknown — not stated by the source	48 kHz
Sample rateKnown for one	Unknown — not stated by the source	48 kHz
Frequency rangeKnown for one	Unknown — not stated by the source	20 - 20000 Hz
Crosstalk (1kHz)Differs	-78 dB	-100 dB
Digital sound processingKnown for one	24 bit	Unknown — not stated by the source
Inputsidentical
Line-in maximum inputKnown for one	Unknown — not stated by the source	-128 dBV
Input impedanceKnown for one	Unknown — not stated by the source	600 Ω
Displayidentical
Built-in display	No	No
Equalizeridentical
EqualizerKnown for one	Unknown — not stated by the source	Yes
Ports & interfacesidentical
Omni outKnown for one	Unknown — not stated by the source	1
Technical details2 differ
DJ mixerDiffers	No	Yes
Rack mountingKnown for one	Unknown — not stated by the source	Yes
BacklightKnown for one	Unknown — not stated by the source	Yes
Product colourDiffers	Black	Black, Grey
Video capability	No	No
Power1 differ
Power consumption (typical)Differs	36 W	120 W
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Phantom powerKnown for one	48 V	Unknown — not stated by the source
Weight & dimensions4 differ
WidthDiffers	444 mm	866 mm
DepthDiffers	500 mm	599 mm
HeightDiffers	130 mm	225 mm
WeightDiffers	7.1 kg	20 kg
Outputsidentical
Total Harmonic Distortion (THD)Known for one	0.03%	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
