Product comparison · 2 audio mixers

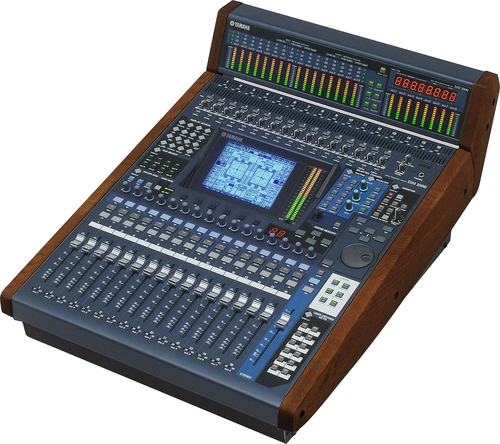

Yamaha DM1000VCM audio mixer 48 channels 20 vs Yamaha MG10XUF audio mixer 10 channels

10specifications compared
8differ
2identical
16known for one product only

Key differences

Channels quantity
- DM1000VCM audio mixer 48 channels 20:48 channels
- MG10XUF audio mixer 10 channels:10 channels
Crosstalk (1kHz)
- DM1000VCM audio mixer 48 channels 20:-80 dB
- MG10XUF audio mixer 10 channels:-83 dB
Number of microphone inputs
- DM1000VCM audio mixer 48 channels 20:16
- MG10XUF audio mixer 10 channels:4
Power consumption (typical)
- DM1000VCM audio mixer 48 channels 20:135 W
- MG10XUF audio mixer 10 channels:22.9 W
Width
- DM1000VCM audio mixer 48 channels 20:436 mm
- MG10XUF audio mixer 10 channels:275 mm
Depth
- DM1000VCM audio mixer 48 channels 20:585 mm
- MG10XUF audio mixer 10 channels:390 mm
Height
- DM1000VCM audio mixer 48 channels 20:200 mm
- MG10XUF audio mixer 10 channels:110 mm
Weight
- DM1000VCM audio mixer 48 channels 20:20 kg
- MG10XUF audio mixer 10 channels:3.3 kg

Side by side

Differences highlightedShow differences only

Comparison of DM1000VCM, MG10XUF
26 specifications	A Yamaha DM1000VCM audio mixer 48 channels 20 Model DM1000VCM View product	B Yamaha MG10XUF audio mixer 10 channels Model MG10XUF View product
Audio2 differ
Channels quantityDiffers	48 channels	10 channels
Audio D/A Converter (DAC)Known for one	Yes	Unknown — not stated by the source
Frequency rangeKnown for one	20 - 40000 Hz	Unknown — not stated by the source
Crosstalk (1kHz)Differs	-80 dB	-83 dB
Digital sound processingKnown for one	32 bit	Unknown — not stated by the source
Outputsidentical
Total Harmonic Distortion (THD)Known for one	0.05%	Unknown — not stated by the source
Ports & interfaces1 differ
MIDI inKnown for one	Yes	Unknown — not stated by the source
MIDI outKnown for one	Yes	Unknown — not stated by the source
Microphone in	Yes	Yes
Number of microphone inputsDiffers	16	4
USB 2.0 ports quantityKnown for one	1	Unknown — not stated by the source
AUX inKnown for one	Unknown — not stated by the source	Yes
Monitor outKnown for one	Unknown — not stated by the source	1
Technical detailsidentical
On/off switchKnown for one	Yes	Unknown — not stated by the source
USB portKnown for one	Yes	Unknown — not stated by the source
DJ mixerKnown for one	Unknown — not stated by the source	Yes
Power1 differ
Power consumption (typical)Differs	135 W	22.9 W
AC input frequency	50 - 60 Hz	50 - 60 Hz
AC input voltageKnown for one	Unknown — not stated by the source	120-240 V
Phantom powerKnown for one	Unknown — not stated by the source	48 V
Weight & dimensions4 differ
WidthDiffers	436 mm	275 mm
DepthDiffers	585 mm	390 mm
HeightDiffers	200 mm	110 mm
WeightDiffers	20 kg	3.3 kg
Packaging contentidentical
ManualKnown for one	Yes	Unknown — not stated by the source
AC adapter includedKnown for one	Yes	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
