Product comparison · 2 all-in-one pcs/workstations

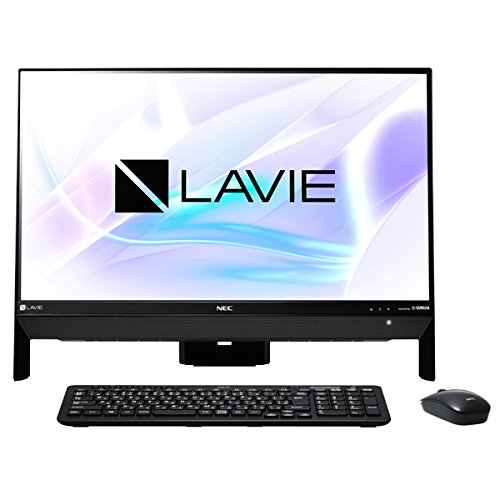

NEC LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U vs NEC LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U

119specifications compared
30differ
89identical
43known for one product only

Key differences

Processor family
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:Intel® Celeron®
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:Intel® Core™ i7
Processor model
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:3865U
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:i7-8550U
Processor cores
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:2
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:4
Processor threads
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:2
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:8
Processor cache
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:2 MB
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:8 MB
Maximum number of PCI Express lanes
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:10
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:12
PCI Express slots version
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:2.0
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:3.0
Processor codename
- LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U:Kaby Lake
- LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U:Kaby Lake R

Side by side

Differences highlightedShow differences only

Comparison of PC-DA370KAB, PC-DA770KAW
162 specifications	A NEC LaVie Desk All-in-one PC-DA370KAB All-in-One PC/workstation Intel® Celeron® 3865U Model PC-DA370KAB View product	B NEC LAVIE Direct DA(H) PC-DA770KAW All-in-One PC/workstation Intel® Core™ i7 i7-8550U Model PC-DA770KAW View product
Displayidentical
Display diagonal	60.5 cm (23.8")	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels	1920 x 1080 pixels
Touchscreen	No	No
HD type	Full HD	Full HD
LED backlight	Yes	Yes
Native aspect ratioKnown for one	Unknown — not stated by the source	16:9
Panel typeKnown for one	Unknown — not stated by the source	IPS
Display number of coloursKnown for one	Unknown — not stated by the source	16.78 million colours
Screen shape	Flat	Flat
Display surfaceKnown for one	Gloss	Unknown — not stated by the source
Processor10 differ
Processor manufacturer	Intel	Intel
Processor familyDiffers	Intel® Celeron®	Intel® Core™ i7
Processor generationKnown for one	Unknown — not stated by the source	8th gen Intel® Core™ i7
Processor modelDiffers	3865U	i7-8550U
Processor coresDiffers	2	4
Processor threadsDiffers	2	8
Processor boost frequencyKnown for one	Unknown — not stated by the source	4 GHz
Processor frequency	1.8 GHz	1.8 GHz
Processor cacheDiffers	2 MB	8 MB
Processor socketKnown for one	Unknown — not stated by the source	BGA 1356
System bus rate	4 GT/s	4 GT/s
Thermal Design Power (TDP)	15 W	15 W
Configurable TDP-up frequencyKnown for one	Unknown — not stated by the source	2 GHz
Configurable TDP-upKnown for one	Unknown — not stated by the source	25 W
Configurable TDP-down frequencyKnown for one	Unknown — not stated by the source	0.8 GHz
Configurable TDP-down	10 W	10 W
Bus type	OPI	OPI
Maximum number of PCI Express lanesDiffers	10	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots versionDiffers	2.0	3.0
Processor codenameDiffers	Kaby Lake	Kaby Lake R
Processor lithography	14 nm	14 nm
Processor operating modes	64-bit	64-bit
SteppingKnown for one	Unknown — not stated by the source	Y0
Tjunction	100 °C	100 °C
Conflict-Free processor	Yes	Yes
Maximum internal memory supported by processor	32 GB	32 GB
Memory types supported by processorDiffers	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM	DDR4-SDRAM
Memory clock speeds supported by processorDiffers	1600,1866,2133 MHz	2133,2400 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s	34.1 GB/s
Memory channels supported by processor	Dual	Dual
ECC supported by processor	No	No
Processor cache typeKnown for one	Smart Cache	Unknown — not stated by the source
Memory1 differ
Internal memoryDiffers	4 GB	8 GB
Internal memory type	DDR4-SDRAM	DDR4-SDRAM
Maximum internal memory	32 GB	32 GB
Memory slots	2	2
Memory slots type	SO-DIMM	SO-DIMM
Memory layout (slots x size)Known for one	Unknown — not stated by the source	2 x 4 GB
Storage4 differ
Total storage capacityDiffers	1 TB	3 TB
Storage media	HDD	HDD
Number of storage drives installed	1	1
Number of HDDs installed	1	1
HDD speedDiffers	7200 RPM	5400 RPM
Optical drive typeDiffers	DVD Super Multi	DVD Super Multi DL
Card reader integrated	Yes	Yes
Compatible memory cardsDiffers	SD, SDHC, SDXC	SDHC, SDXC
HDD capacityKnown for one	1 TB	Unknown — not stated by the source
HDD interfaceKnown for one	SATA	Unknown — not stated by the source
Graphics3 differ
Discrete graphics card	No	No
Discrete graphics card model	Not available	Not available
On-board graphics card	Yes	Yes
On-board graphics card familyKnown for one	Unknown — not stated by the source	Intel® UHD Graphics
On-board graphics card modelDiffers	Intel® HD Graphics 610	Intel® UHD Graphics 620
On-board graphics card memoryKnown for one	Unknown — not stated by the source	4 GB
Maximum on-board graphics card memory	32 GB	32 GB
Number of displays supported (on-board graphics)	3	3
On-board graphics card base frequency	300 MHz	300 MHz
On-board graphics card dynamic frequency (max)Differs	900 MHz	1150 MHz
On-board graphics card DirectX version	12.0	12.0
On-board graphics card IDDiffers	0x5906	0x5917
On-board graphics card OpenGL version	4.4	4.4
Audio1 differ
Built-in speaker(s)	Yes	Yes
Number of speakers	2	2
RMS rated powerDiffers	6 W	3 W
Built-in microphoneKnown for one	Unknown — not stated by the source	Yes
Built-in subwooferKnown for one	Unknown — not stated by the source	Yes
Cameraidentical
Built-in camera	Yes	Yes
Camera HD typeKnown for one	Unknown — not stated by the source	HD
Total megapixelsKnown for one	0.9 MP	Unknown — not stated by the source
Networkidentical
Wi-Fi	Yes	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Bluetooth	Yes	Yes
Bluetooth version	4.1	4.1
Ports & interfaces1 differ
Ethernet LAN (RJ-45) ports	1	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantityDiffers	0	2
Headphone outputs	1	1
Combo headphone/mic portKnown for one	Unknown — not stated by the source	Yes
USB 2.0 ports quantityKnown for one	2	Unknown — not stated by the source
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantityKnown for one	0	Unknown — not stated by the source
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantityKnown for one	0	Unknown — not stated by the source
Thunderbolt 3 ports quantityKnown for one	0	Unknown — not stated by the source
Thunderbolt ports quantityKnown for one	0	Unknown — not stated by the source
HDMI ports quantityKnown for one	0	Unknown — not stated by the source
Microphone inKnown for one	Yes	Unknown — not stated by the source
Design1 differ
Product colourDiffers	Black	Silver, White
On/off buttonKnown for one	Unknown — not stated by the source	Yes
Performance1 differ
Product typeDiffers	All-in-One PC	All-in-One workstation
Market positioningKnown for one	Unknown — not stated by the source	High performance
Softwareidentical
Operating system installed	Windows 10 Home	Windows 10 Home
Operating system architecture	64-bit	64-bit
Processor special features4 differ
CPU configuration (max)	1	1
Embedded options available	No	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video Technology	Yes	Yes
Intel Enhanced Halt State	Yes	Yes
Intel Flex Memory Access	Yes	Yes
Intel Identity Protection Technology versionKnown for one	Unknown — not stated by the source	1.00
Intel Secure Key Technology version	1.00	1.00
Intel Smart Response Technology version	1.00	1.00
Intel Software Guard Extensions (Intel SGX)	Yes	Yes
Intel TSX-NI	No	No
Intel TSX-NI version	0.00	0.00
Intel Trusted Execution Technology	No	No
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Differs	No	Yes
Intel® Identity Protection Technology (Intel® IPT)Known for one	Unknown — not stated by the source	Yes
Intel® InTru™ 3D TechnologyKnown for one	Unknown — not stated by the source	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes	Yes
Intel® OS Guard	Yes	Yes
Intel® Quick Sync Video Technology	Yes	Yes
Intel® Secure Key	Yes	Yes
Intel® Smart Response Technology	Yes	Yes
Intel® Turbo Boost TechnologyDiffers	No	2.0
Processor ARK IDDiffers	96507	122589
Processor package size	42 x 24 mm	42 x 24 mm
Supported instruction setsDiffers	SSE4.1, SSE4.2	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes	Yes
Intel Stable Image Platform Program (SIPP)Known for one	No	Unknown — not stated by the source
Intel Stable Image Platform Program (SIPP) versionKnown for one	0.00	Unknown — not stated by the source
Power1 differ
AC adapter powerDiffers	65 W	90 W
AC adapter frequency	50/60 Hz	50/60 Hz
AC adapter input voltage	100 - 240 V	100 - 240 V
Penidentical
Pen included	No	No
Weight & dimensions3 differ
Width (with stand)	543 mm	543 mm
Depth (with stand)Differs	165 mm	194 mm
Height (with stand)Differs	433 mm	452 mm
Weight (with stand)Differs	8.1 kg	8.8 kg
Keyboard dimensions (WxDxH)Known for one	Unknown — not stated by the source	386 x 146 x 27.2 mm
Operational conditionsidentical
Operating temperature (T-T)	10 - 35 °C	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%	20 - 80%
Certificatesidentical
Certification	VCCI Class B	VCCI Class B
Packaging contentidentical
Mouse included	Yes	Yes
Keyboard included	Yes	Yes
AC adapter includedKnown for one	Unknown — not stated by the source	Yes
Remote control includedKnown for one	Unknown — not stated by the source	Yes
ManualKnown for one	Unknown — not stated by the source	Yes
Other featuresidentical
3D	No	No
TV tuner integratedKnown for one	Unknown — not stated by the source	Yes
Autonomy modeKnown for one	No	Unknown — not stated by the source
Detachable displayKnown for one	No	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
