Product comparison · 2 all-in-one pcs/workstations

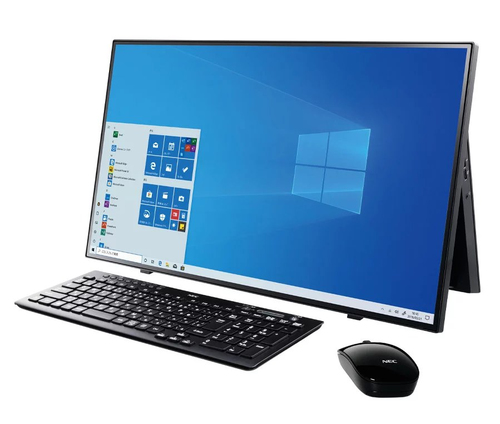

NEC LaVie Desk All-in-one PC-A2797BAB All-in-One PC/workstation Intel® Core™ i7 i7-10510U vs NEC LaVie Desk All-in-one PC-A2797BAW All-in-One PC/workstation Intel® Core™ i7 i7-10510U

91specifications compared
1differ
90identical
0known for one product only

Key differences

Product colour
- LaVie Desk All-in-one PC-A2797BAB All-in-One PC/workstation Intel® Core™ i7 i7-10510U:Black
- LaVie Desk All-in-one PC-A2797BAW All-in-One PC/workstation Intel® Core™ i7 i7-10510U:White

Side by side

Differences highlightedShow differences only

Comparison of PC-A2797BAB, PC-A2797BAW
91 specifications	A NEC LaVie Desk All-in-one PC-A2797BAB All-in-One PC/workstation Intel® Core™ i7 i7-10510U Model PC-A2797BAB View product	B NEC LaVie Desk All-in-one PC-A2797BAW All-in-One PC/workstation Intel® Core™ i7 i7-10510U Model PC-A2797BAW View product
Displayidentical
Display diagonal	68.6 cm (27")	68.6 cm (27")
Display resolution	1900 x 1080 pixels	1900 x 1080 pixels
Touchscreen	No	No
HD type	Full HD	Full HD
Panel type	IPS	IPS
Processoridentical
Processor manufacturer	Intel	Intel
Processor family	Intel® Core™ i7	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7	10th gen Intel® Core™ i7
Processor model	i7-10510U	i7-10510U
Processor cores	4	4
Processor boost frequency	4.9 GHz	4.9 GHz
Processor frequency	1.8 GHz	1.8 GHz
Processor cache	8 MB	8 MB
Configurable TDP-up frequency	2.3 GHz	2.3 GHz
Configurable TDP-up	25 W	25 W
Configurable TDP-down frequency	0.8 GHz	0.8 GHz
Configurable TDP-down	10 W	10 W
Memoryidentical
Internal memory	16 GB	16 GB
Internal memory type	DDR4-SDRAM	DDR4-SDRAM
Maximum internal memory	32 GB	32 GB
Memory slots type	SO-DIMM	SO-DIMM
Memory layout (slots x size)	2 x 8 GB	2 x 8 GB
Storageidentical
Total storage capacity	4.25 TB	4.25 TB
Storage media	HDD+SSD	HDD+SSD
Total HDDs capacity	4 TB	4 TB
Number of HDDs installed	1	1
HDD capacity	4 TB	4 TB
HDD speed	5400 RPM	5400 RPM
HDD interface	SATA	SATA
Total SSDs capacity	256 GB	256 GB
Number of SSDs installed	1	1
SSD capacity	256 GB	256 GB
SSD interface	PCI Express	PCI Express
Optical drive type	DVD Super Multi	DVD Super Multi
Card reader integrated	Yes	Yes
Compatible memory cards	SD, SDHC, SDXC	SD, SDHC, SDXC
Graphicsidentical
Discrete graphics card	No	No
Discrete graphics card model	Not available	Not available
On-board graphics card	Yes	Yes
On-board graphics card model	Intel® UHD Graphics	Intel® UHD Graphics
Audioidentical
Built-in speaker(s)	Yes	Yes
Number of speakers	2	2
Speakers manufacturer	YAMAHA	YAMAHA
Built-in microphone	Yes	Yes
Cameraidentical
Built-in camera	Yes	Yes
Camera HD type	HD	HD
Networkidentical
Wi-Fi	Yes	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s	10,1000,100 Mbit/s
Bluetooth	Yes	Yes
Bluetooth version	5.0	5.0
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	1	1
USB 2.0 ports quantity	0	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0	0
USB4 Gen 3x2 ports quantity	0	0
HDMI ports quantity	1	1
Combo headphone/mic port	Yes	Yes
Design1 differ
Product colourDiffers	Black	White
Performanceidentical
Product type	All-in-One PC	All-in-One PC
Softwareidentical
Operating system installed	Windows 10 Home	Windows 10 Home
Operating system architecture	64-bit	64-bit
Processor special featuresidentical
CPU configuration (max)	1	1
Embedded options available	No	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video Technology	Yes	Yes
Intel Flex Memory Access	Yes	Yes
Intel Software Guard Extensions (Intel SGX)	Yes	Yes
Intel Stable Image Platform Program (SIPP)	No	No
Intel TSX-NI	No	No
Intel Trusted Execution Technology	No	No
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes	Yes
Poweridentical
AC adapter power	90 W	90 W
AC adapter frequency	50/60 Hz	50/60 Hz
AC adapter input voltage	100 - 240 V	100 - 240 V
Weight & dimensionsidentical
Width (with stand)	615.4 mm	615.4 mm
Depth (with stand)	186.3 mm	186.3 mm
Height (with stand)	361.1 mm	361.1 mm
Weight (with stand)	10.7 kg	10.7 kg
Operational conditionsidentical
Operating temperature (T-T)	10 - 35 °C	10 - 35 °C
Packaging contentidentical
Mouse included	Yes	Yes
Keyboard included	Yes	Yes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
