Product comparison · 2 all-in-one pcs/workstations

Haier DS ONE 27 vs Haier Aphro T8-B370D Intel® Core™ i3 i3-7100

103specifications compared
32differ
71identical
28known for one product only

Key differences

Display diagonal
- DS ONE 27:68.6 cm (27")
- Aphro T8-B370D Intel® Core™ i3 i3-7100:58.4 cm (23")
Display resolution
- DS ONE 27:2560 x 1440 pixels
- Aphro T8-B370D Intel® Core™ i3 i3-7100:1920 x 1080 pixels
HD type
- DS ONE 27:Quad HD
- Aphro T8-B370D Intel® Core™ i3 i3-7100:Full HD
Processor family
- DS ONE 27:Intel® Core™ i5
- Aphro T8-B370D Intel® Core™ i3 i3-7100:Intel® Core™ i3
Processor generation
- DS ONE 27:6th gen Intel® Core™ i5
- Aphro T8-B370D Intel® Core™ i3 i3-7100:7th gen Intel® Core™ i3
Processor model
- DS ONE 27:i5-6400
- Aphro T8-B370D Intel® Core™ i3 i3-7100:i3-7100
Processor cores
- DS ONE 27:4
- Aphro T8-B370D Intel® Core™ i3 i3-7100:2
Processor frequency
- DS ONE 27:2.7 GHz
- Aphro T8-B370D Intel® Core™ i3 i3-7100:3.9 GHz

Side by side

Differences highlightedShow differences only

Comparison of DS ONE 27, T8-B370D

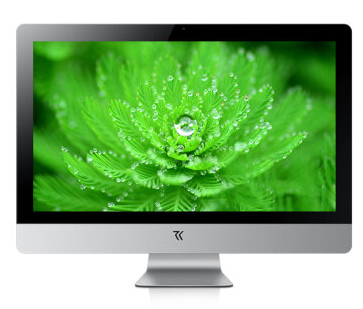

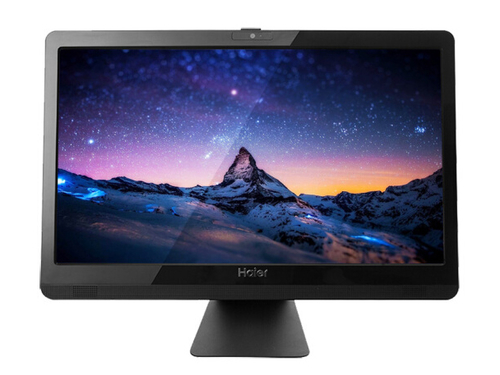

131 specifications	A Haier DS ONE 27 View product	B Haier Aphro T8-B370D Intel® Core™ i3 i3-7100 Model T8-B370D View product
Display3 differ
Display diagonalDiffers	68.6 cm (27")	58.4 cm (23")
Display resolutionDiffers	2560 x 1440 pixels	1920 x 1080 pixels
Touchscreen	No	No
HD typeDiffers	Quad HD	Full HD
LED backlight	Yes	Yes
Native aspect ratio	16:9	16:9
Screen shape	Flat	Flat
Processor12 differ
Processor manufacturer	Intel	Intel
Processor familyDiffers	Intel® Core™ i5	Intel® Core™ i3
Processor generationDiffers	6th gen Intel® Core™ i5	7th gen Intel® Core™ i3
Processor modelDiffers	i5-6400	i3-7100
Processor coresDiffers	4	2
Processor threads	4	4
Processor boost frequencyKnown for one	3.3 GHz	Unknown — not stated by the source
Processor frequencyDiffers	2.7 GHz	3.9 GHz
Processor cacheDiffers	6 MB	3 MB
Processor cache type	Smart Cache	Smart Cache
Processor socket	LGA 1151 (Socket H4)	LGA 1151 (Socket H4)
System bus rate	8 GT/s	8 GT/s
Thermal Design Power (TDP)Differs	65 W	51 W
Bus type	DMI3	DMI3
Maximum number of PCI Express lanes	16	16
PCI Express configurationsDiffers	1x16, 2x8, 1x8+2x4	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0	3.0
Processor codeDiffers	SR2BY	SR35C
Processor codenameDiffers	Skylake	Kaby Lake
Processor lithography	14 nm	14 nm
Processor operating modes	64-bit	64-bit
Processor seriesKnown for one	Intel Core i5-6400 Desktop series	Unknown — not stated by the source
SteppingDiffers	R0	S0
TcaseKnown for one	71 °C	Unknown — not stated by the source
Conflict-Free processor	Yes	Yes
Maximum internal memory supported by processor	64 GB	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processorDiffers	2133,1333,1600,1866 MHz	1333,1600,2133,2400 MHz
Memory bandwidth supported by processor (max)Known for one	34.1 GB/s	Unknown — not stated by the source
Memory channels supported by processor	Dual	Dual
ECC supported by processor	No	No
Memory voltage supported by processorKnown for one	1.35 V	Unknown — not stated by the source
TjunctionKnown for one	Unknown — not stated by the source	100 °C
Memory2 differ
Internal memoryDiffers	16 GB	4 GB
Internal memory type	DDR4-SDRAM	DDR4-SDRAM
Maximum internal memoryDiffers	16 GB	32 GB
Memory clock speedKnown for one	2133 MHz	Unknown — not stated by the source
Memory slotsKnown for one	Unknown — not stated by the source	2
Storage2 differ
Total storage capacityDiffers	628 GB	500 GB
Storage mediaDiffers	HDD+SSD	HDD
Number of HDDs installedKnown for one	1	Unknown — not stated by the source
HDD capacityKnown for one	500 GB	Unknown — not stated by the source
Number of SSDs installedKnown for one	1	Unknown — not stated by the source
SSD capacityKnown for one	128 GB	Unknown — not stated by the source
Optical drive type	No	No
Card reader integratedKnown for one	Unknown — not stated by the source	Yes
Graphics3 differ
Discrete graphics card model	Not available	Not available
On-board graphics card	Yes	Yes
On-board graphics card familyKnown for one	Intel® HD Graphics	Unknown — not stated by the source
On-board graphics card modelDiffers	Intel® HD Graphics 530	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB	64 GB
Number of displays supported (on-board graphics)	3	3
On-board graphics card base frequency	350 MHz	350 MHz
On-board graphics card dynamic frequency (max)Differs	950 MHz	1100 MHz
On-board graphics card DirectX version	12.0	12.0
On-board graphics card IDDiffers	1912	0x5912
On-board graphics card OpenGL version	4.4	4.4
Discrete graphics cardKnown for one	Unknown — not stated by the source	No
Networkidentical
Ethernet LAN	Yes	Yes
Wi-FiKnown for one	Unknown — not stated by the source	Yes
Ports & interfaces2 differ
Ethernet LAN (RJ-45) portsDiffers	1	2
USB 2.0 ports quantityDiffers	0	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0	0
Thunderbolt 3 ports quantity	0	0
Thunderbolt ports quantity	0	0
HDMI ports quantity	1	1
VGA (D-Sub) ports quantity	0	0
Headphone outputs	1	1
Microphone in	Yes	Yes
DisplayPorts quantityKnown for one	Unknown — not stated by the source	1
Design1 differ
Product colourDiffers	Silver	Black
Performance1 differ
Product typeDiffers	All-in-One workstation	All-in-One PC
Softwareidentical
Operating system installed	Windows 10 Home	Windows 10 Home
Processor special features4 differ
CPU configuration (max)	1	1
Embedded options available	No	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Graphics & IMC lithographyKnown for one	14 nm	Unknown — not stated by the source
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video Technology	Yes	Yes
Intel Enhanced Halt State	Yes	Yes
Intel Identity Protection Technology version	1.00	1.00
Intel Secure Key Technology version	1.00	1.00
Intel Small Business Advantage (SBA) versionKnown for one	1.00	Unknown — not stated by the source
Intel Software Guard Extensions (Intel SGX)	Yes	Yes
Intel Stable Image Platform Program (SIPP)	No	No
Intel Stable Image Platform Program (SIPP) version	0.00	0.00
Intel TSX-NI	No	No
Intel TSX-NI version	0.00	0.00
Intel Trusted Execution Technology	No	No
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Differs	No	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes	Yes
Intel® InTru™ 3D Technology	Yes	Yes
Intel® Insider™Known for one	Yes	Unknown — not stated by the source
Intel® OS Guard	Yes	Yes
Intel® Quick Sync Video Technology	Yes	Yes
Intel® Secure Key	Yes	Yes
Intel® Smart CacheKnown for one	Yes	Unknown — not stated by the source
Intel® Turbo Boost TechnologyDiffers	2.0	No
Intel® Wireless Display (Intel® WiDi)Known for one	Yes	Unknown — not stated by the source
Processor ARK IDDiffers	88185	97455
Processor package size	37.5 x 37.5 mm	37.5 x 37.5 mm
Scalability	1S	1S
Supported instruction setsDiffers	SSE4.2, AVX 2.0, SSE4.1	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes	Yes
Thermal solution specification	PCG 2015C	PCG 2015C
Weight & dimensionsidentical
Width (with stand)Known for one	675 mm	Unknown — not stated by the source
Depth (with stand)Known for one	238 mm	Unknown — not stated by the source
Height (with stand)Known for one	523 mm	Unknown — not stated by the source
Weight (with stand)Known for one	8.9 kg	Unknown — not stated by the source
Packaging content2 differ
Mouse includedDiffers	No	Yes
Keyboard includedDiffers	No	Yes
Other featuresidentical
Autonomy modeKnown for one	Unknown — not stated by the source	No
Detachable displayKnown for one	Unknown — not stated by the source	No

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
