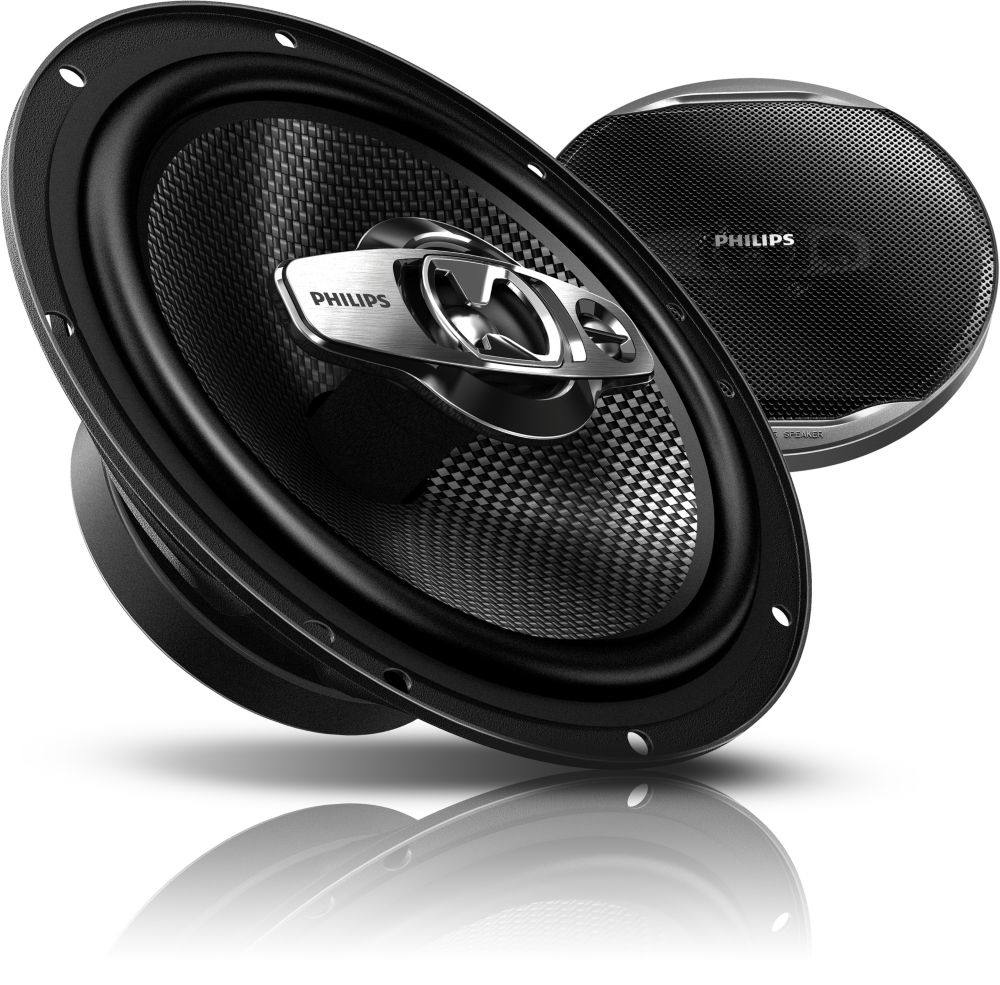

CSP620 Car entertainment system
Model CSP620/93EAN 8712581486075
28 specifications
- Power80 W
- ColourBlack
- Speaker type3-way
- ShapeRound
- Subwoofer includedYes
- Width172 mm
Overview
- Power
- 80 W
- Colour
- Black
- Speaker type
- 3-way
- Shape
- Round
- Subwoofer included
- Yes
- Width
- 172 mm
- Brand
- Philips
- Category
- Car Speakers
- Model
- CSP620/93
- Part number
- CSP620/93
- EAN / UPC
- 8712581486075
- Also known as
- Philips CSP620 Car entertainment system
Specifications
28 specifications in 6 groups
Audio
| Specification | Value |
|---|---|
| Speaker type | 3-way |
| Sensitivity | 90 dB |
| Peak power | 400 W |
| Rated power | 80 W |
| Impedance | 4 Ω |
| Frequency range | 35 - 32000 Hz |
| Tweeter | Yes |
| Tweeter magnet type | Neodymium |
| Midrange speaker magnet type | Neodymium |
Technical details
| Specification | Value |
|---|---|
| Shape | Round |
| Driver unit | 16.5 cm |
| Product colour | Black |
| Quick start guide | Yes |
| Separate components | Yes |
| Voice coil type | Single |

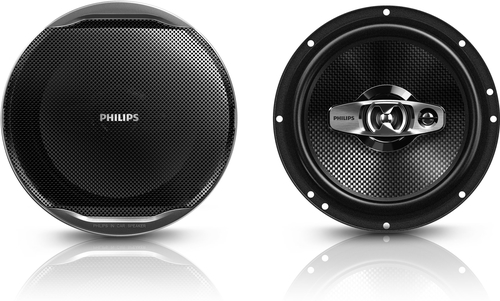

| Speaker grille | With metal net |
| Tweeter protrusion | 6.7 mm |
| Voice coil material | Copper |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Woofer magnet type | Ferrite |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172 mm |
| Depth | 172 mm |
| Height | 76 mm |
| Tweeter diameter | 1.5 cm |
| Mid-range driver diameter | 3.8 cm |
| Mounting depth | 5.8 cm |
Amplifier
| Specification | Value |
|---|---|
| Amplifier included | No |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
