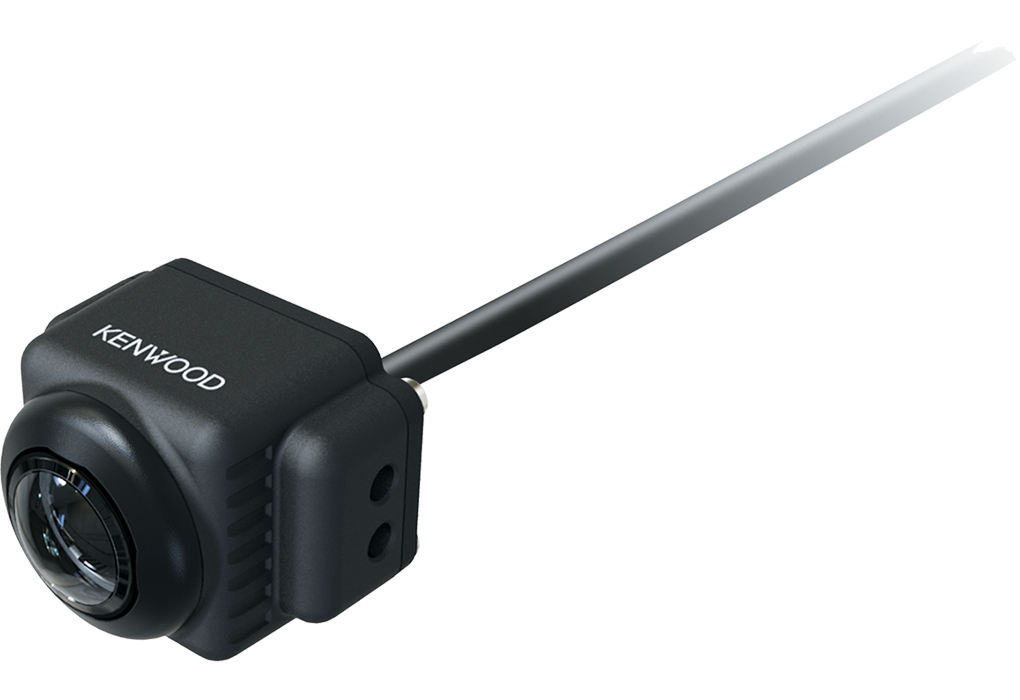

CMOS-740HD car backup camera Wired
Model CMOS-740HDEAN 019048230782
18 specifications
- ConnectivityWired
- Weight33.2 g
- International Protection (IP) codeIP67
- Display includedNo
- Power supply voltage12 V
- Operating temperature (T-T)-30 - 85 °C
Overview
- Connectivity
- Wired
- Weight
- 33.2 g
- International Protection (IP) code
- IP67
- Display included
- No
- Power supply voltage
- 12 V
- Operating temperature (T-T)
- -30 - 85 °C
- Brand
- Kenwood
- Category
- Car Backup Camera
- Model
- CMOS-740HD
- Part number
- CMOS-740HD
- EAN / UPC
- 019048230782
- Also known as
- Kenwood CMOS-740HD car backup camera Wired
Specifications
18 specifications in 6 groups
Camera
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Sensor type | CMOS |
| Image sensor size | 1/3.8" |
| Camera resolution | 1280 x 720 pixels |
| Horizontal field of view | 180° |
| Vertical field of view | 103° |
| Minimum illumination | 1 lx |
| Supported video modes | 720p |
Features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP67 |
| Cable length | 9 m |
| Compatible products | DMX9720XDS |
Display
| Specification | Value |
|---|---|
| Display included | No |
Power
| Specification | Value |
|---|---|
| Power supply voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 31.1 mm |
| Depth | 25.2 mm |
| Height | 23 mm |
| Weight | 33.2 g |
