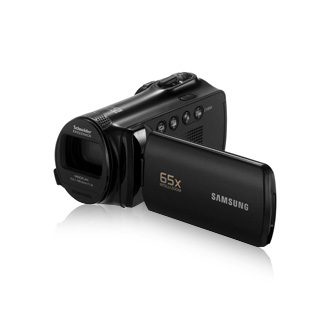

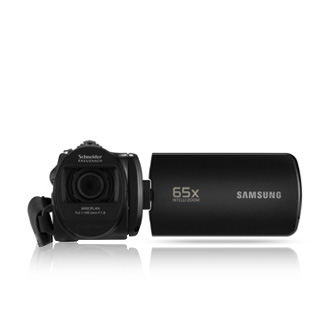

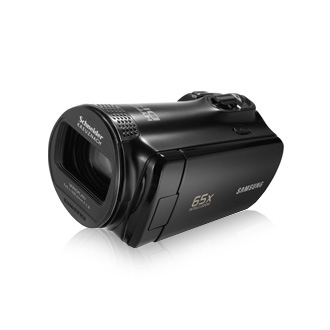

SMX-F54BN Handheld camcorder
0.8 MP CCD Black
Model SMX-F54BNPart no. SMX-F54BN/XAXEAN 8806071194721
65 specifications
- Display6.86 cm (2.7")
- Storage0 GB
- Weight219 g
- ColourBlack
- Total megapixels0.8 MP
- Optical zoom52x
Overview
- Display
- 6.86 cm (2.7")
- Storage
- 0 GB
- Weight
- 219 g
- Colour
- Black
- Total megapixels
- 0.8 MP
- Optical zoom
- 52x
- Brand
- Samsung
- Category
- Camcorder
- Model
- SMX-F54BN
- Part number
- SMX-F54BN/XAX
- EAN / UPC
- 8806071194721
- Also known as
- Samsung SMX-F54BN Handheld camcorder 0.8 MP CCD Black
Specifications
65 specifications in 17 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 0.8 MP |
| Sensor type | CCD |
| Optical sensor size | 25.4 / 6 mm (1 / 6") |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 52x |
| Digital zoom | 2200x |
| Image stabilizer | Yes |
| Interchangeable lens | No |
| Focal length range | 2.1 - 109.2 mm |
Storage
| Specification | Value |
|---|---|
| Internal storage capacity | 0 GB |
| Camcorder media type | Memory card |
| Compatible memory cards | SD, SDHC |
| Maximum memory card size | 16 GB |
| Memory slots | 1 |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
| Face detection | Yes |
White balance
| Specification | Value |
|---|---|
| White balance | Auto, Manual |
Display
| Specification | Value |
|---|---|
| Display diagonal | 6.86 cm (2.7") |
| Built-in display | Yes |
| Display | LCD |
| Display resolution (numeric) | 230000 pixels |
| Touchscreen | No |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Not available |
Camera
| Specification | Value |
|---|---|
| Camcorder type | Handheld camcorder |
| Minimum illumination | 3 lx |
| 3D | No |
| Camera playback | Movie, Single image, Slide show |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Tripod mounting supported | Yes |
Video
| Specification | Value |
|---|---|
| Maximum video resolution | 720 x 576 pixels |
| Video formats supported | H.264 |
| Analog signal format system | NTSC, PAL |
Still image
| Specification | Value |
|---|---|
| Maximum image resolution | 1600 x 1200 pixels |
| Image formats supported | JPG |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Digital 2.0 |
| PCM digital audio | 16-bit/48 kHz |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Wind filter | Yes |
| Audio dubbing | No |
| Audio formats supported | AAC |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | No |
| Component video (YPbPr/YCbCr) out | 1 |
| HDMI | No |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DC-in jack | Yes |
| Headphone outputs | 0 |
| S-Video out | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium |
| Battery life (max) | 4 h |
| Battery type | IA-BP210R |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53.9 mm |
| Depth | 119 mm |
| Height | 56.4 mm |
| Weight | 219 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Batteries included | Yes |
| Cables included | AV, USB |
| Hand strap | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Auto focus | Yes |
| Power consumption (typical) | 1.9 W |
| Compatible operating systems | Windows XP Windows Vista Windows 7 |
