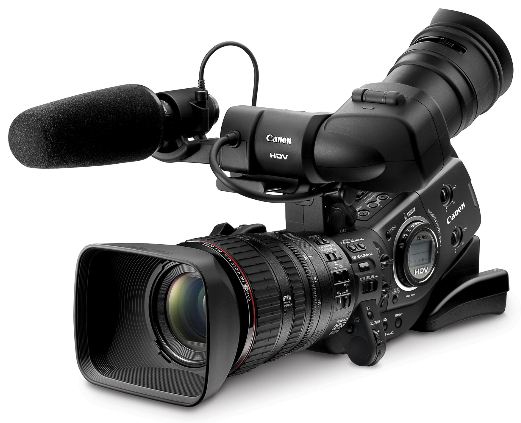

Canon XL H1S
Model XL H1SPart no. 2081B007
37 specifications
- Display6.1 cm (2.4")
- Weight2.56 kg
- ColourBlack
- Total megapixels1.56 MP
- Optical zoom20x
- Camcorder media typeMemory card
Overview
- Display
- 6.1 cm (2.4")
- Weight
- 2.56 kg
- Colour
- Black
- Total megapixels
- 1.56 MP
- Optical zoom
- 20x
- Camcorder media type
- Memory card
- Brand
- Canon
- Category
- Camcorder
- Model
- XL H1S
- Part number
- 2081B007
- Also known as
- Canon XL H1S 1.56 MP CCD Black
Specifications
37 specifications in 14 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 1.56 MP |
| Sensor type | CCD |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 20x |
| Digital zoom | 0x |
| Image stabilizer | Yes |
| Focal length range | 5.4 - 108 mm |
| Focal length (35mm film equivalent) | 38.9 - 778 mm |
| Filter size | 72 mm |
Storage
| Specification | Value |
|---|---|
| Camcorder media type | Memory card |
| Compatible memory cards | MMC, SD, SDHC |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
White balance
| Specification | Value |
|---|---|
| Indoor white balance | Yes |
| Outdoor white balance | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 6.1 cm (2.4") |
| Display | LCD |
| Display resolution (numeric) | 215000 pixels |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.4 lx |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Still image
| Specification | Value |
|---|---|
| Maximum image resolution | 1920 x 1080 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| Component video (YPbPr/YCbCr) out | 1 |
| DV port | Yes |
| Firewire (IEEE 1394) ports | 1 |
| Microphone in | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | BP-930, BP-945, BP-950G, BP-970G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 496 mm |
| Height | 220 mm |
| Weight | 2.56 kg |
Other features
| Specification | Value |
|---|---|
| Audio output | RCA |
| Auto focus | Yes |
| Dimensions (WxDxH) | 226 x 496 x 220 mm |
| Lens focal range | f/1.6 - 3.5 |
| Manual focus | Yes |
| Video out | S, BNC, HD/SD-SDI |
