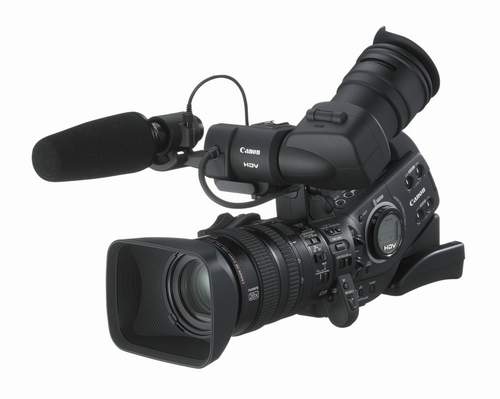

Canon XL H1
Model XL H1Part no. 0968B010
27 specifications
- Display6.1 cm (2.4")
- Weight3.75 kg
- ColourBlack
- Total megapixels1.67 MP
- Optical zoom20x
- Compatible memory cardsMMC, SD
Overview
- Display
- 6.1 cm (2.4")
- Weight
- 3.75 kg
- Colour
- Black
- Total megapixels
- 1.67 MP
- Optical zoom
- 20x
- Compatible memory cards
- MMC, SD
- Brand
- Canon
- Category
- Camcorder
- Model
- XL H1
- Part number
- 0968B010
- Also known as
- Canon XL H1 1.67 MP Black
Specifications
27 specifications in 11 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 1.67 MP |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 20x |
| Image stabilizer | Yes |
| Focal length (35mm film equivalent) | 38.9 - 778 mm |
| Filter size | 72 mm |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MMC, SD |
| Camcorder tape type | Mini-DV |
Display
| Specification | Value |
|---|---|
| Display diagonal | 6.1 cm (2.4") |
| Display | LCD |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| Maximum frame rate | 25 fps |
Ports & interfaces
| Specification | Value |
|---|---|
| DV port | Yes |
| Firewire (IEEE 1394) ports | 2 |
| Microphone in | Yes |
| S-Video in | Yes |
| S-Video out | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 5 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 496 mm |
| Height | 220 mm |
| Weight | 3.75 kg |
Other features
| Specification | Value |
|---|---|
| Focus | Auto/Manual |
| Lens system | XL interchangeable |
| Power consumption (typical) | 7.8 W |
| I/O ports | - IEEE1394 - EVF - SD in/out - S-Video - Headphone |
