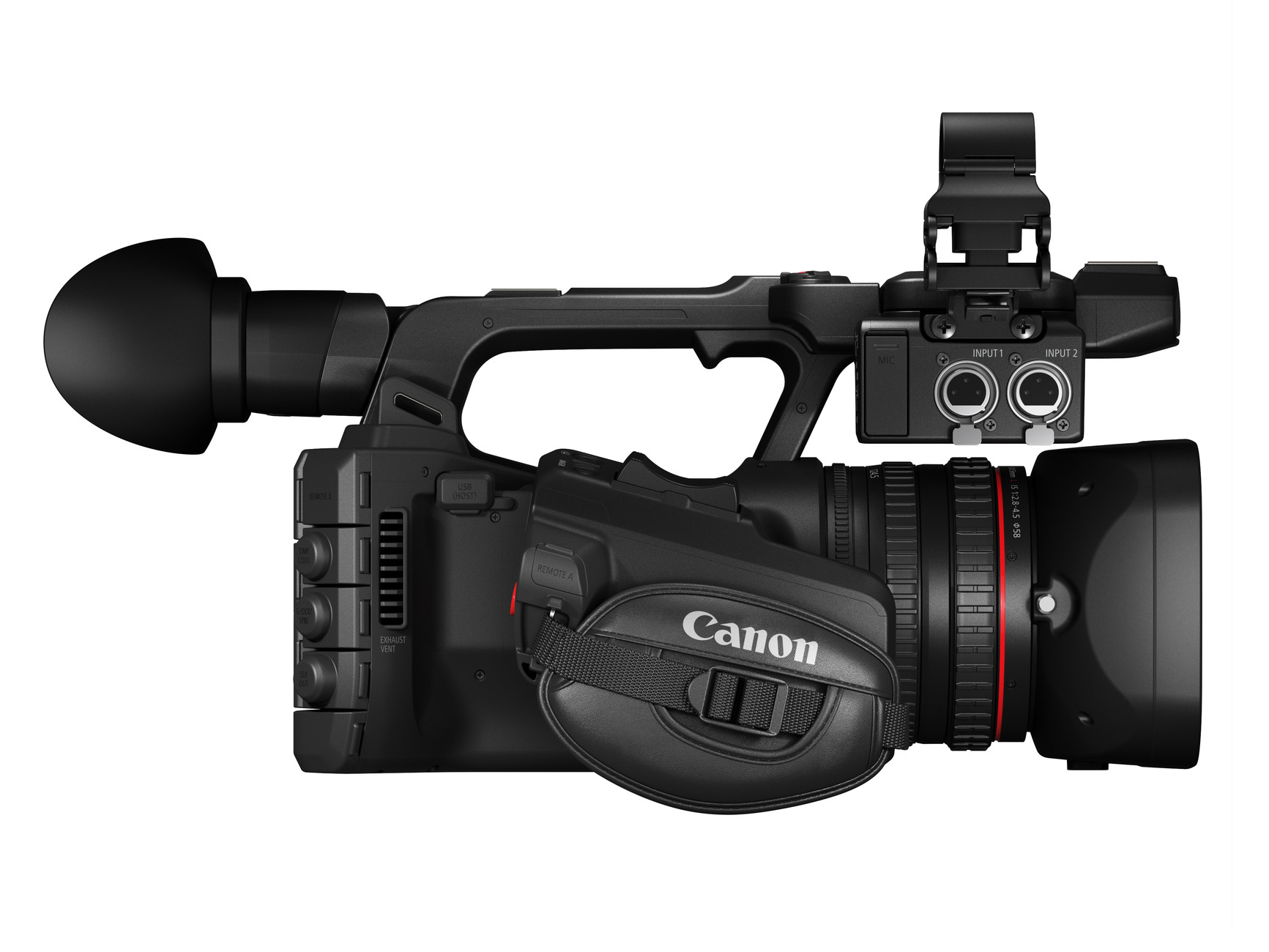

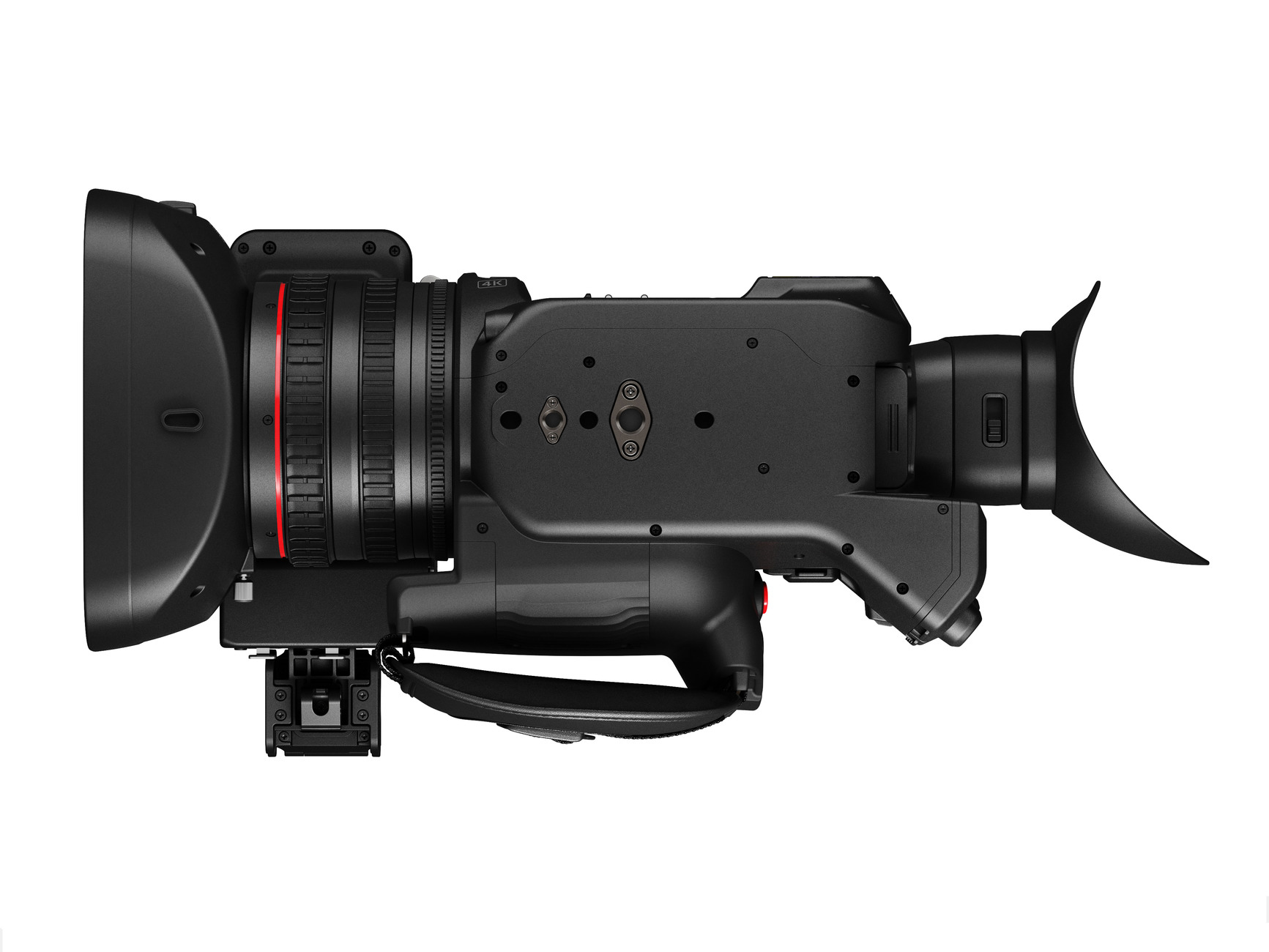

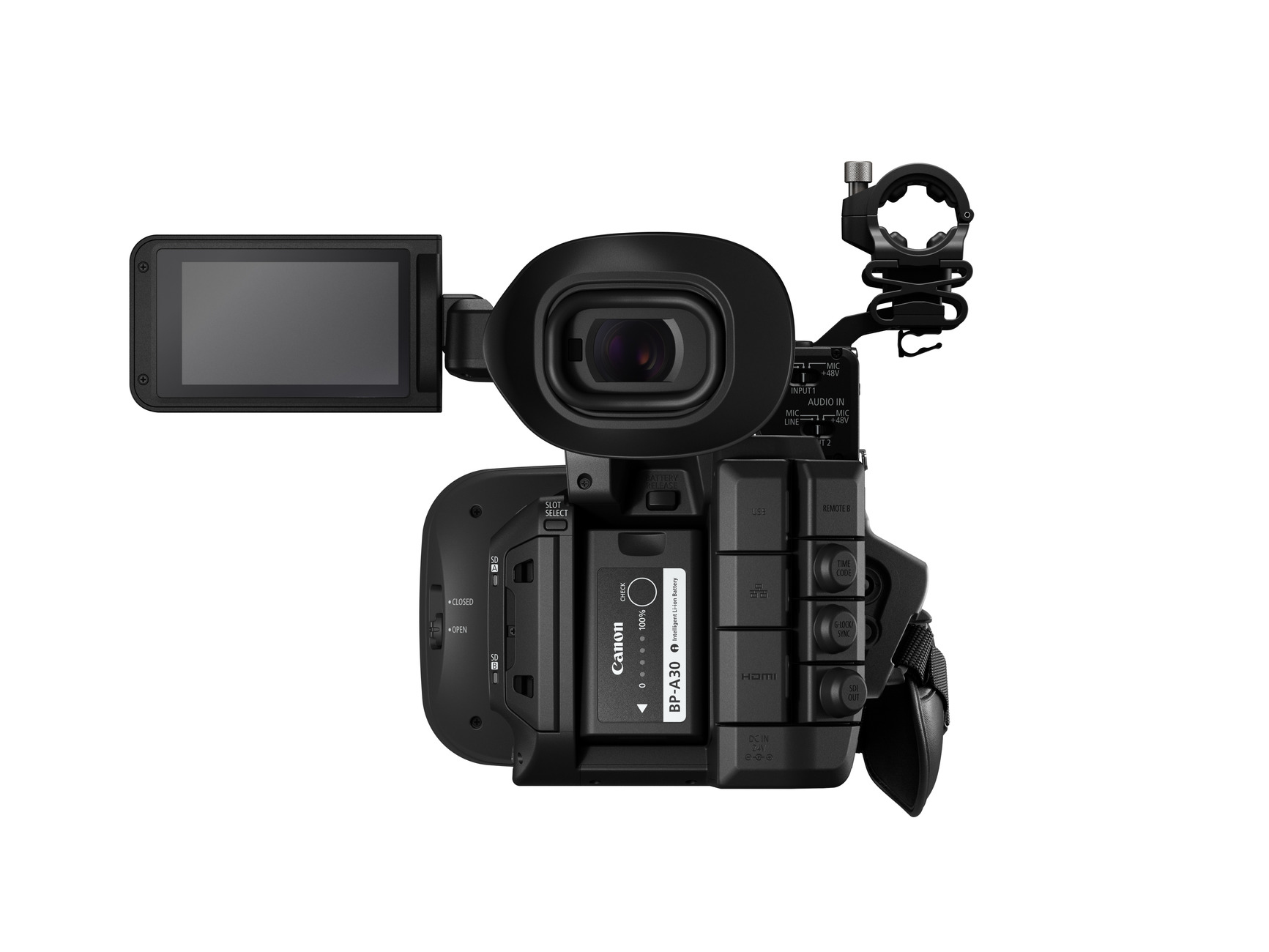

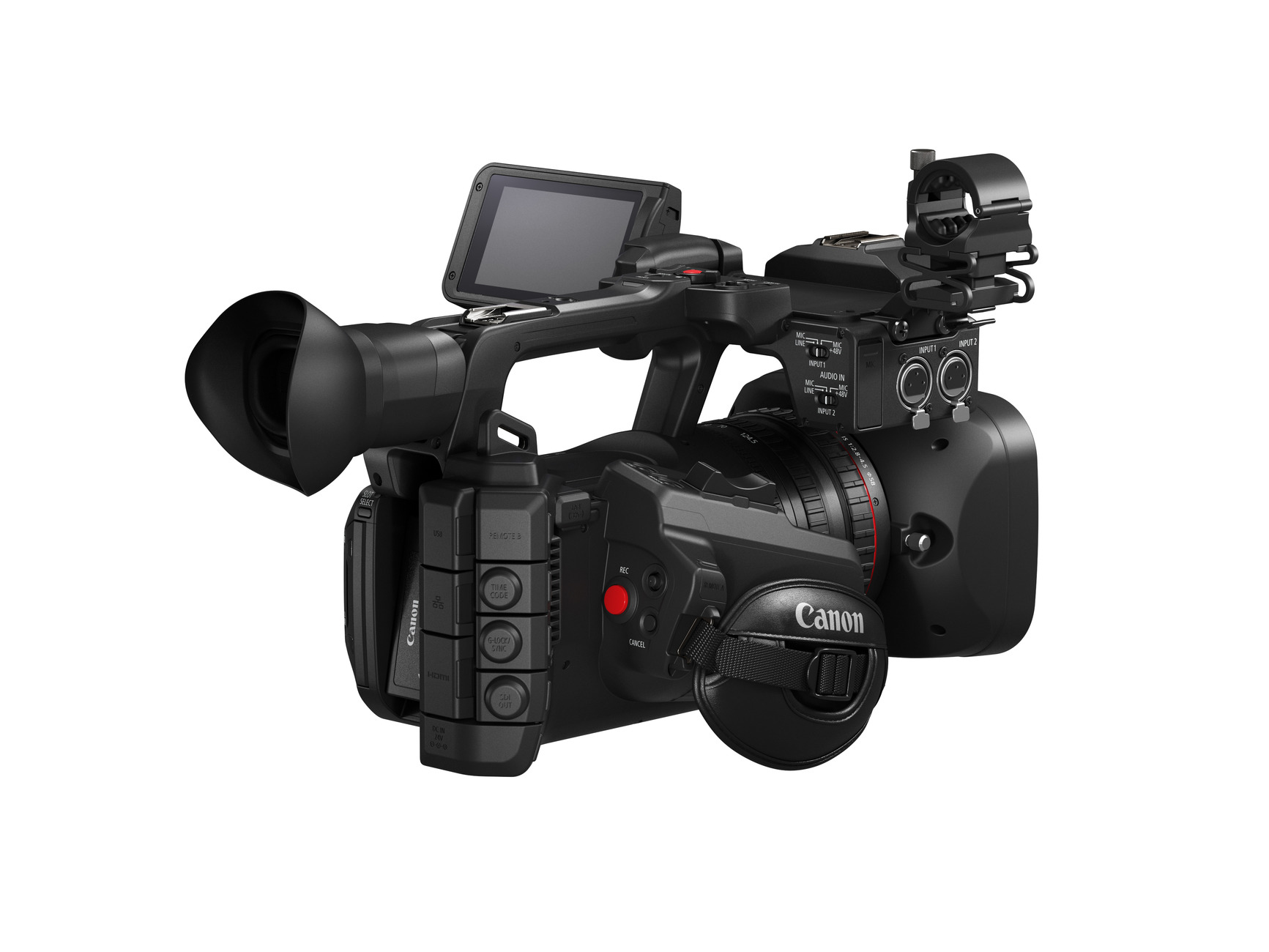

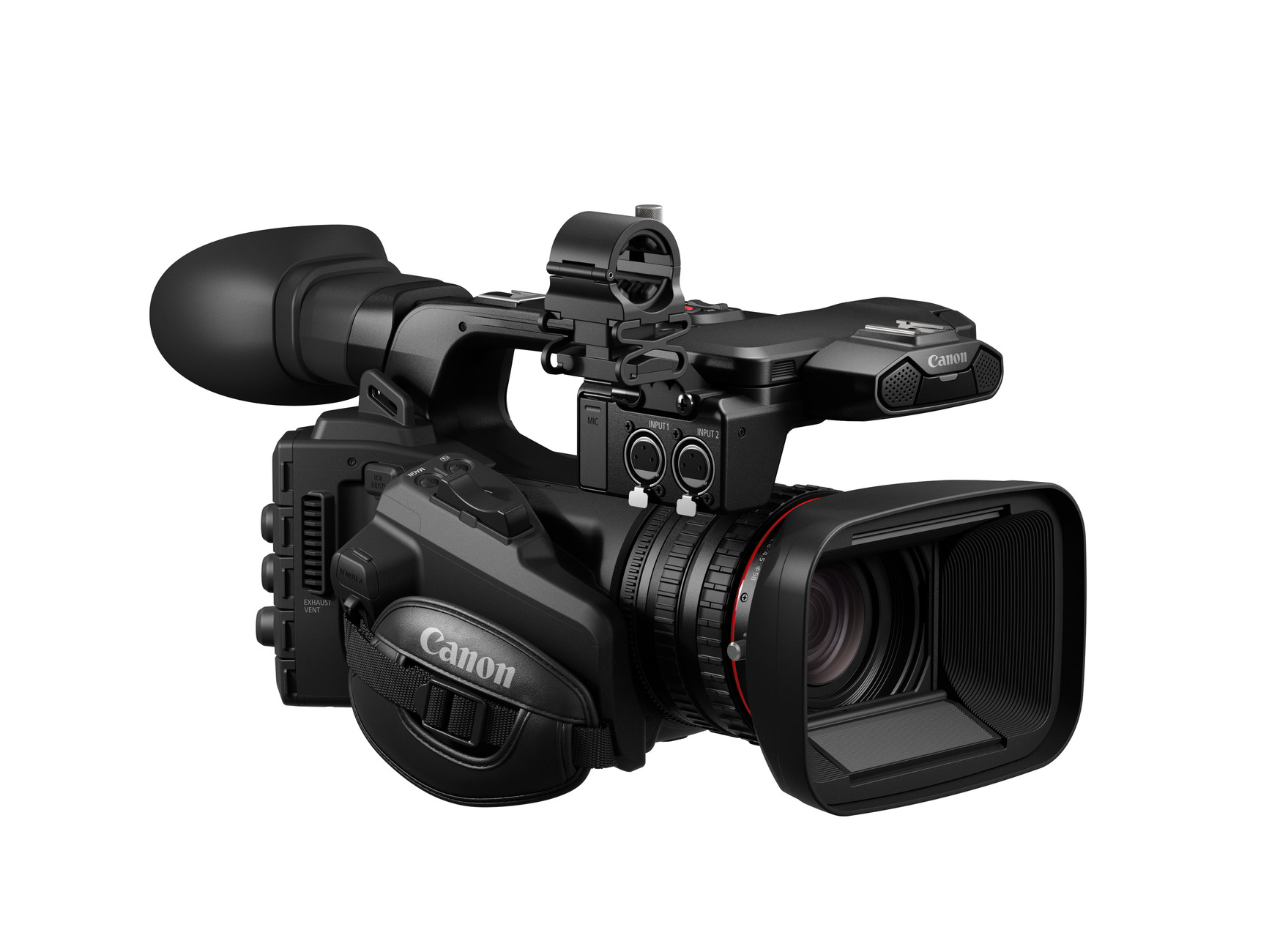

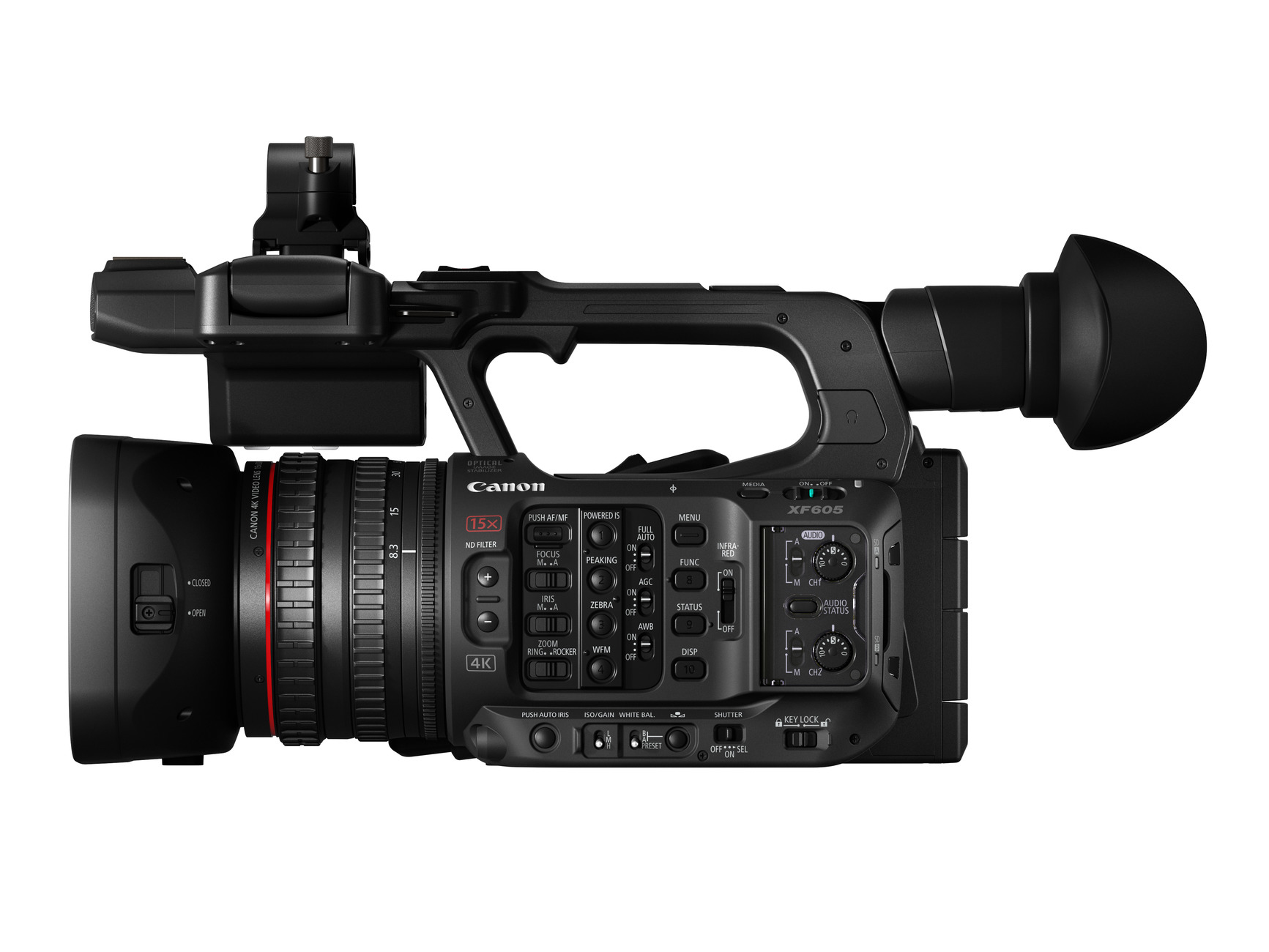

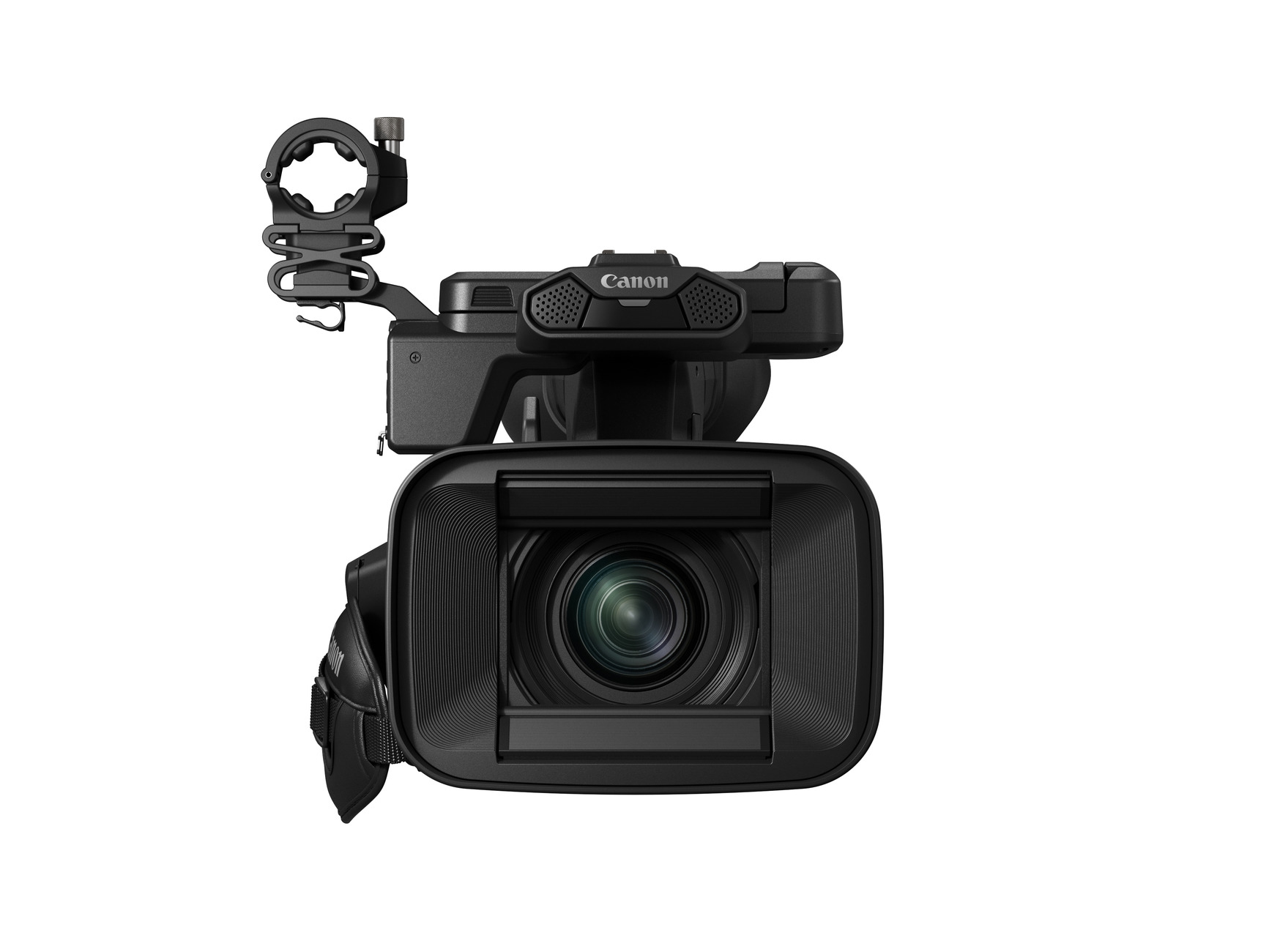

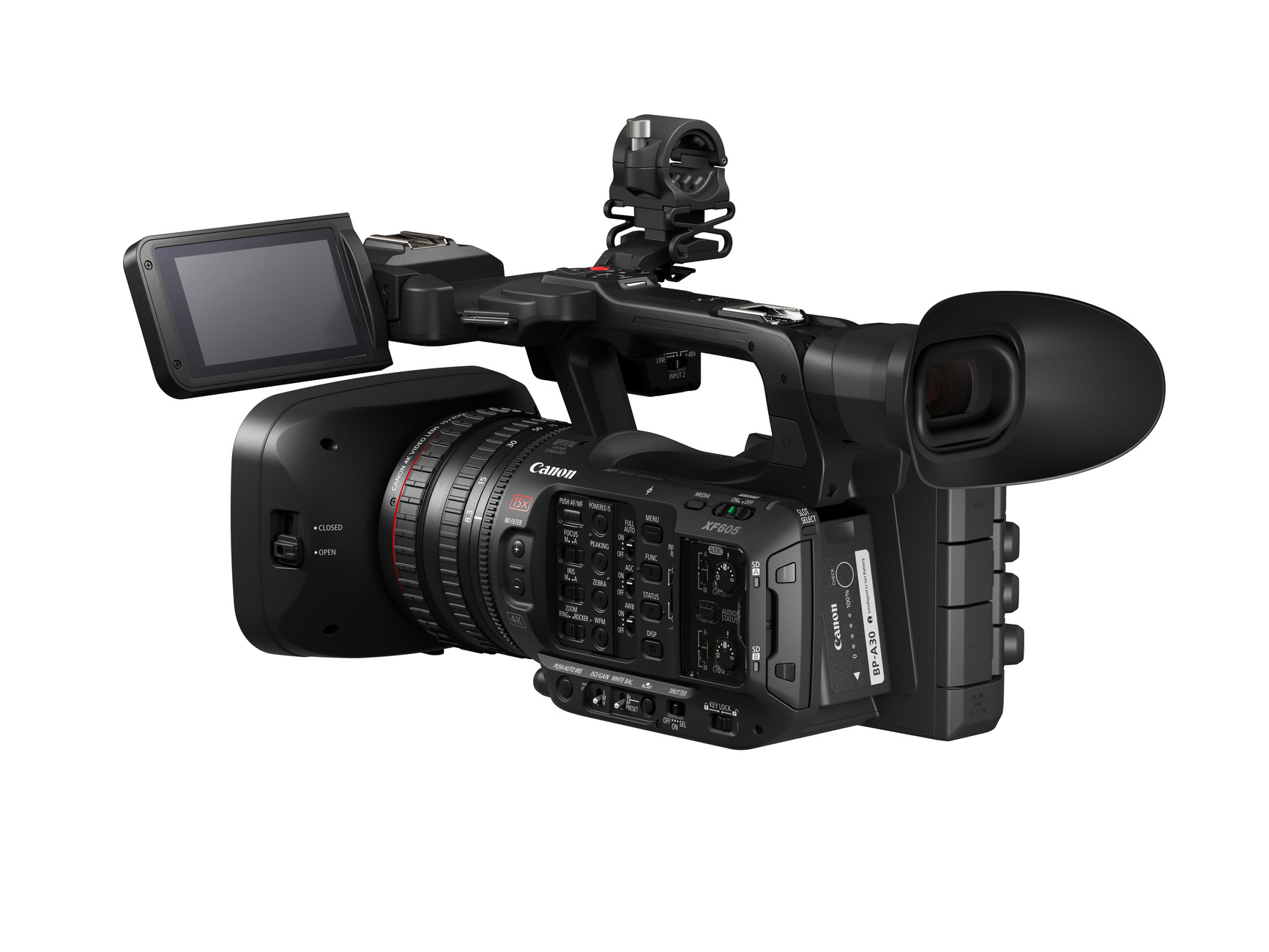

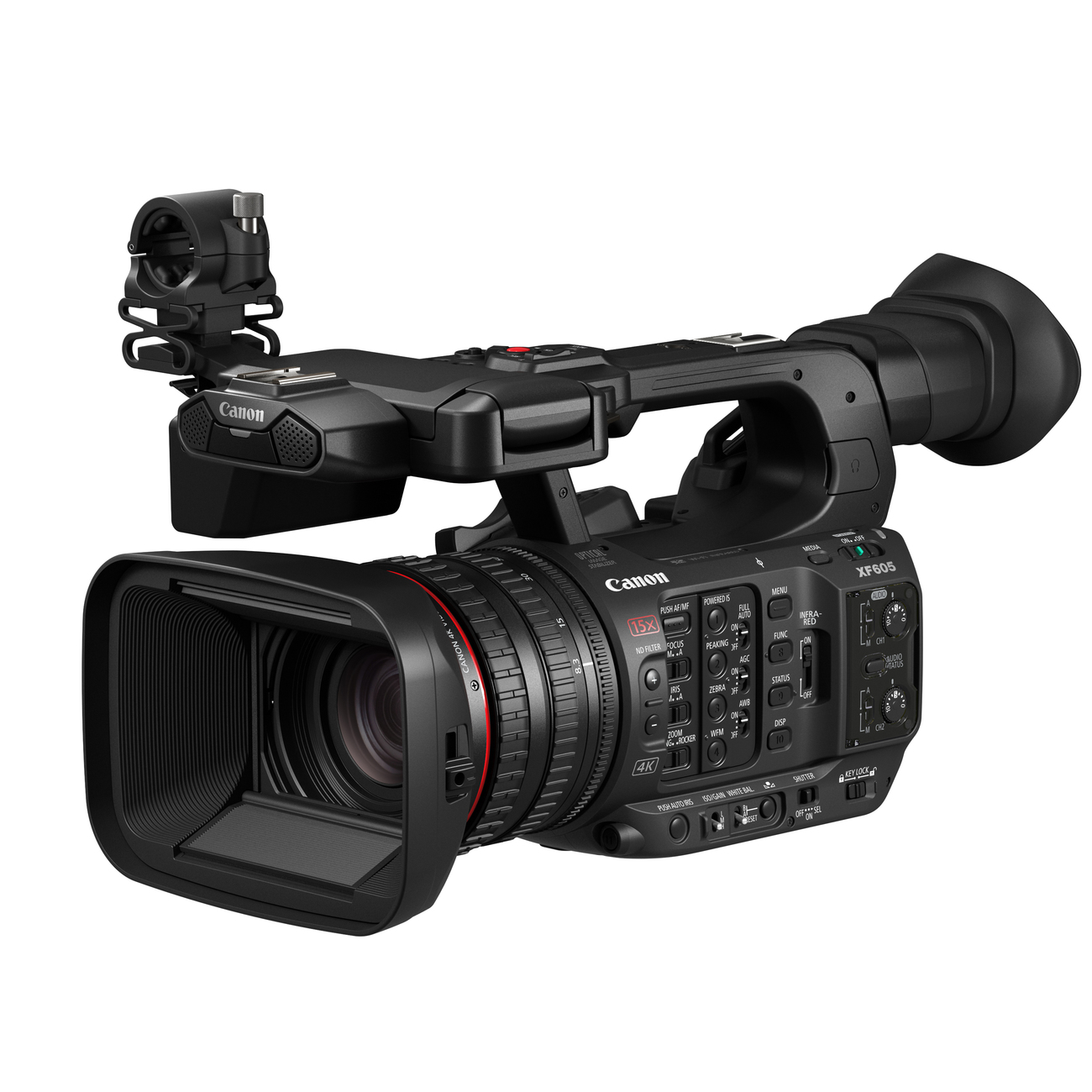

XF605 Handheld camcorder
13.4 MP CMOS 4K Ultra HD Black
Model XF605Part no. 5076C003EAN 4549292184822
65 specifications
- Display8.89 cm (3.5")
- Weight2.01 kg
- ColourBlack
- Total megapixels13.4 MP
- Optical zoom15x
- Camcorder media typeMemory card
Overview
- Display
- 8.89 cm (3.5")
- Weight
- 2.01 kg
- Colour
- Black
- Total megapixels
- 13.4 MP
- Optical zoom
- 15x
- Camcorder media type
- Memory card
- Brand
- Canon
- Category
- Camcorder
- Model
- XF605
- Part numbers
- 5076C003, 5076C002
- EAN / UPC
- 4549292184822
- Also known as
- Canon XF605 Handheld camcorder 13.4 MP CMOS 4K Ultra HD Black
Specifications
65 specifications in 20 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 13.4 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1 mm (1 / 1") |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 15x |
| Digital zoom | 30x |
| Image stabilizer | Yes |
| Focal length (35mm film equivalent) | 25.5 - 382.5 mm |
| Filter size | 58 mm |
| Image stabilizer type | Optical Image Stabilization (OIS) |
| Maximum aperture number | 2.8 |
Storage
| Specification | Value |
|---|---|
| Camcorder media type | Memory card |
| Compatible memory cards | SD, SDHC, SDXC |
| Memory slots | 2 |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
Exposure
| Specification | Value |
|---|---|
| ISO sensitivity | 200, 12800, Auto |
| Gain adjustment range | -6 - 21 dB |
White balance
| Specification | Value |
|---|---|
| White balance | Cloudy, Custom modes, Daylight, Flash, Fluorescent, Shade, Tungsten |
Shutter
| Specification | Value |
|---|---|
| Camera shutter speed | 1/2000 s |
Display
| Specification | Value |
|---|---|
| Display diagonal | 8.89 cm (3.5") |
| Built-in display | Yes |
| Display | LCD |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Optical |
| Viewfinder technology | OLED |
Camera
| Specification | Value |
|---|---|
| Camcorder type | Handheld camcorder |
| Minimum illumination | 1.5 lx |
| Image processor | DIGIC DV 7 |
| Simultaneous recording | Yes |
| Built-in ND filter | Yes |
| 3D | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Video resolutions | 1280 x 720,1920 x 1080,3840 x 2160 |
| Video formats supported | H.265, MP4, MPEG4, MXF |
| Analog signal format system | NTSC, PAL |
| Pre-record | Yes |
| Maximum frame rate | 120 fps |
Still image
| Specification | Value |
|---|---|
| Maximum image resolution | 3840 x 2160 pixels |
| Image formats supported | JPEG |
Audio
| Specification | Value |
|---|---|
| PCM digital audio | 16-bit/48 kHz |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HD-SDI output | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| XLR in | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Near Field Communication (NFC) | No |
| Ethernet LAN | Yes |
Battery
| Specification | Value |
|---|---|
| Battery life (max) | 2.5 h |
Technical details
| Specification | Value |
|---|---|
| Number of diaphragm blades | 9 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168 mm |
| Depth | 173 mm |
| Height | 333 mm |
| Weight | 2.01 kg |
