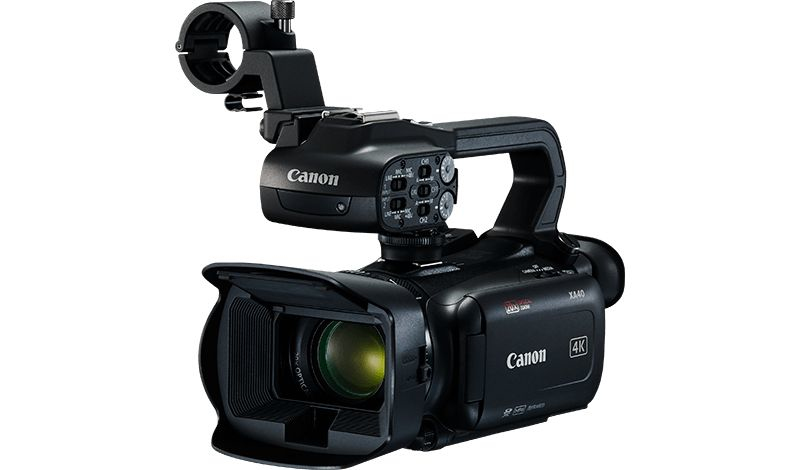

XA40 Handheld camcorder
21.14 MP CMOS 4K Ultra HD Black
Model XA40Part no. 3666C003EAN 4549292139648
74 specifications
- Display7.62 cm (3")
- Battery1780 mAh
- Weight730 g
- ColourBlack
- Total megapixels21.14 MP
- Optical zoom20x
Overview
- Display
- 7.62 cm (3")
- Battery
- 1780 mAh
- Weight
- 730 g
- Colour
- Black
- Total megapixels
- 21.14 MP
- Optical zoom
- 20x
- Brand
- Canon
- Category
- Camcorder
- Model
- XA40
- Part numbers
- 3666C003, XA40
- EAN / UPC
- 4549292139648
- Also known as
- Canon XA40 Handheld camcorder 21.14 MP CMOS 4K Ultra HD Black
Specifications
74 specifications in 21 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 21.14 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.3 mm (1 / 2.3") |
| Effective megapixels (movie) | 8.29 MP |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 20x |
| Image stabilizer | Yes |
| Focal length (35mm film equivalent) | 29.3 - 601 mm |
| Filter size | 58 mm |
| Image stabilizer type | Optical Image Stabilization (OIS) |
| Maximum aperture number | 1.8 |
| Minimum aperture number | 2.8 |
Storage
| Specification | Value |
|---|---|
| Camcorder media type | Memory card |
| Compatible memory cards | SD, SDHC, SDXC |
| Disc types supported | No |
| Camcorder tape type | No |
| Memory slots | 2 |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
| Closest focusing distance | 0.01 m |
| Face detection | Yes |
White balance
| Specification | Value |
|---|---|
| White balance | Auto, Daylight, Tungsten |
Flash
| Specification | Value |
|---|---|
| Shoe mounting point | Yes |
| Shoe mounting point type | Cold shoe |
Shutter
| Specification | Value |
|---|---|
| Camera shutter speed | 1/6 - 1/2000, 1/2 - 1/500 s |
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.62 cm (3") |
| Built-in display | Yes |
| Flip-out screen | Yes |
| Touchscreen | Yes |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder screen size | 0.24" |
Camera
| Specification | Value |
|---|---|
| Camcorder type | Handheld camcorder |
| Minimum illumination | 4.2 lx |
| Image processor | DIGIC DV 6 |
| 3D | No |
| Remotely operated | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Video resolutions | 1920 x 1080,3840 x 2160 pixels |
| Video formats supported | MP4 |
| Bitrate at maximum video resolution | 150 Mbit/s |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | No |
| Audio formats supported | AAC |
| Microphone connectivity | 3.5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | No |
| Component video (YPbPr/YCbCr) out | 0 |
| HDMI | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Microphone in | Yes |
| Mini HDMI ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| S-Video out | No |
| USB connectivity | Yes |
| XLR in | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
| Near Field Communication (NFC) | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Video recording time | 2.9 h |
| Battery capacity | 1780 mAh |
| Battery type | BP-820 |
Technical details
| Specification | Value |
|---|---|
| Number of diaphragm blades | 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 109 mm |
| Depth | 84 mm |
| Height | 182 mm |
| Weight | 730 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Lens hood | Yes |
| Number of batteries included | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Lens cap included | Yes |
