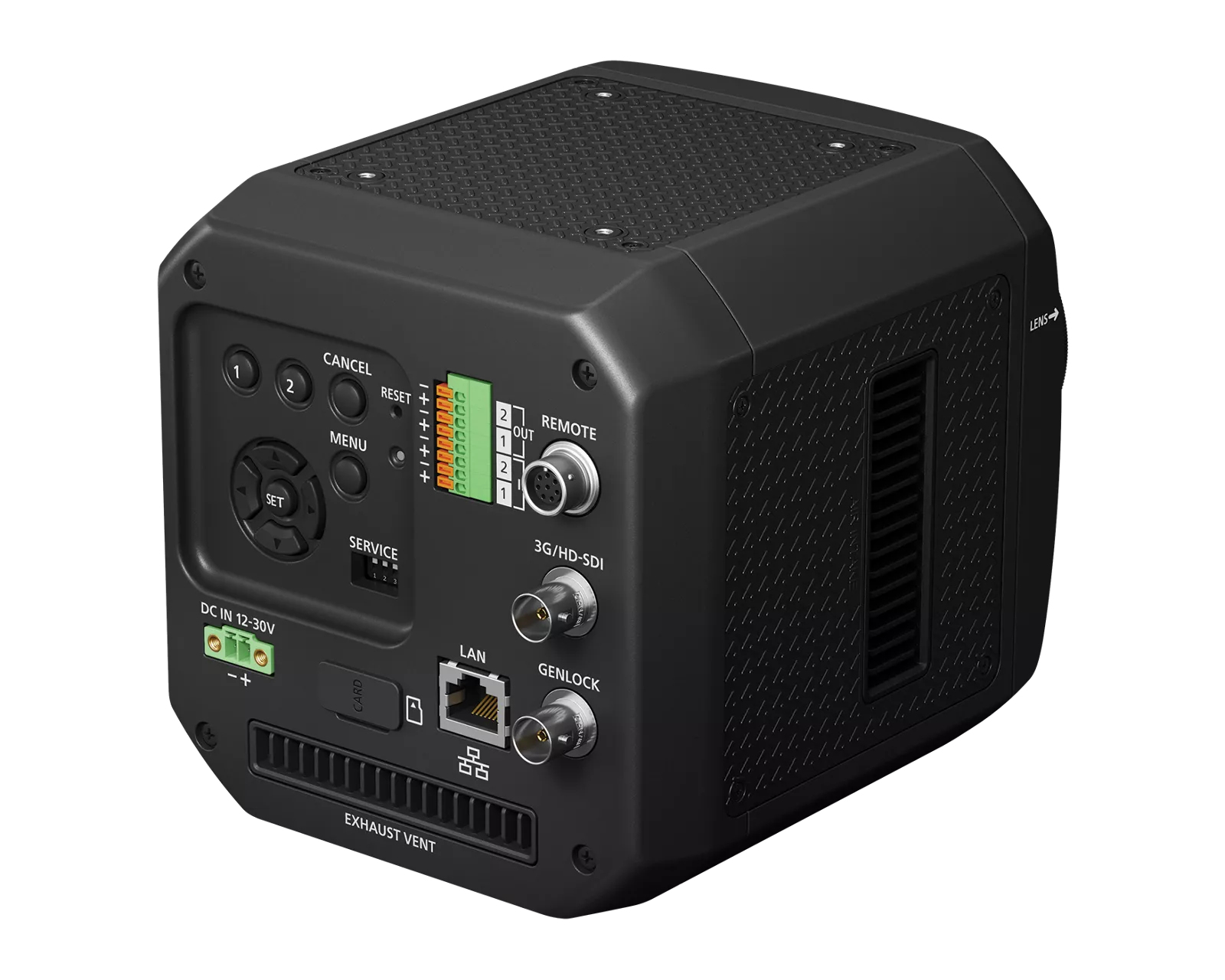

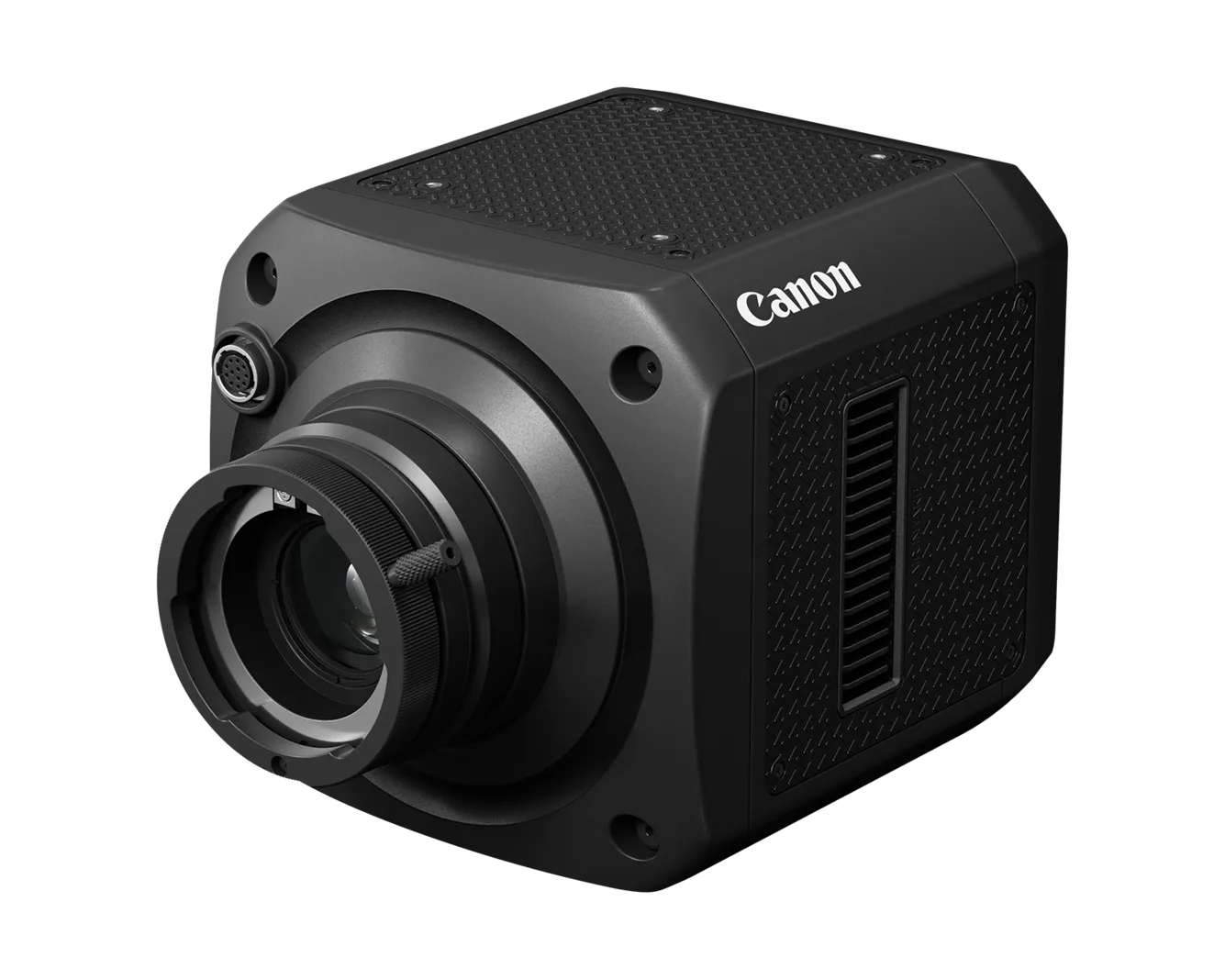

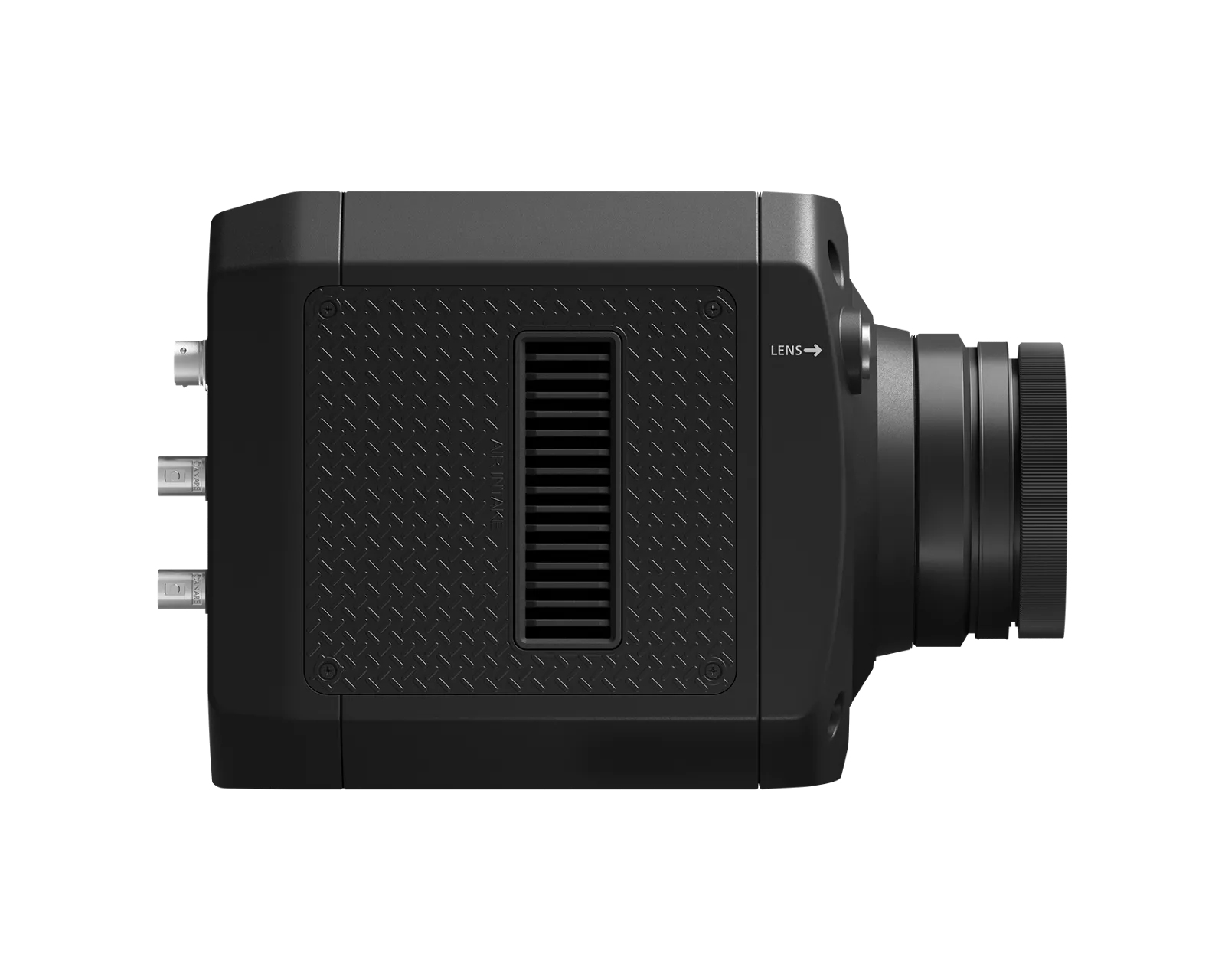

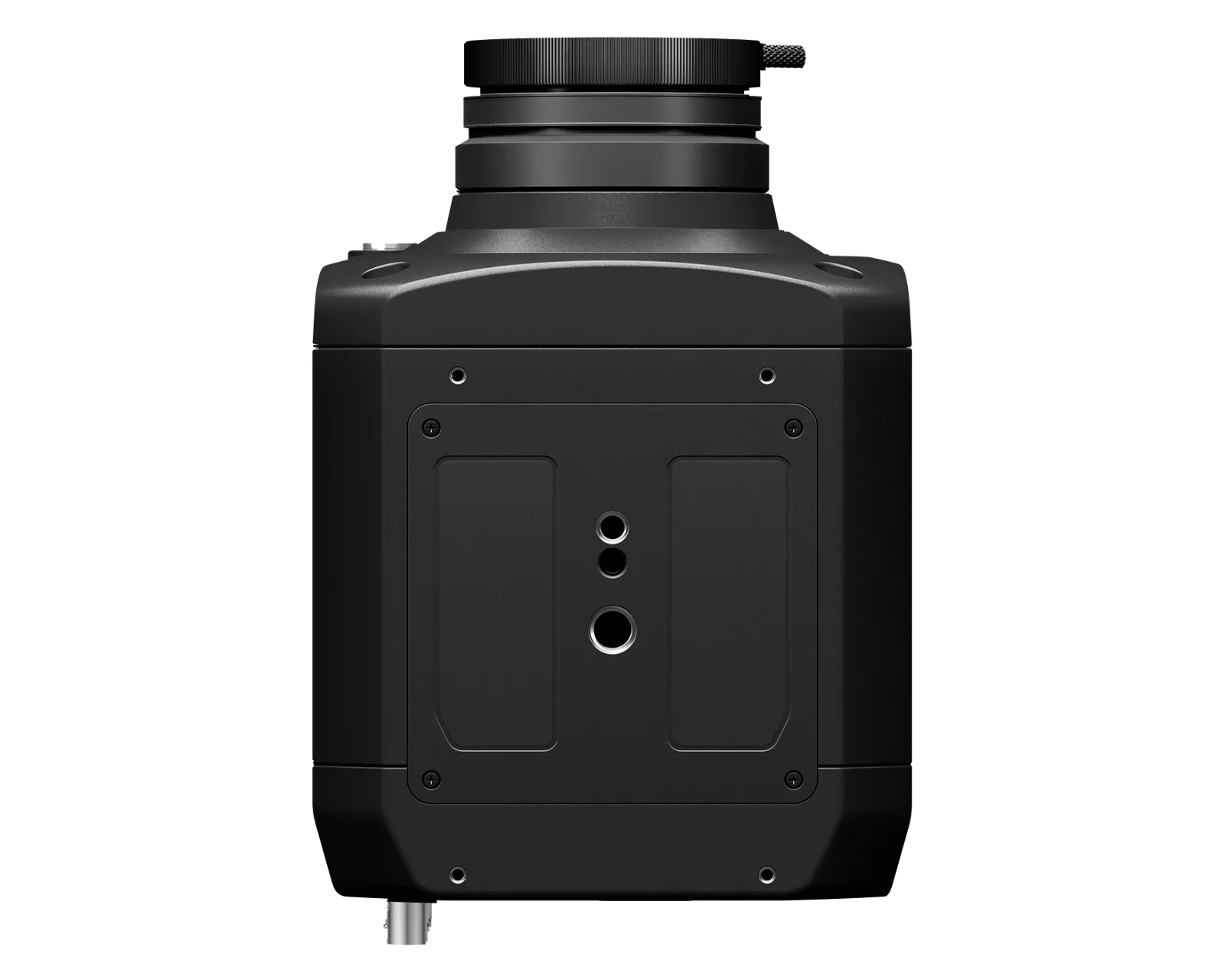

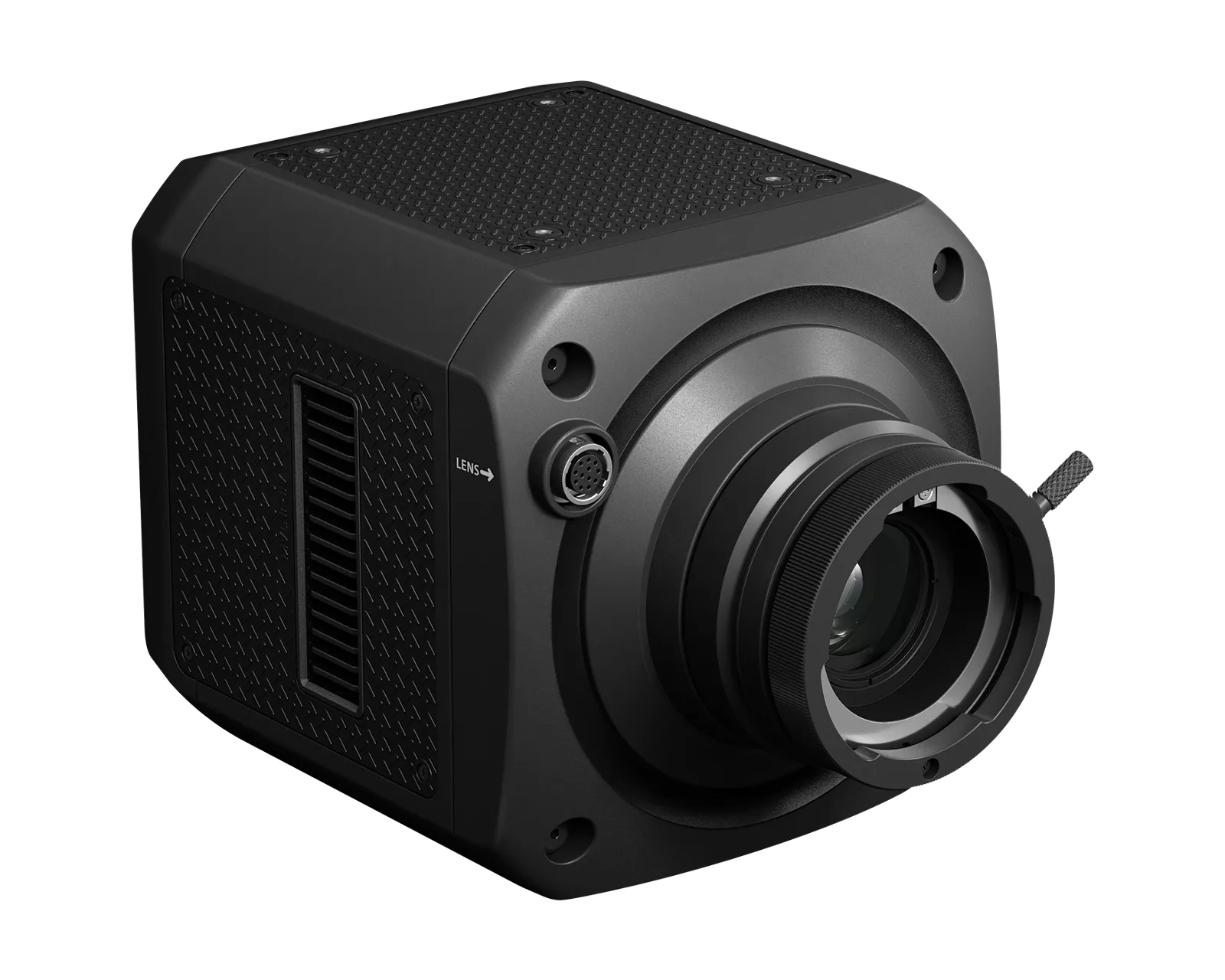

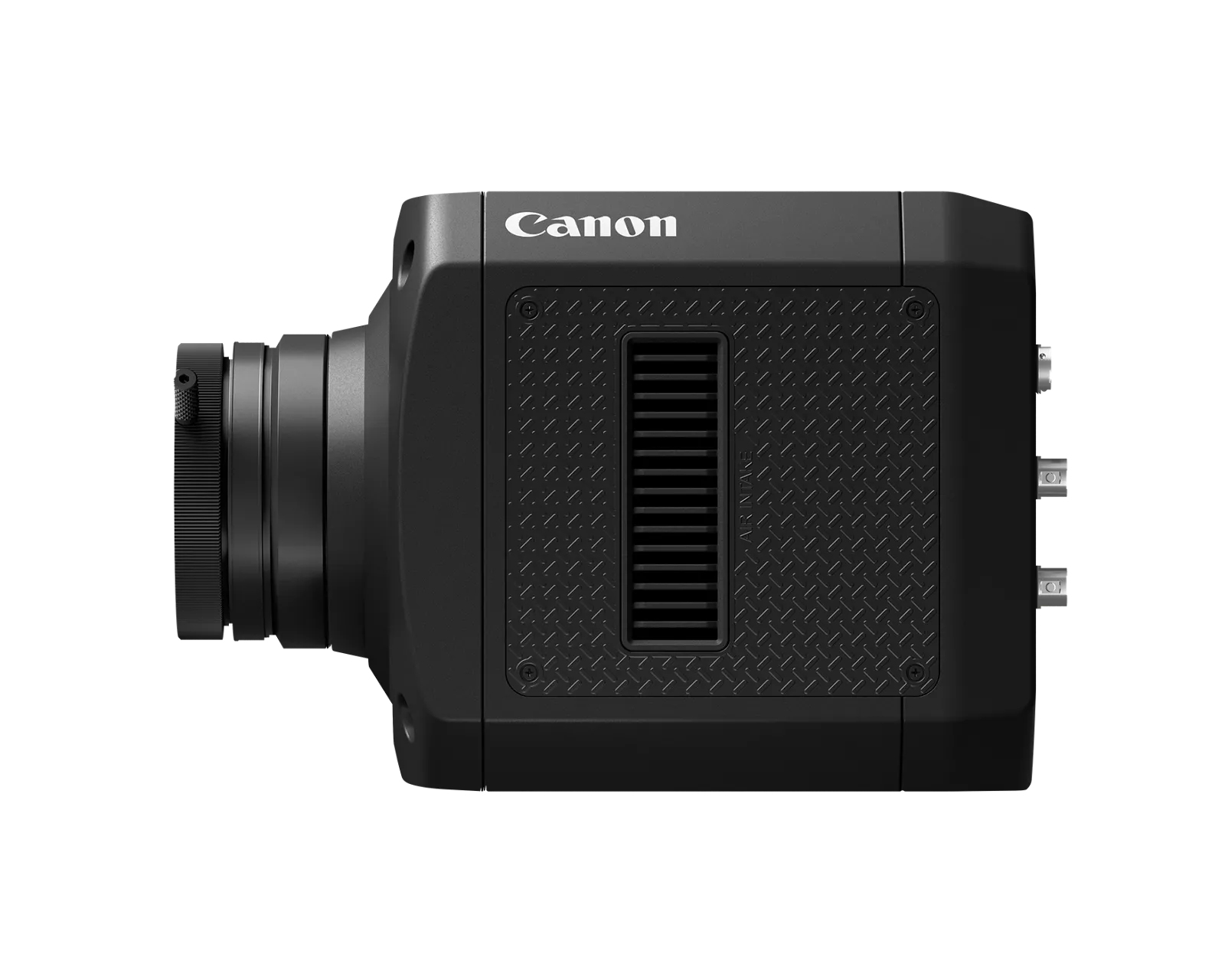

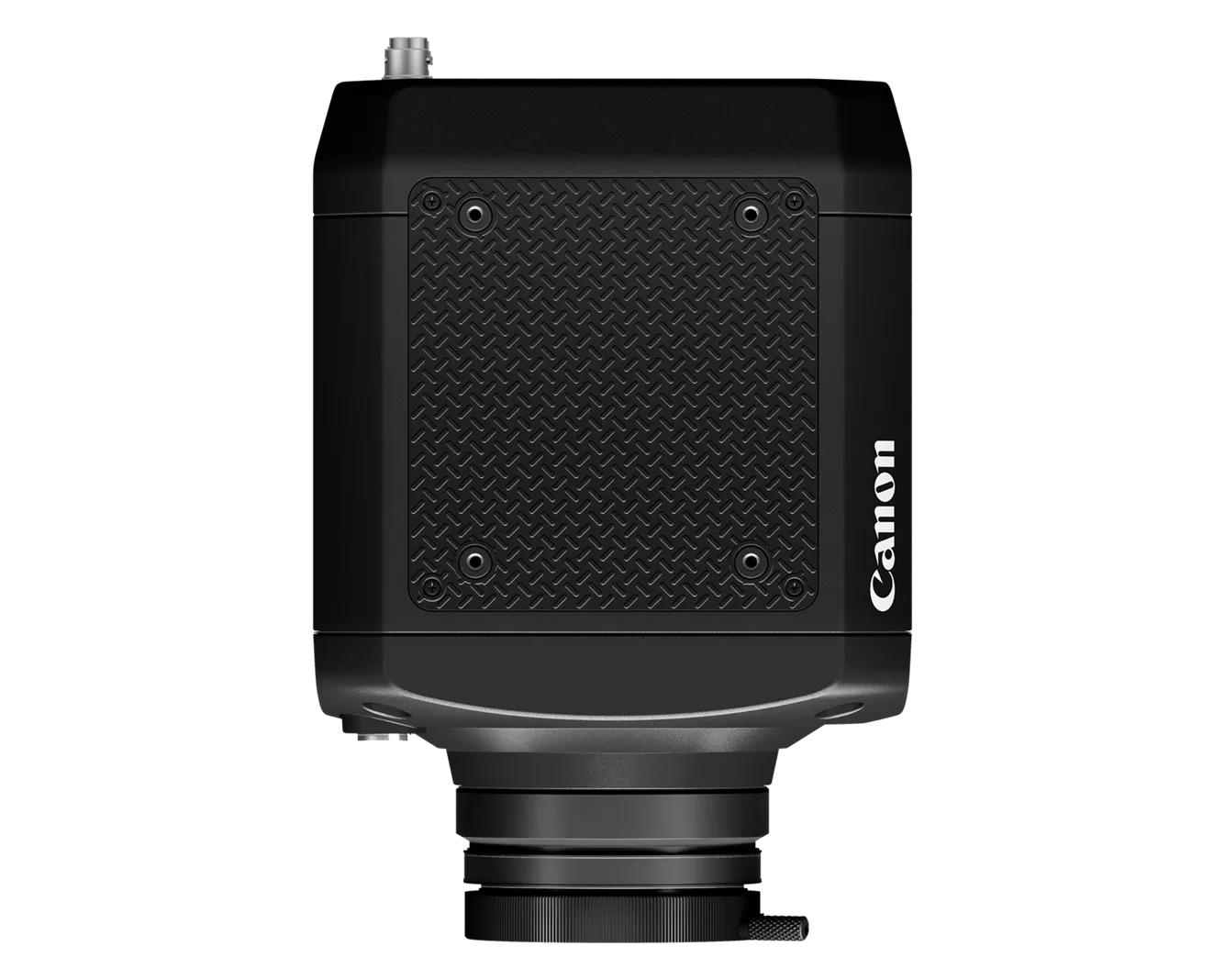

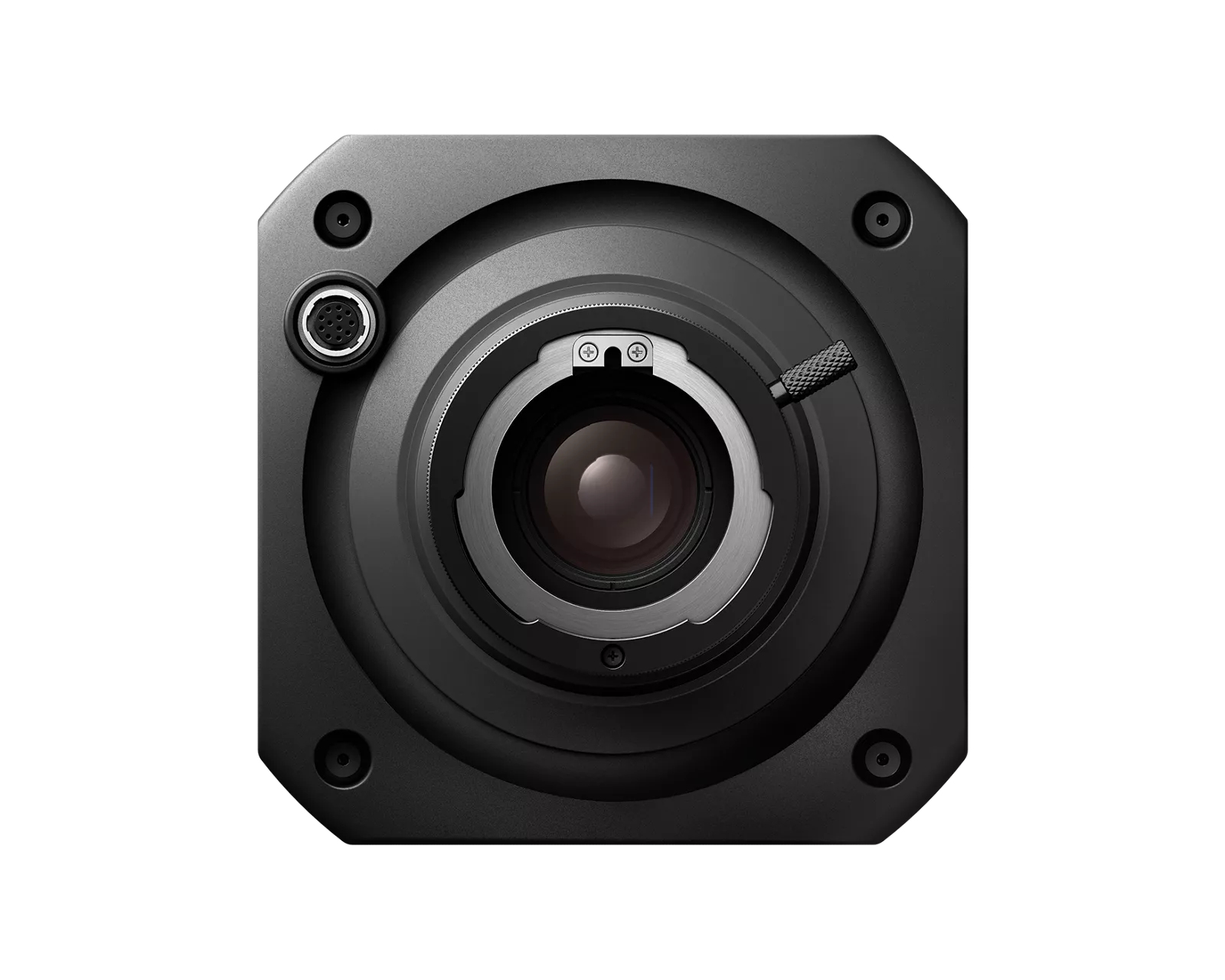

MS-500 Handheld camcorder
3.2 MP SPAD Full HD Black
Model MS-500Part no. 9915B001EAN 4549292228281
52 specifications
- Weight2.2 kg
- ColourBlack
- Total megapixels3.2 MP
- Digital zoom10x
- Camcorder media typeMemory card
- Focus adjustmentAuto/Manual
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Total megapixels
- 3.2 MP
- Digital zoom
- 10x
- Camcorder media type
- Memory card
- Focus adjustment
- Auto/Manual
- Brand
- Canon
- Category
- Camcorder
- Model
- MS-500
- Part number
- 9915B001
- EAN / UPC
- 4549292228281
- Also known as
- Canon MS-500 Handheld camcorder 3.2 MP SPAD Full HD Black
Specifications
52 specifications in 20 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 3.2 MP |
| Sensor type | SPAD |
| Effective megapixels (image) | 2.1 MP |
| Effective megapixels (movie) | 2.1 MP |
Lens system
| Specification | Value |
|---|---|
| Digital zoom | 10x |
| Fixed focal length | 1.4 mm |
Storage
| Specification | Value |
|---|---|
| Camcorder media type | Memory card |
| Compatible memory cards | MicroSD (TransFlash) |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
Exposure
| Specification | Value |
|---|---|
| Light exposure modes | Auto, Manual |
| Gain adjustment range | 0 - 84 dB |
White balance
| Specification | Value |
|---|---|
| White balance | Auto, Daylight, Manual, Tungsten |
Shutter
| Specification | Value |
|---|---|
| Camera shutter speed | 1/3 - 1/4000 s |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Camera
| Specification | Value |
|---|---|
| Camcorder type | Handheld camcorder |
| Minimum illumination | 0.001 lx |
| Built-in ND filter | Yes |
Design
| Specification | Value |
|---|---|
| Market segment | Consumer |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 640 x 360,1280 x 720,1920 x 1080 |
| Maximum frame rate | 60 fps |
Still image
| Specification | Value |
|---|---|
| Image formats supported | JPEG |

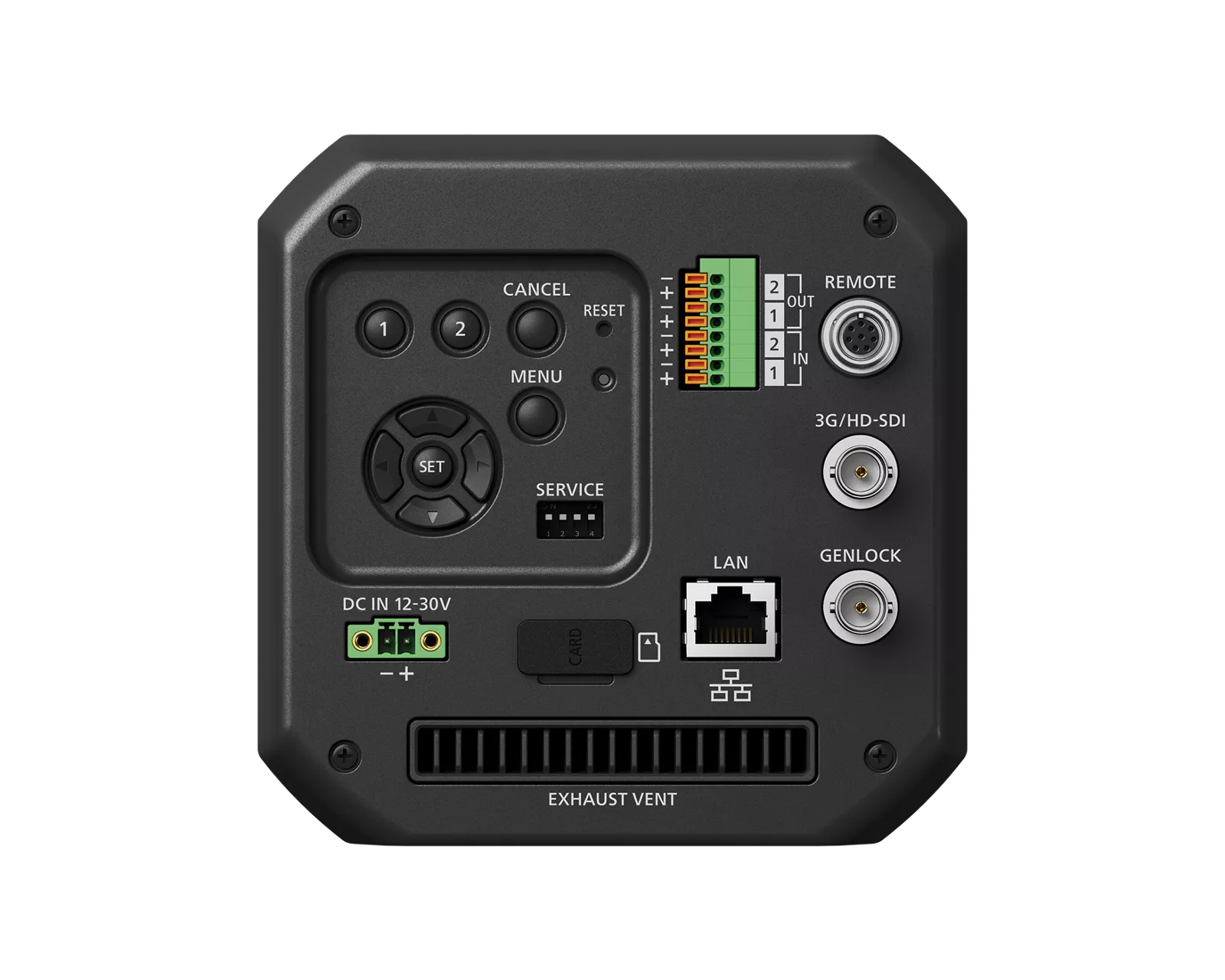

Ports & interfaces
| Specification | Value |
|---|---|
| PictBridge | No |
| Component video (YPbPr/YCbCr) out | 0 |
| HDMI | No |
| SDI outputs | 1 |
| SDI standards supported | 3G-SDI |
| BNC input ports | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
| Near Field Communication (NFC) | No |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), RTP/RTCP, RTSP, DHCP, AutoIP, DNS, mDNS, ARP, ICMP, NTP, SSL/TLS |
Power
| Specification | Value |
|---|---|
| USB Type-C charging port | No |
Technical details
| Specification | Value |
|---|---|
| Power consumption | 23.7 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128 mm |
| Depth | 184 mm |
| Height | 128 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 - 30 V |
| Video compression formats | H.264, H.265, HEVC, MPEG4 |
| Zoom capability | Yes |
