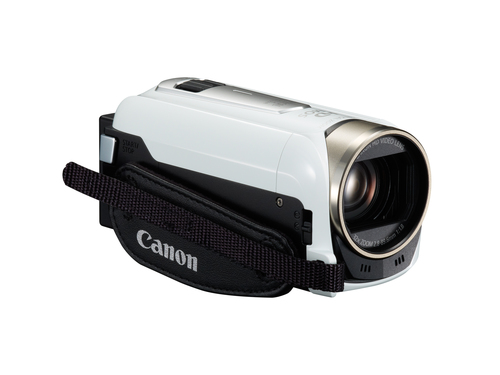

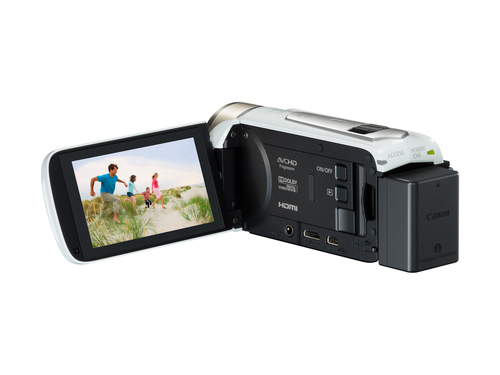

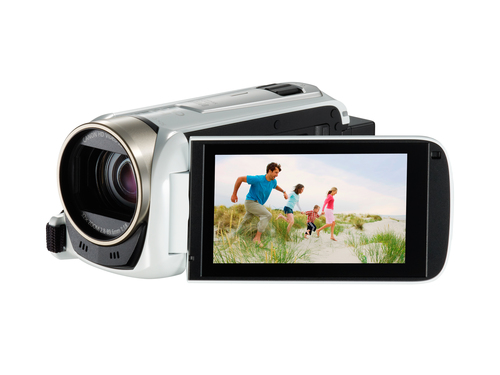

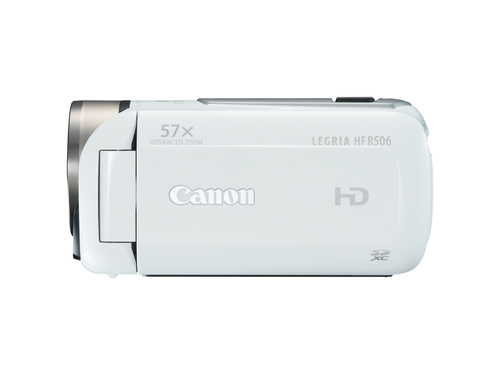

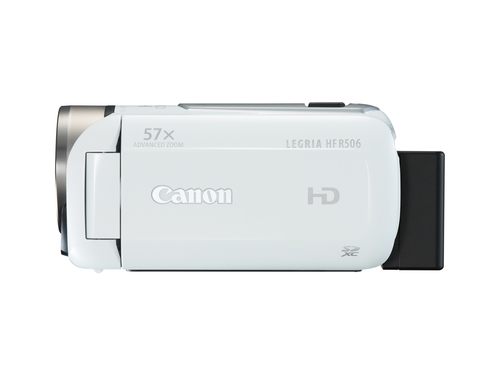

Canon HF R506
Model HF R506Part no. 9176B032EAN 8714574617398
70 specifications
- Display7.62 cm (3")
- Weight235 g
- ColourWhite
- Total megapixels3.28 MP
- Optical zoom32x
- Camcorder media typeMemory card
Overview
- Display
- 7.62 cm (3")
- Weight
- 235 g
- Colour
- White
- Total megapixels
- 3.28 MP
- Optical zoom
- 32x
- Camcorder media type
- Memory card
- Brand
- Canon
- Category
- Camcorder
- Model
- HF R506
- Part numbers
- 9176B032, 9176B017, 9176B012, 9176B029, 9176B022, 9176B004 +12 more
- EAN / UPC
- 8714574617398, 8714574616933, 8714574616889, 8714574617367 +16 more
- Also known as
- Canon LEGRIA HF R506 Handheld camcorder 3.28 MP CMOS Full HD White
Specifications
70 specifications in 18 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 3.28 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4.85 mm (1 / 4.85") |
| Effective megapixels (image) | 2.07 MP |
| Effective megapixels (movie) | 2.07 MP |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 32x |
| Digital zoom | 1140x |
| Image stabilizer | Yes |
| Focal length range | 2.8 - 89.6 mm |
| Focal length (35mm film equivalent) | 32.5 - 1853 mm |
| Image stabilizer type | Optical Image Stabilization (OIS) |
| Maximum aperture number | 4.5 |
| Maximum focal length (35mm film equiv) | 1853 mm |
| Minimum aperture number | 1.8 |
| Minimum focal length (35mm film equiv) | 32.5 mm |
Storage
| Specification | Value |
|---|---|
| Camcorder media type | Memory card |
| Flash memory | 8 GB |
| Compatible memory cards | SD, SDHC, SDXC |
| Disc types supported | No |
| Camcorder tape type | No |
| Maximum memory card size | 64 GB |
| Memory slots | 1 |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
| Closest focusing distance | 0.1 m |
| Face detection | Yes |
Exposure
| Specification | Value |
|---|---|
| Scene modes | Beach, Fireworks, Night, Portrait, Snow, Sports, Spotlight, Sunset |
White balance
| Specification | Value |
|---|---|
| White balance | Auto, Daylight, Tungsten |
Flash
| Specification | Value |
|---|---|
| Built-in flash | No |
| Built-in light | No |
Shutter
| Specification | Value |
|---|---|
| Camera shutter speed | 1/2000 - 1/2 s |
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.62 cm (3") |
| Built-in display | Yes |
| Display | LCD |
| Display resolution (numeric) | 23000 pixels |
| Touchscreen | Yes |
Camera
| Specification | Value |
|---|---|
| Camcorder type | Handheld camcorder |
| Self-timer delay | 10 s |
| Minimum illumination | 4 lx |
| Back Light Compensation (BLC) | Yes |
| Image processor | DIGIC DV IV |
| 3D | No |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 1280 x 720,1440 x 1080,1920 x 1080 |
| Video formats supported | AVCHD, MP4 |
| Pre-record | Yes |
| Dual shot (video & photo) | Yes |
Still image
| Specification | Value |
|---|---|
| Maximum image resolution | 1920 x 1080 pixels |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Digital 2.0 |
| Built-in microphone | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Headphone outputs | 1 |
| Mini HDMI ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 3.25 h |
| Number of batteries supported | 1 |
| Battery type | BP-718 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53 mm |
| Depth | 116 mm |
| Height | 57 mm |
| Weight | 235 g |

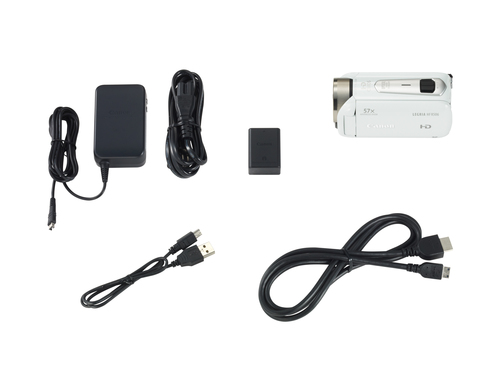

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Batteries included | Yes |
| Hand strap | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
