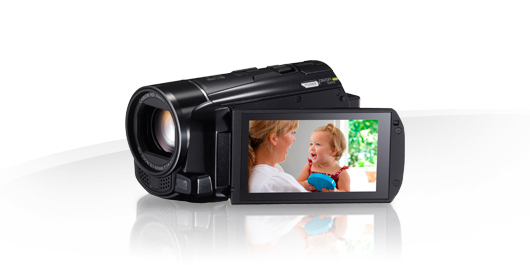

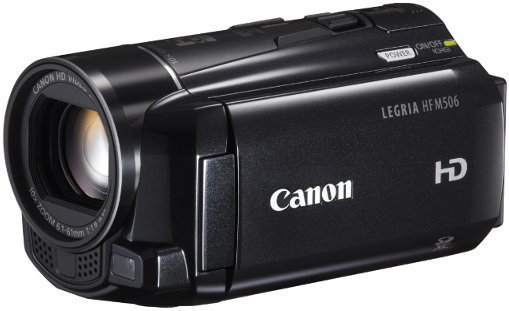

HF M506
Model HF M506Part no. 6096B018EAN 8714574582702
58 specifications
- Display7.62 cm (3")
- Storage0 GB
- Weight360 g
- ColourBlack
- Total megapixels2.37 MP
- Optical zoom10x
Overview
- Display
- 7.62 cm (3")
- Storage
- 0 GB
- Weight
- 360 g
- Colour
- Black
- Total megapixels
- 2.37 MP
- Optical zoom
- 10x
- Brand
- Canon
- Category
- Camcorder
- Model
- HF M506
- Part numbers
- 6096B018, 6096B003, 6096B008, 6096B006, 6096B007, 6096B016 +3 more
- EAN / UPC
- 8714574582702, 3610170844396, 4960999841182, 8714574581750 +6 more
- Also known as
- Canon LEGRIA HF M506 Handheld camcorder 2.37 MP CMOS Full HD Black
Specifications
58 specifications in 18 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 2.37 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.3 mm (1 / 1.3") |
| Effective megapixels (image) | 2.07 MP |
| Effective megapixels (movie) | 2.07 MP |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 10x |
| Digital zoom | 200x |
| Image stabilizer | Yes |
| Focal length range | 6.1 - 61 mm |
| Focal length (35mm film equivalent) | 43.6 - 436 mm |
| Filter size | 43 mm |
| Image stabilizer type | Optical Image Stabilization (OIS) |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.8 |
Storage
| Specification | Value |
|---|---|
| Internal storage capacity | 0 GB |
| Camcorder media type | Memory card |
| Compatible memory cards | SD, SDHC, SDXC |
| Disc types supported | No |
| Camcorder tape type | No |
| Maximum memory card size | 64 GB |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
| Face detection | Yes |
Exposure
| Specification | Value |
|---|---|
| Scene modes | Beach, Fireworks, Night, Snow, Sports, Sunset, Underwater |
White balance
| Specification | Value |
|---|---|
| White balance | Daylight, Shade, Tungsten |
Flash
| Specification | Value |
|---|---|
| Built-in flash | No |
Shutter
| Specification | Value |
|---|---|
| Camera shutter speed | 1/2000 s |
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.62 cm (3") |
| Built-in display | Yes |
| Display resolution (numeric) | 230000 pixels |
| Touchscreen | Yes |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder type | Not available |
Camera
| Specification | Value |
|---|---|
| Camcorder type | Handheld camcorder |
| Image processor | DIGIC DV III |
| 3D | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 1280 x 720,1440 x 1080,1920 x 1080 |
| Video formats supported | AVCHD, MPEG4 |
| Bitrate at maximum video resolution | 24 Mbit/s |
Still image
| Specification | Value |
|---|---|
| Maximum image resolution | 1920 x 1080 pixels |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Digital 2.0 |
| Built-in microphone | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Component video (YPbPr/YCbCr) out | 1 |
| HDMI | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DC-in jack | Yes |
| DV port | No |
| Headphone outputs | 1 |
| S-Video in | No |
| S-Video out | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | BP-718 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 121 mm |
| Height | 64 mm |
| Weight | 360 g |
