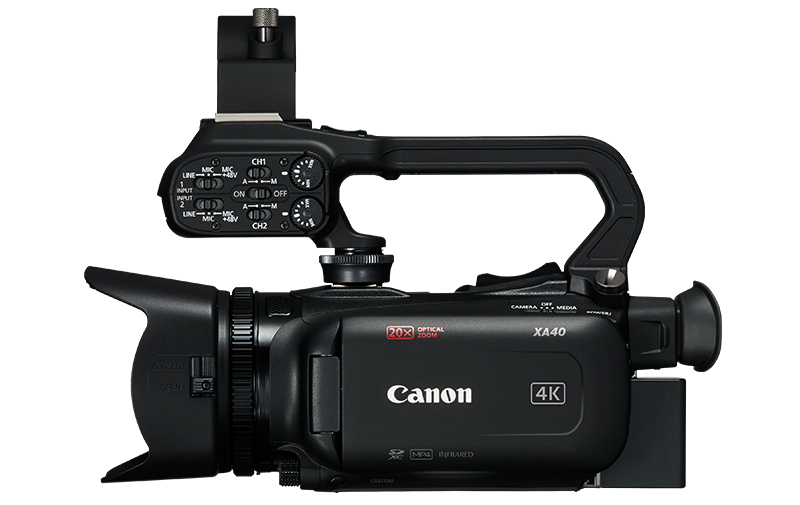

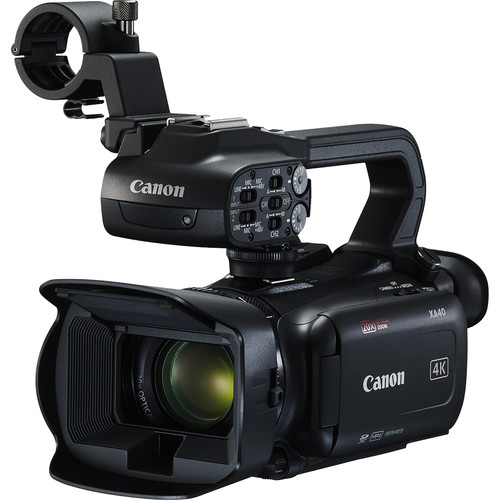

XA 40 Handheld camcorder
21.14 MP CMOS 4K Ultra HD Black
Model 40Part no. 3666C007EAN 8714574661780
76 specifications
- Display7.62 cm (3")
- Weight1.12 kg
- ColourBlack
- Total megapixels21.14 MP
- Optical zoom20x
- Compatible memory cardsSD, SDHC, SDXC
Overview
- Display
- 7.62 cm (3")
- Weight
- 1.12 kg
- Colour
- Black
- Total megapixels
- 21.14 MP
- Optical zoom
- 20x
- Compatible memory cards
- SD, SDHC, SDXC
- Brand
- Canon
- Category
- Camcorder
- Model
- 40
- Part numbers
- 3666C007, 3666C002
- EAN / UPC
- 8714574661780
- Also known as
- Canon XA 40 Handheld camcorder 21.14 MP CMOS 4K Ultra HD Black
Specifications
76 specifications in 21 groups
Image sensor
| Specification | Value |
|---|---|
| Total megapixels | 21.14 MP |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.3 mm (1 / 2.3") |
| Effective megapixels (image) | 8.29 MP |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 20x |
| Digital zoom | 400x |
| Image stabilizer | Yes |
| Focal length range | 10 - 60 mm |
| Filter size | 58 mm |
| Image stabilizer type | Optical Image Stabilization (OIS) |
| Maximum aperture number | 2.8 |
| Minimum aperture number | 1.8 |
| Wide angle lens system | Yes |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
| Memory slots | 2 |
Focusing
| Specification | Value |
|---|---|
| Focus adjustment | Auto/Manual |
| Face detection | Yes |
Exposure
| Specification | Value |
|---|---|
| Light exposure modes | Auto, Manual |
| Light metering | Centre-weighted, Evaluative (Multi-pattern) |
White balance
| Specification | Value |
|---|---|
| White balance | Daylight, Incandescent |
| Indoor white balance | Yes |
| Outdoor white balance | Yes |
Shutter
| Specification | Value |
|---|---|
| Camera shutter speed | 1/6 - 1/2000 s |
Display
| Specification | Value |
|---|---|
| Display diagonal | 7.62 cm (3") |
| Built-in display | Yes |
| Display | LCD |
| Flip-out screen | Yes |
| Display resolution (numeric) | 460000 pixels |
| Touchscreen | Yes |
Viewfinder
| Specification | Value |
|---|---|
| Viewfinder resolution (approx.) | 1.56 pixels |
| Viewfinder screen size | 0.24" |
Camera
| Specification | Value |
|---|---|
| Camcorder type | Handheld camcorder |
| Minimum illumination | 0.3 lx |
| Back Light Compensation (BLC) | Yes |
| Image processor | DIGIC DV 6 |
| Shooting modes | Auto, Manual, Scene |
| Camera playback | Movie |
| Photo mode | Yes |
| GPS (satellite) | Yes |
| Remotely operated | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Video resolutions | 1280 x 720,1920 x 1080,3840 x 2160 |
| HD-Ready | Yes |
| Video formats supported | MP4 |
Still image
| Specification | Value |
|---|---|
| Maximum image resolution | 3840 x 2160 pixels |
| Image formats supported | JPEG |
Audio
| Specification | Value |
|---|---|
| Audio system | stereo |
| PCM digital audio | 16-bit/48 kHz |
| Built-in microphone | Yes |
| Microphone connectivity | XLR |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI | Yes |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Mini HDMI ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| XLR in | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
Battery
| Specification | Value |
|---|---|
| Video recording time | 3 h |
| Battery life (max) | 4.5 h |
| Battery voltage | 4.1 V |
| Battery type | Canon BP-820 |
Technical details
| Specification | Value |
|---|---|
| Full HD | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 60 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 231 mm |
| Depth | 180 mm |
| Height | 131 mm |
| Weight | 1.12 kg |

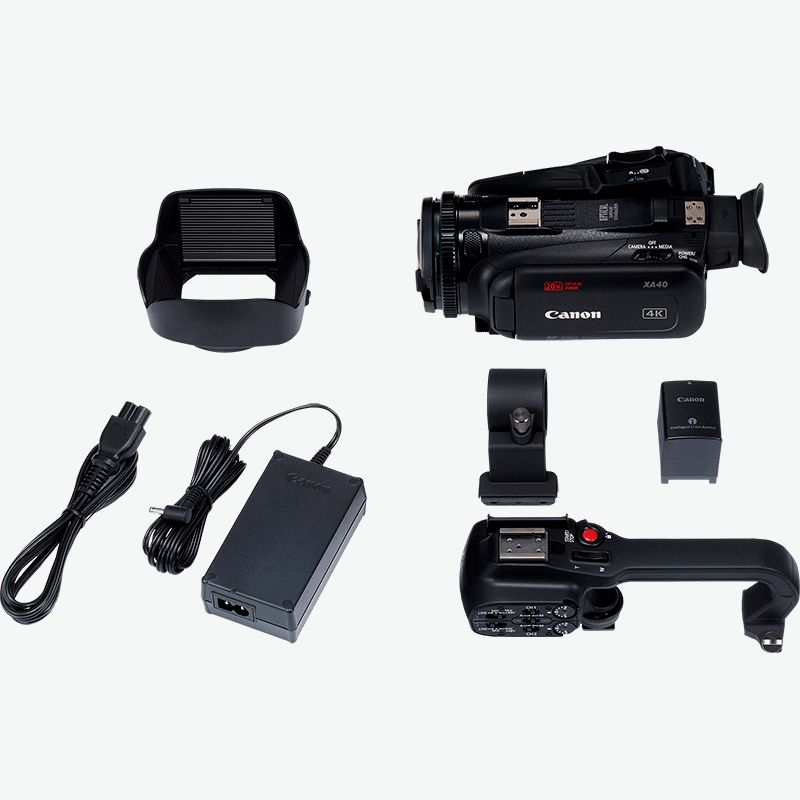

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Lens hood | Yes |
