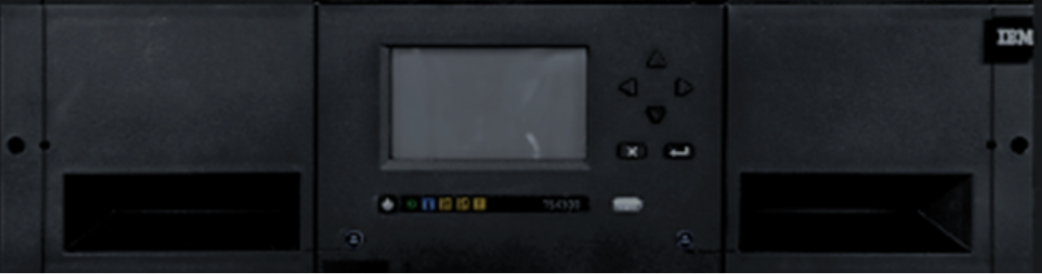

IBM TS4300
Model IBM TS4300Part no. 6741A1FEAN 889488456079
19 specifications
- ConnectivitySerial Attached SCSI (SAS)
- TypeStorage array
- Weight21 kg
- ColourBlack
- Power requirements100 - 240 V, 50/60 Hz
- Width446 mm
Overview
- Connectivity
- Serial Attached SCSI (SAS)
- Type
- Storage array
- Weight
- 21 kg
- Colour
- Black
- Power requirements
- 100 - 240 V, 50/60 Hz
- Width
- 446 mm
- Brand
- Lenovo
- Category
- Backup Storage Device
- Model
- IBM TS4300
- Part numbers
- 6741A1F, 6741A3F
- EAN / UPC
- 889488456079, 889488456086
- Also known as
- Lenovo IBM TS4300 Storage array Tape Cartridge LTO
Specifications
19 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Product type | Storage array |
| Media type | Tape Cartridge |
| Interface | Serial Attached SCSI (SAS) |
| Internal | Yes |
| Data storage type | LTO |
| Form factor | 3U |
| Storage media types supported | LTO-6, LTO-6HH, LTO-7, LTO-7HH, LTO-8, LTO-8HH, LTO-9 |
| Product colour | Black |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES) |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 V, 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446 mm |
| Depth | 873 mm |
| Height | 133 mm |
| Weight | 21 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 32 °C |
| Storage temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 8 - 80% |
Other features
| Specification | Value |
|---|---|
| Host interface | 12Gb SAS, 8Gb FC |
