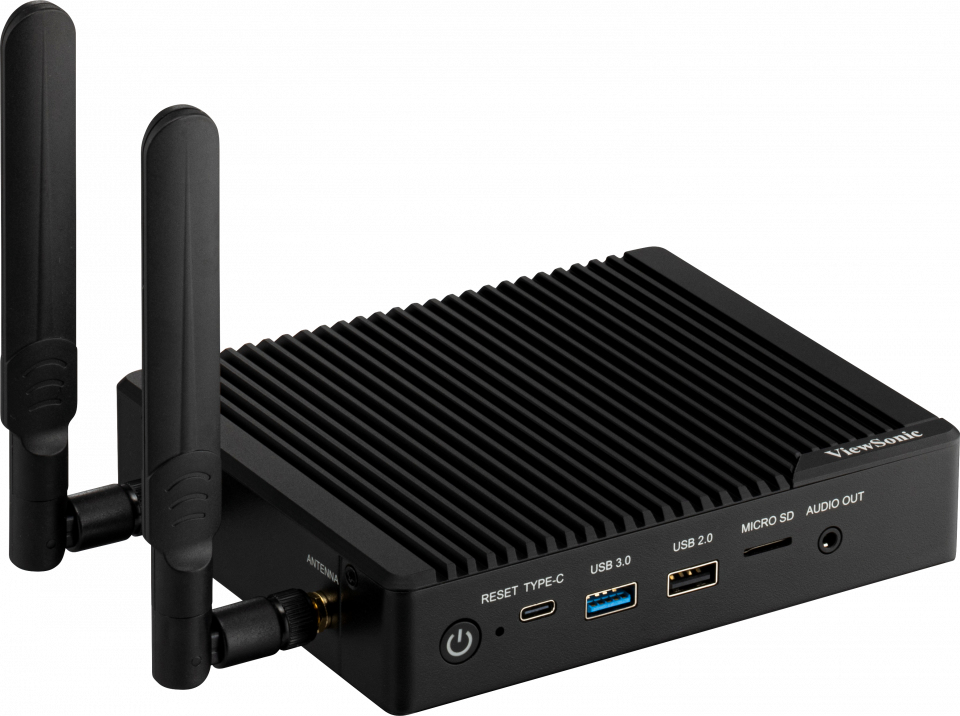

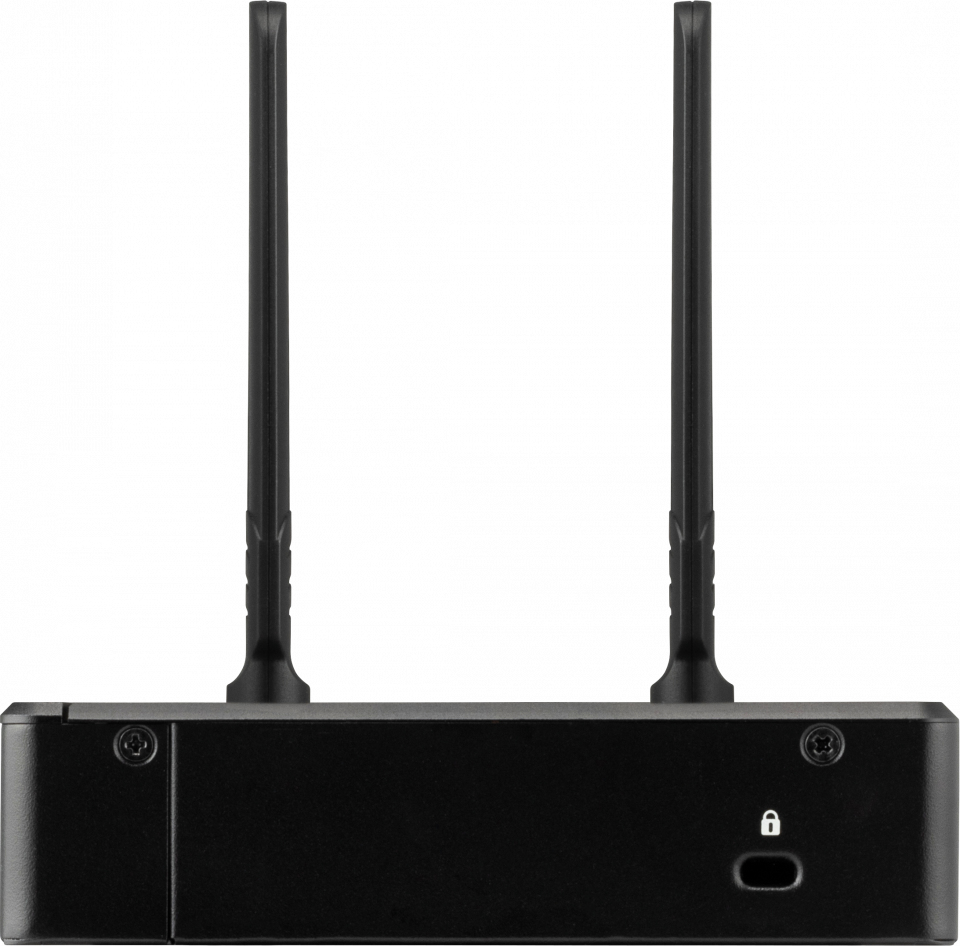

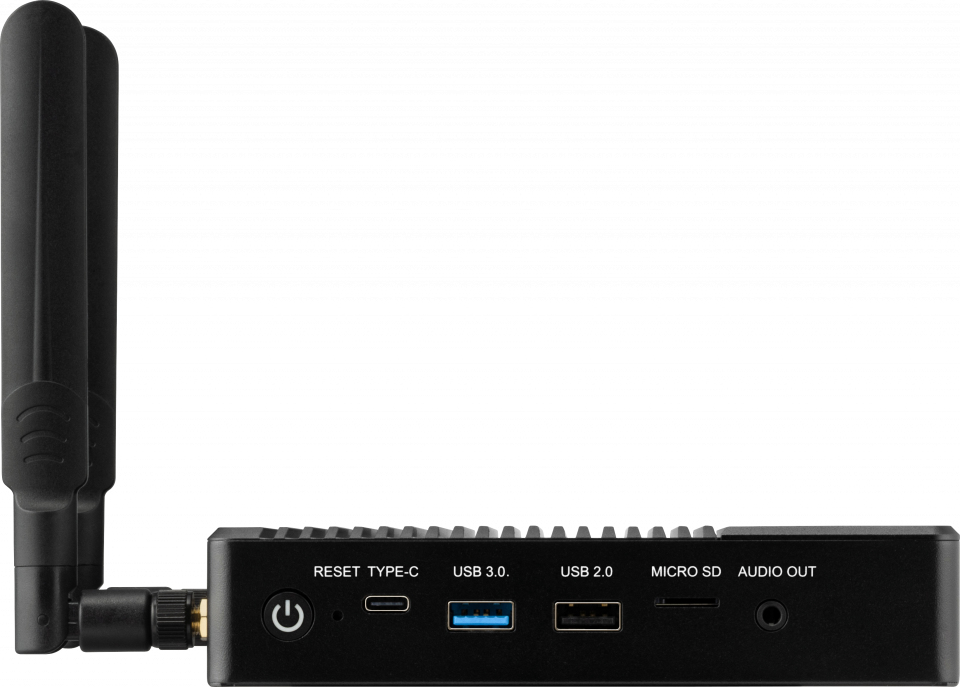

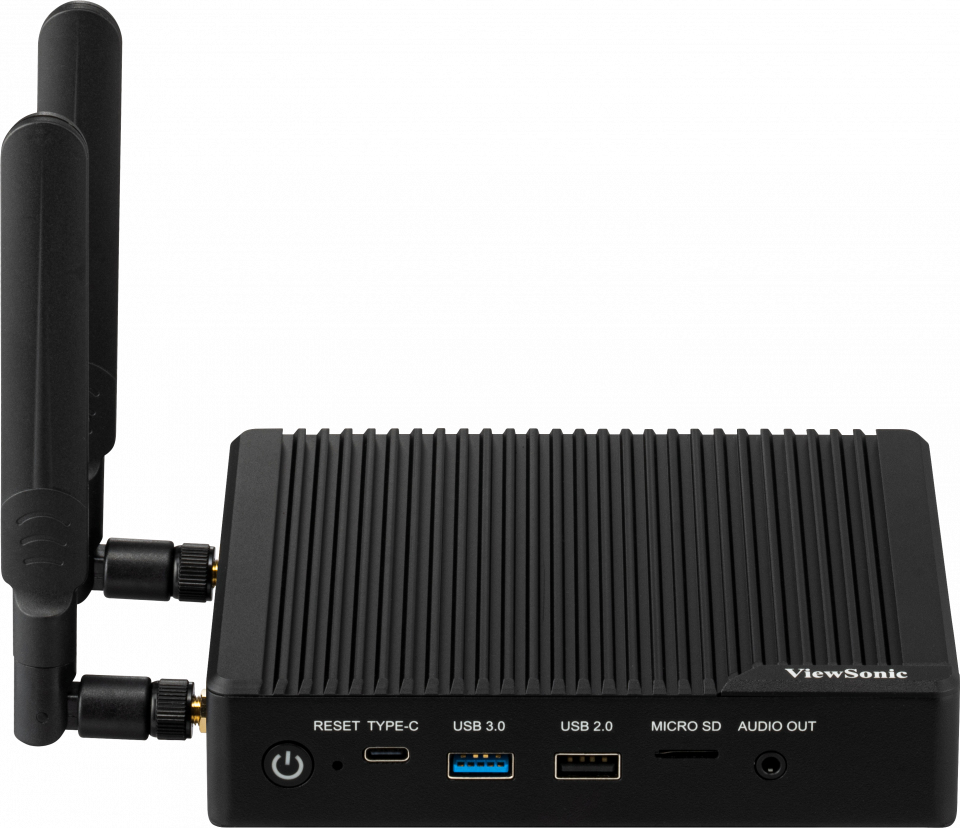

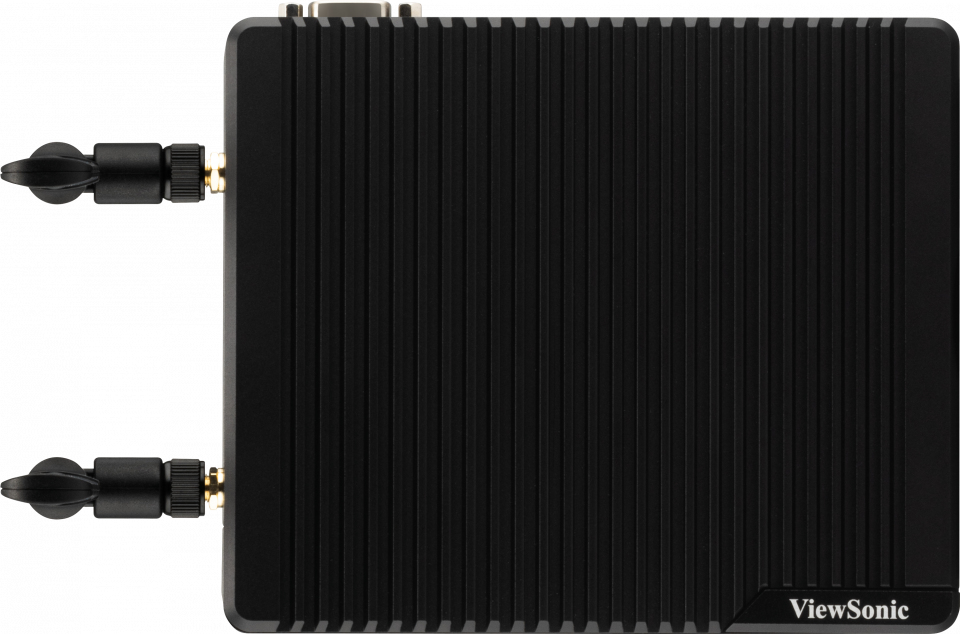

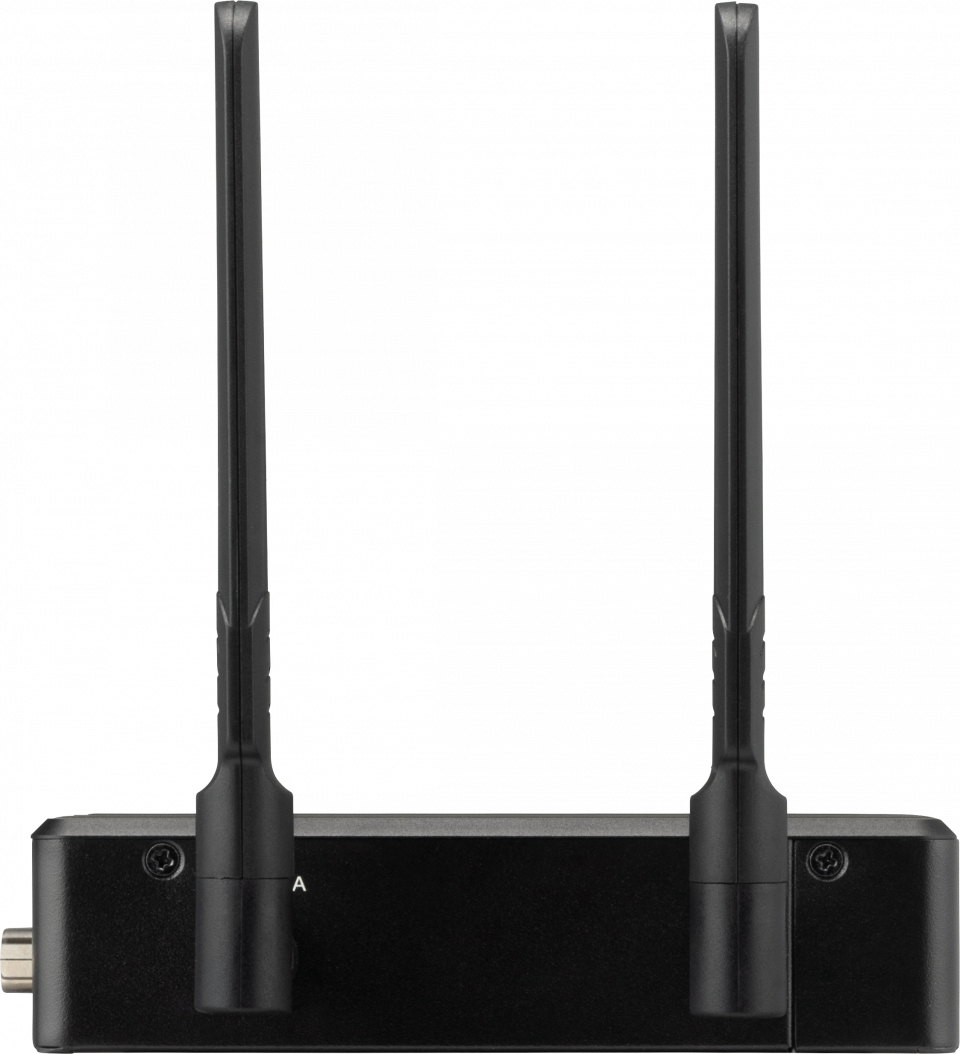

VBS200-A AV processor Black
Model VBS200-AEAN 766907019469
32 specifications
- Weight800 g
- ColourBlack
- Supported radio bandsNot supported
- HDMI input ports quantity1
- Input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 800 g
- Colour
- Black
- Supported radio bands
- Not supported
- HDMI input ports quantity
- 1
- Input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Viewsonic
- Category
- AV Processor
- Model
- VBS200-A
- Part number
- VBS200-A
- EAN / UPC
- 766907019469
- Also known as
- Viewsonic VBS200-A AV processor Black
Specifications
32 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | No |
| Remote control included | No |
| Certification | US NRTL w/ CA, FCC, FCC ID, CA IC, CE, CB, MEPS |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | Not supported |

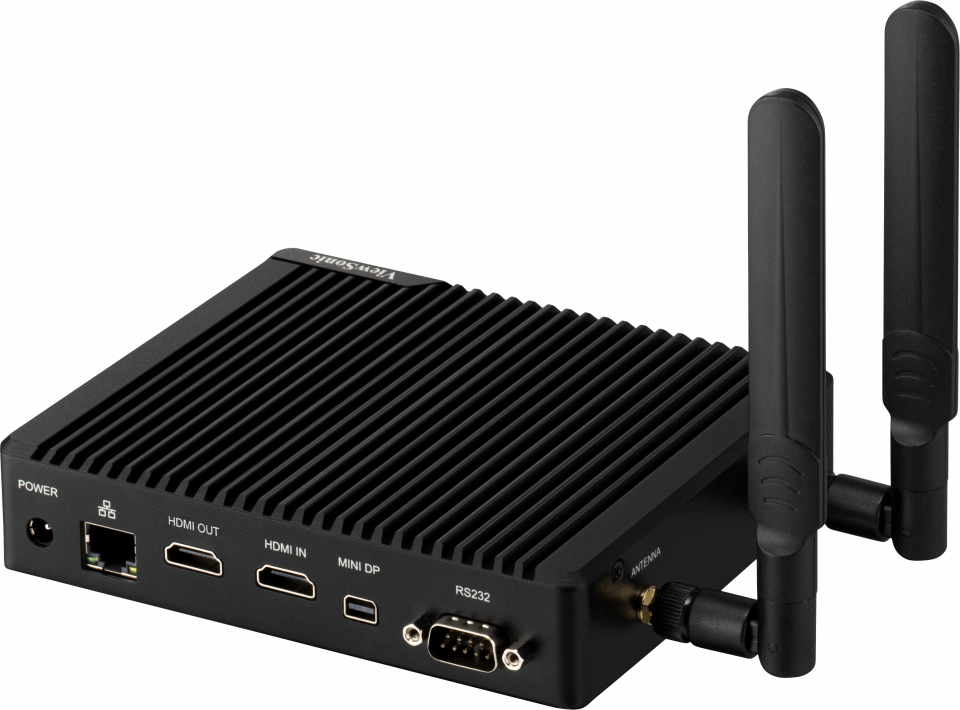

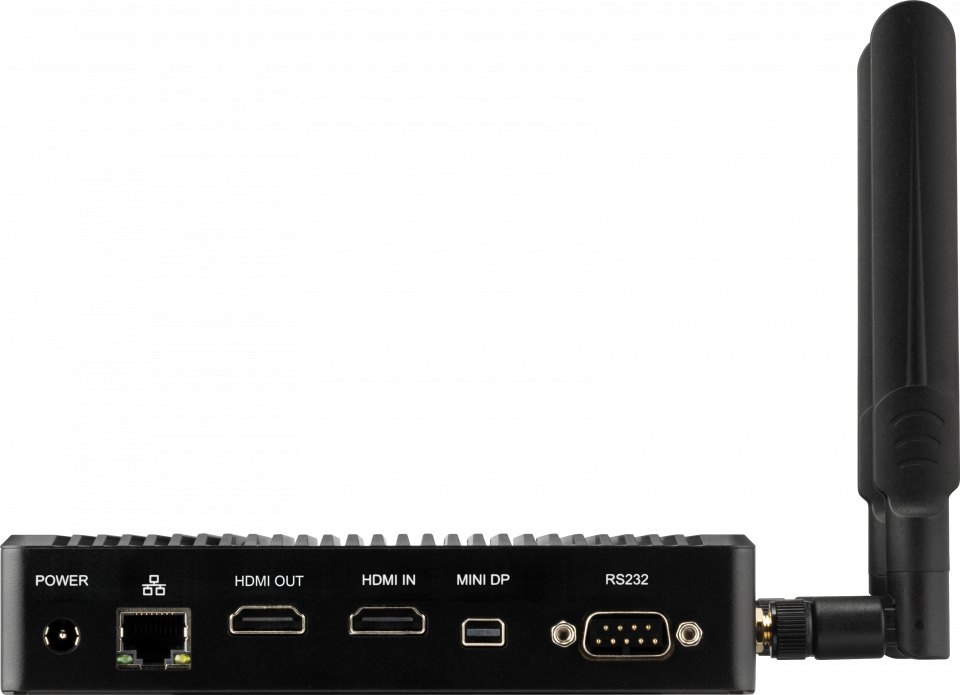

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| Line-out | Yes |
| Line-out connectivity | 3.5 mm |
| RS-232 interface | Yes |
| RJ-45 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| AC (power) in | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (max) | 17 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 151.8 mm |
| Depth | 127.8 mm |
| Height | 32.4 mm |
| Weight | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 200 mm |
| Package height | 80 mm |
| Package weight | 1.27 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 188.5 cm |
| Pallet gross length | 90 cm |
| Pallet gross width | 90 cm |
| Products per master (outer) case | 10 pc(s) |
| Quantity per pack | 1 pc(s) |
