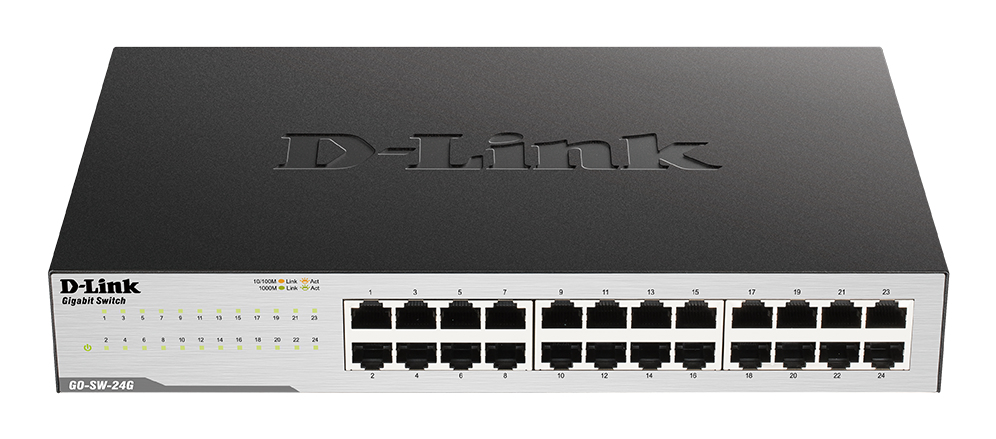

D-Link GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black

D-Link · Network Switch

D-Link GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black price in United Kingdom

Model GO-SW-24GMPN GO-SW-24GMPN GO-SW-24G/EEAN 5054531017001EAN 790069396625

  • Type1U
  • Weight1.35 kg
  • ColourBlack
  • Switch typeUnmanaged

No partner store in United Kingdom sells this right now

See network switches deals in United Kingdom
Full specifications and side-by-side comparison

Product details

Identification

Brand
D-Link
Product
GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
Full name
D-Link GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
Manufacturer part number
GO-SW-24G, GO-SW-24G/E
EAN / UPC
5054531017001, 790069396625, 4052305965467, 5425656676686, 7900693966252

69 specifications from the manufacturer's data sheet

Management features

Switch typeUnmanaged
Switch layerL2
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Installed SFP modules quantity0
Installed SFP+ modules quantity0

Network

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Full duplexYes
Half duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes

Data transmission

MAC address table8000 entries
Switching capacity48 Gbit/s
Forwarding rate35.71 Mpps
Store-and-forwardYes
Number of queues8
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory0.512 MB

Design

Rack mountingYes
Form factor1U
Product colourBlack
Housing materialMetal
LED indicatorsYes
Number of fans0 fan(s)

Performance

Mean time between failures (MTBF)302287 h

Power

Power supply includedYes
Redundant power supply (RPS) supportNo
Number of power supply units1
AC input voltage100 - 240 V
Power consumption (max)15.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation52.54 BTU/h

Weight & dimensions

Width280 mm
Depth180 mm
Height44 mm
Weight1.35 kg

Packaging data

Package width245 mm
Package depth438 mm
Package height77 mm
Package weight2.3 kg

Technical details

Master (outer) cases per pallet (air)28 pc(s)
Master (outer) cases per pallet (sea)28 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)373.6 kg
Pallet gross weight (sea)373.6 kg
Pallet gross width120 cm
Pallet height (air)2.02 m
Pallet height (sea)2.02 m
Products per pallet (air)140 pc(s)
Products per pallet (sea)140 pc(s)
Products per shipping (inner) case5 pc(s)
Shipping (inner) case gross weight12.4 kg
Shipping (inner) case height27 cm
Shipping (inner) case length46.3 cm
Shipping (inner) case net weight11.5 kg
Shipping (inner) case width41.3 cm

Certificates

CertificationCE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC

Logistics data

Harmonized System (HS) code85176990
