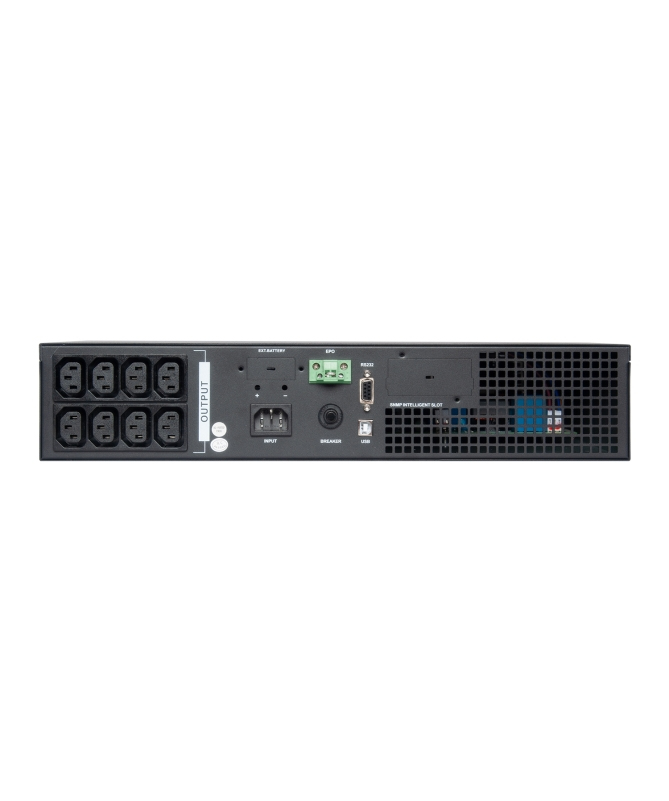

GS-1KVAS-RK uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA

1000 W 8 AC outlet(s)

Model GS-1KVAS-RKEAN 8052780306003

58 specifications

Overview

Brand: Vultech
Category: Uninterruptible Power Supplies (UPSs)
Model: GS-1KVAS-RK
Part number: GS-1KVAS-RK
EAN / UPC: 8052780306003
Also known as: Vultech GS-1KVAS-RK uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)

58 specifications in 7 groups

Specification	Value
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	1000 W
Waveform	Pure sine
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Input frequency	47/70 Hz
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Output frequency	47/63 Hz
Automatic Voltage Regulation (AVR)	Yes
Response time	4 ms
Number of input phases	1
Number of output phases	1
Efficiency	88%
Efficiency (On-line mode)	85%
Efficiency (ECO mode)	98%
Power factor	1
ECO mode	Yes
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	1%
Total Harmonic Distortion (THD) (linear load)	3%
Total Harmonic Distortion (THD) (non-linear load)	5%
Noise level	50 dB
Power protection features	Overload, Short circuit

Specification	Value
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB port type	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
RS-232 ports	1
Emergency Power Off (EPO) connector	Yes

Specification	Value
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	7 Ah
Battery voltage	12 V
Number of batteries supported	2

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	20 - 95%
Operating altitude	0 - 1000 m
