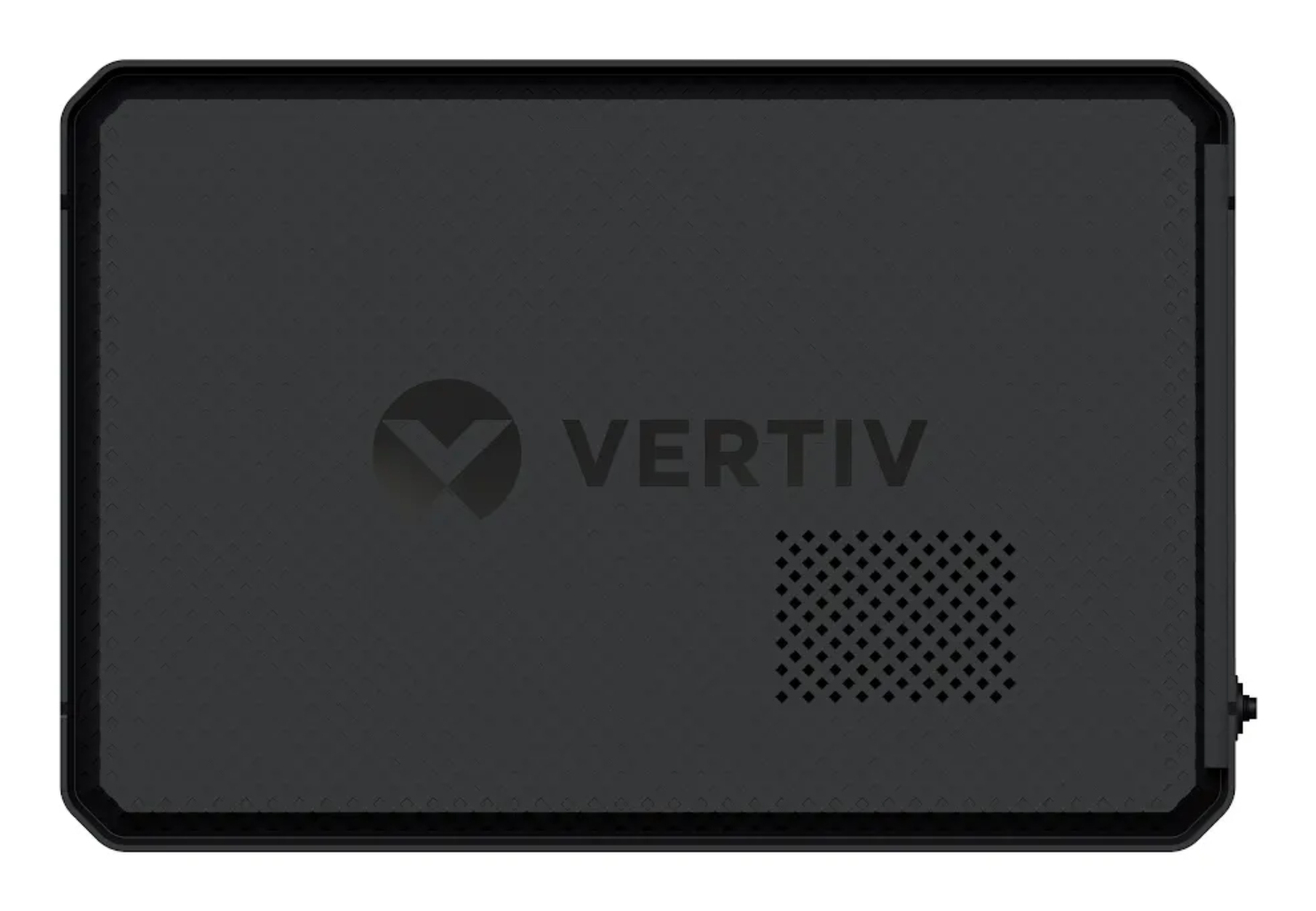

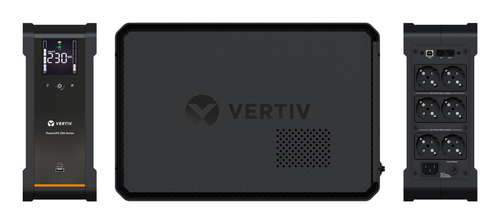

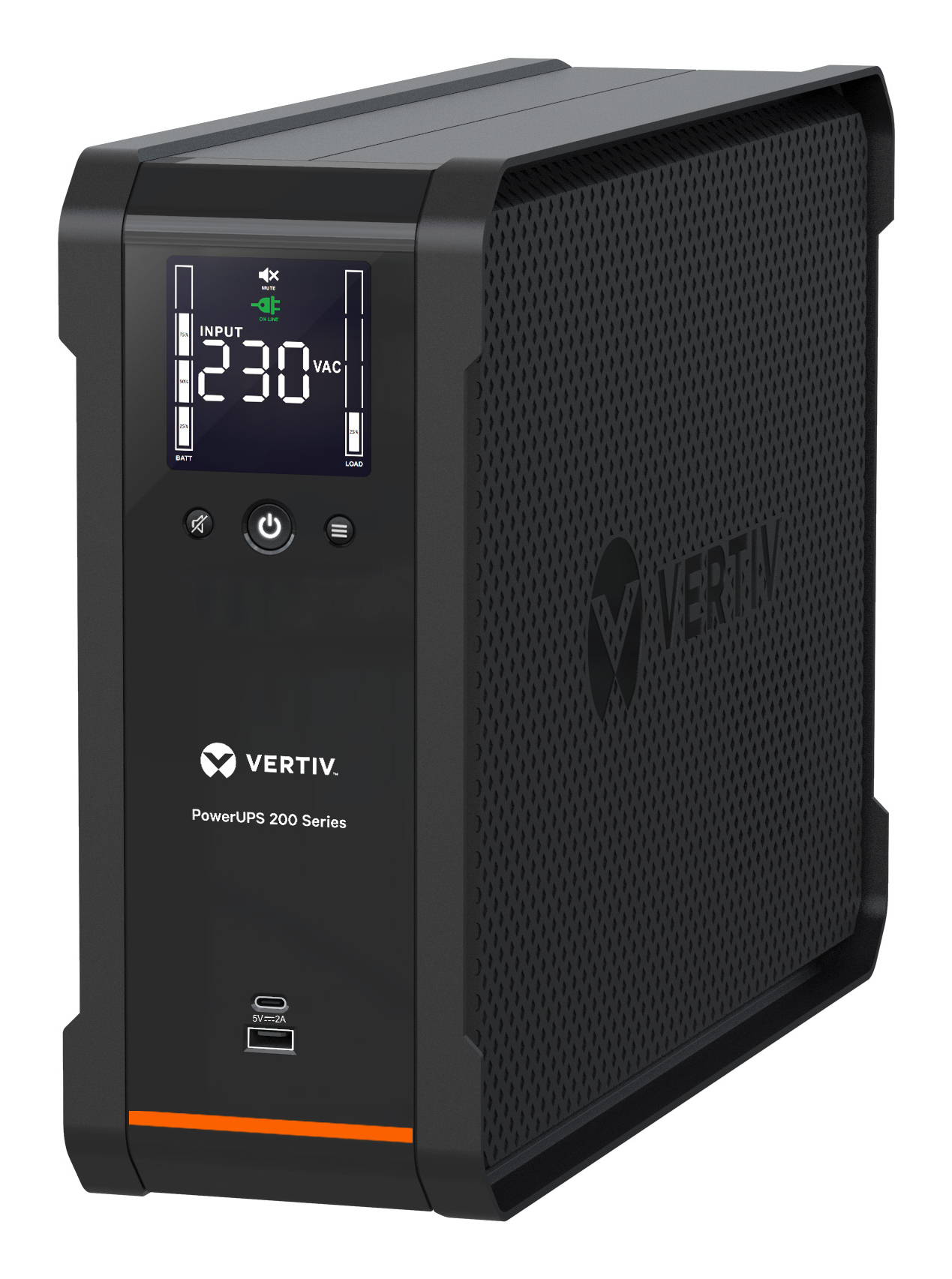

Vertiv PowerUPS 200 Line Interactive PSA6-1600IT-SCH, 1600VA/1000W, AVR, USB Charging, Color LCD, User-Replaceable Battery, 6 Schuko Outlets, Three-Year Warrant
Vertiv

PowerUPS 200 Line Interactive PSA6-1600IT-SCH, 1600VA/1000W, AVR, USB Charging, Color LCD, User-Replaceable Battery, 6 Schuko Outlets, Three-Year Warrant

Model PSA6-1600IT-SCHEAN 767041045123

38 specifications
  • TypeTower
  • Weight11.8 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesType F
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Tower
Weight
11.8 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
Type F
Battery technology
Sealed Lead Acid (VRLA)
Brand
Vertiv
Model
PSA6-1600IT-SCH
Part number
PSA6-1600IT-SCH
EAN / UPC
767041045123
Also known as
Vertiv PowerUPS 200 Line Interactive PSA6-1600IT-SCH, 1600VA/1000W, AVR, USB Charging, Color LCD, User-Replaceable Battery, 6 Schuko Outlets, Three-Year Warrant

Specifications

38 specifications in 8 groups

Features

UPS topologyLine-Interactive
Output power capacity1.6 kVA
Output power1000 W
WaveformSine
Input operation voltage (min)140 V
Input operation voltage (max)290 V
Input frequency50/60 Hz
Output operation voltage (min)195 V
Output operation voltage (max)255 V
Output frequency50/60 Hz
Surge energy rating600 J
Efficiency95%
Surge protectionYes
Power protection featuresOver current, Overcharge, Overload, Short circuit

Ports & interfaces

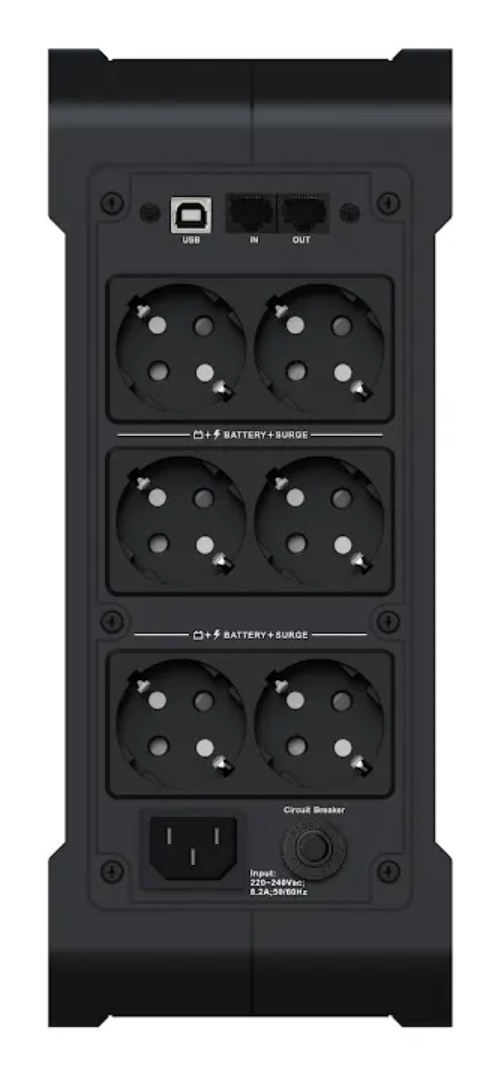

AC outlet typesType F
Power plugC14 coupler
AC outlets quantity6 AC outlet(s)

Battery

Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load2 min
Typical backup time at half load10 min

Design

Form factorTower
Product colourBlack
Cable length1.8 m
Display typeLCD

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m

Certificates

Compliance certificatesCB, CE, EAC, RCM, REACH, RoHS, UKCA, WEEE

Weight & dimensions

Width120 mm
Depth430 mm
Height290 mm
Weight11.8 kg

Packaging data

Package width215 mm
Package depth510 mm
Package height370 mm
Package weight14 kg
