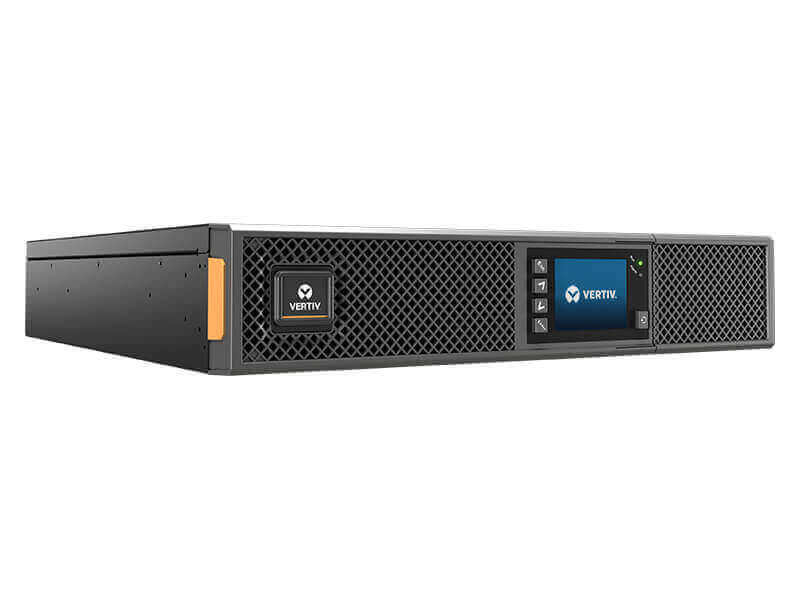

Vertiv Liebert GXT5-500LVRT2UXL uninterruptible power supply (UPS) 0.5 kVA
Vertiv

Liebert GXT5-500LVRT2UXL uninterruptible power supply (UPS) 0.5 kVA

500 W 6 AC outlet(s)

Model GXT5-500LVRT2UXLEAN 767041026238

20 specifications
  • TypeRackmount/Tower
  • Weight16.8 kg
  • ColourBlack
  • Output power capacity0.5 kVA
  • AC outlet typesNEMA 5-15R
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Rackmount/Tower
Weight
16.8 kg
Colour
Black
Output power capacity
0.5 kVA
AC outlet types
NEMA 5-15R
Battery technology
Sealed Lead Acid (VRLA)
Brand
Vertiv
Model
GXT5-500LVRT2UXL
Part number
GXT5-500LVRT2UXL
EAN / UPC
767041026238
Also known as
Vertiv Liebert GXT5-500LVRT2UXL uninterruptible power supply (UPS) 0.5 kVA 500 W 6 AC outlet(s)

Specifications

20 specifications in 5 groups

Features

SpecificationValue
Output power capacity0.5 kVA
Output power500 W
WaveformSine
Input operation voltage (min)60 V
Input operation voltage (max)150 V
Input frequency40 - 70 Hz
Output operation voltage (min)110 V
Output operation voltage (max)125 V

Ports & interfaces

SpecificationValue
AC outlet typesNEMA 5-15R
AC outlets quantity6 AC outlet(s)

Battery

SpecificationValue
Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load17.9 min
Typical backup time at half load40.4 min

Design

SpecificationValue
Form factorRackmount/Tower
Product colourBlack
Display typeLCD

Weight & dimensions

SpecificationValue
Width430 mm
Depth400 mm
Height85 mm
Weight16.8 kg
