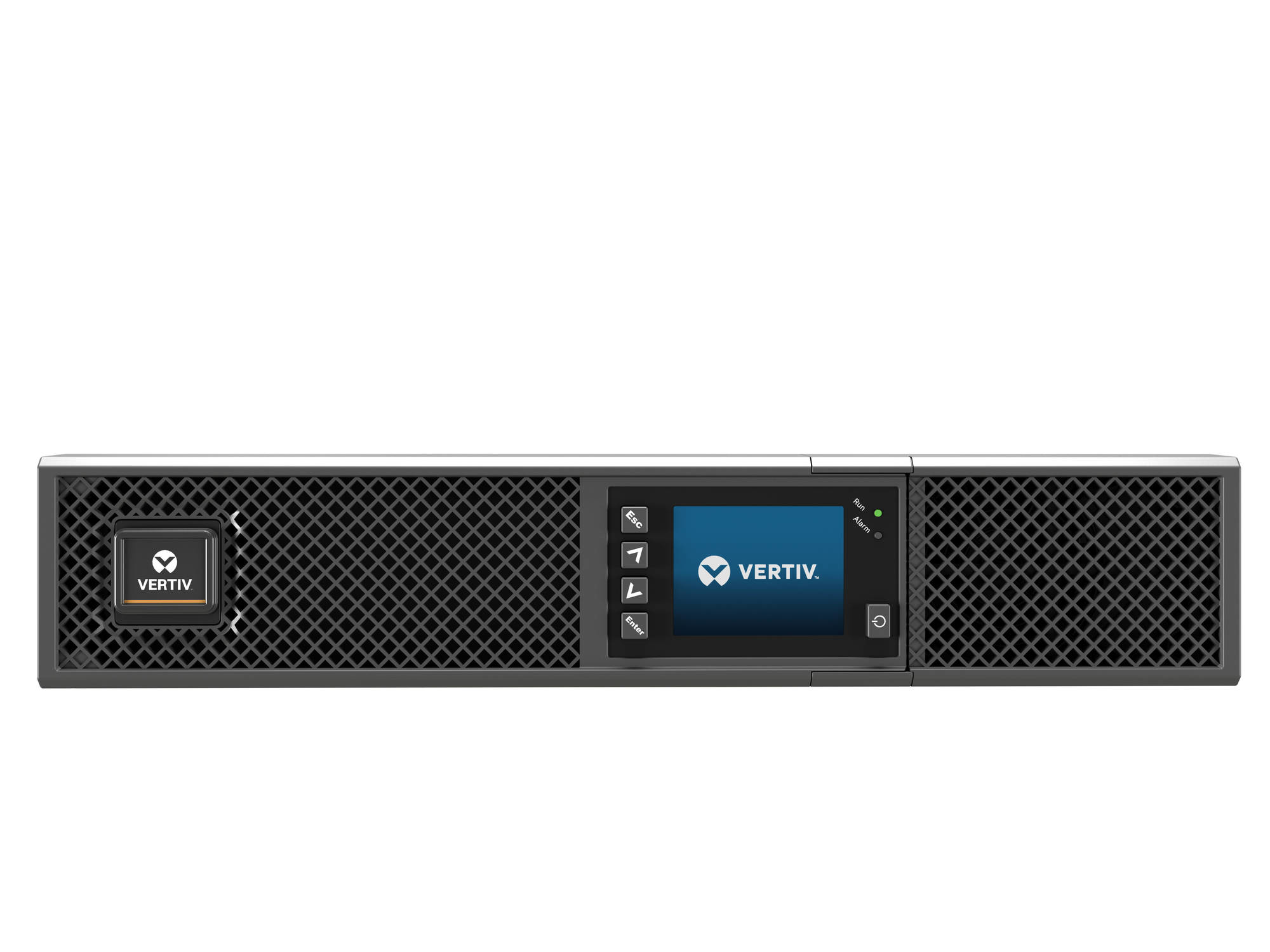

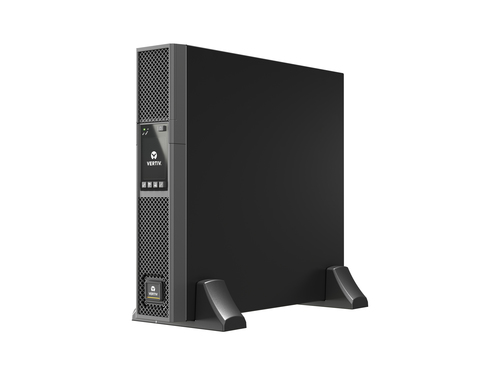

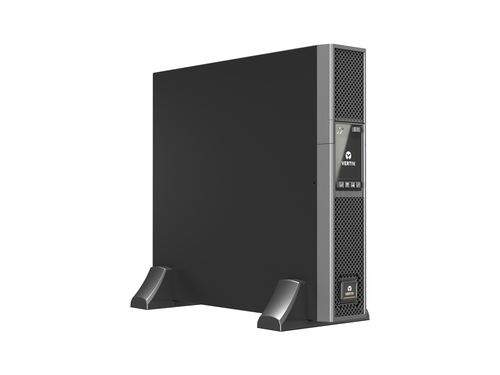

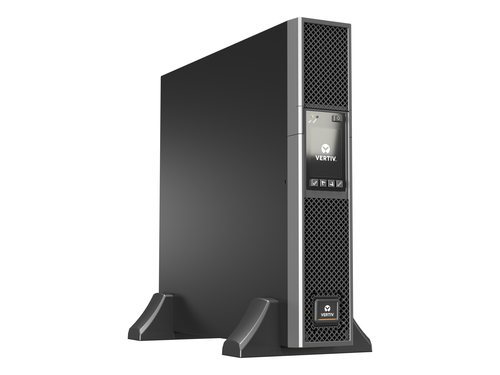

Vertiv Liebert GXT5 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA
Vertiv

Liebert GXT5 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA

1000 W 8 AC outlet(s)

Model GXT5Part no. GXT5-2000LVRT2UXLTAANEAN 767041039344

63 specifications
  • Battery9 VAh
  • Noise58 dB
  • TypeRackmount/Tower
  • Weight21 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 VAh
Noise
58 dB
Type
Rackmount/Tower
Weight
21 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
Vertiv
Model
GXT5
Part numbers
GXT5-2000LVRT2UXLTAAN, GXT5-1000IRT2UXLE, GXT5-1500IRT2UXLE, GXT5-16KIRT9UXLE, GXT5-2000IRT2UXLE, GXT5-20KIRT9UXLE +3 more
EAN / UPC
767041039344, 767041027174, 7612205774827, 767041027181 +12 more
Also known as
Vertiv Liebert GXT5 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)

Specifications

63 specifications in 12 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Output power1000 W
WaveformPure sine
Input operation voltage (min)115 V
Input operation voltage (max)288 V
Input frequency40 - 70 Hz
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation3%
Number of input phases1
Number of output phases1
Efficiency95%
Efficiency (On-line mode)95%
Efficiency (ECO mode)98%
Input power factor0.99
Emergency Power Off (EPO)Yes
Noise level58 dB
Power protection featuresOverload
Audible alarm(s)Yes

Ports & interfaces

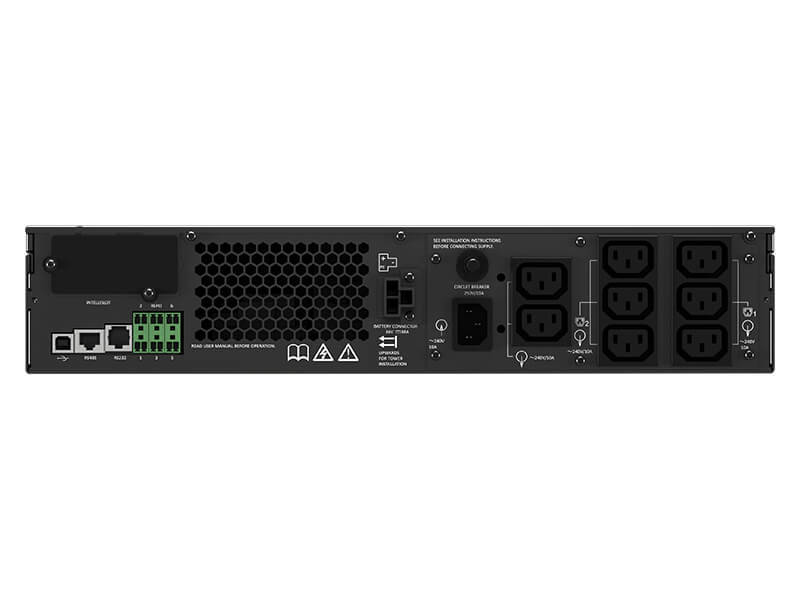

AC outlet typesC13 coupler, C19 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interface typeRS-232, RS-485
Serial ports quantity1
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 VAh
Battery voltage12 V
Typical backup time at full load6 min
Typical backup time at half load15 min
Battery recharge time3 h
Hot-swap batteryYes

Design

Form factorRackmount/Tower
Product colourBlack
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

Compliance certificatesRoHS
CertificationIEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI)

Sustainability

Sustainability certificatesENERGY STAR

Safety regulation & standards

SafetyIEC62040-1:2008, GS; UL1778, c-UL

Weight & dimensions

Width430 mm
Depth630 mm
Height217 mm
Weight21 kg

Packaging data

Package width517 mm
Package depth262 mm
Package height617 mm
Package weight21.4 kg

Logistics data

Harmonized System (HS) code85078000

Other features

Battery typeVRLA
Output connectionsIEC320 C13
Input connection typeC14
Nominal input voltage230 V
Nominal output voltage230 V
Overload protectionYes
BypassYes
Non-operating relative humidity (non-condensing)0 - 95%

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model GXT5-3000IRT2UXL · certified Apr 1, 2019 · United States, Taiwan, Japan, Canada

Average efficiency93.6 %

ENERGY STAR certified

Uninterruptible power supplies · model GXT5-2000IRT2UXL · certified Apr 1, 2019 · United States, Taiwan, Japan, Canada

Average efficiency92.9 %

ENERGY STAR certified

Uninterruptible power supplies · model GXT5-1000IRT2UXL · certified Apr 1, 2019 · United States, Taiwan, Japan, Canada

Average efficiency92.1 %
