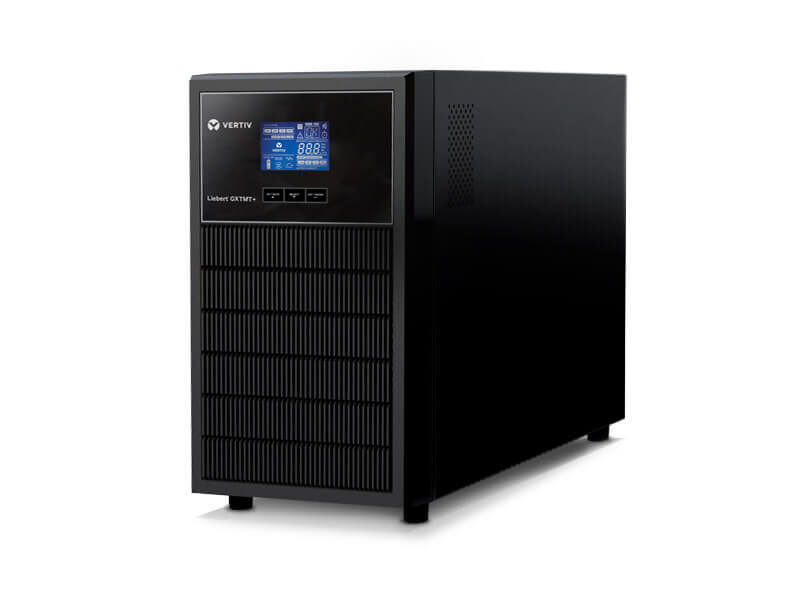

GXT MT+ 3 kVA G2 ES
Model GXT MT+ 3 kVA G2 ESPart no. GXT-3000MTPLUS230S
38 specifications
- Battery9 Ah
- Noise50 dB
- TypeCompact
- Weight27.5 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
Overview
- Battery
- 9 Ah
- Noise
- 50 dB
- Type
- Compact
- Weight
- 27.5 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- Brand
- Vertiv
- Model
- GXT MT+ 3 kVA G2 ES
- Part number
- GXT-3000MTPLUS230S
- Also known as
- Vertiv Liebert GXT MT+ 3 kVA G2 ES uninterruptible power supply (UPS) Double-conversion (Online) 6 AC outlet(s)
Specifications
38 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 47/63 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Number of input phases | 1 |
| Noise level | 50 dB |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | C13 coupler, C20 coupler, Terminal, Type F |
| AC outlets quantity | 6 AC outlet(s) |
| Number of type F outputs | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 6 |
| Battery recharge time | 4 h |
Design
| Specification | Value |
|---|---|
| Form factor | Compact |
| Product colour | Black |
| Display type | LCD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 421 mm |
| Height | 336 mm |
| Weight | 27.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 320 mm |
| Package depth | 560 mm |
| Package height | 460 mm |
| Package weight | 29.5 kg |
