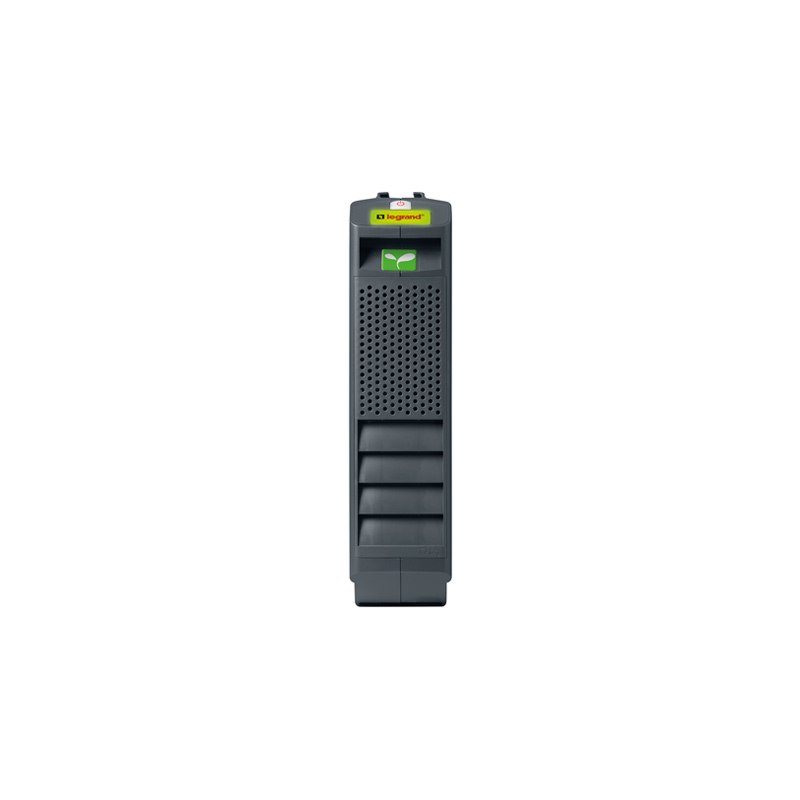

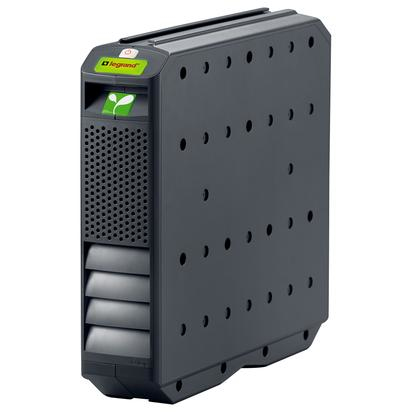

Legrand Whad HE 800
Legrand

Whad HE 800

Model Whad HE 800Part no. 310163EAN 3414970853912

30 specifications
  • Battery5 Ah
  • Noise42 dB
  • TypeCompact
  • Weight12 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
5 Ah
Noise
42 dB
Type
Compact
Weight
12 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
Legrand
Model
Whad HE 800
Part number
310163
EAN / UPC
3414970853912
Also known as
Legrand Whad HE 800 uninterruptible power supply (UPS) Double-conversion (Online) 0.8 kVA 800 W

Specifications

30 specifications in 6 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity0.8 kVA
Output power800 W
WaveformSine
Input operation voltage (min)184 V
Input operation voltage (max)264 V
Input frequency50/60 Hz
Output operation voltage (max)230 V
Output frequency50/60 Hz
Power factor0.99
Crest factor3.5:1
Noise level42 dB

Ports & interfaces

AC outlet typesC13 coupler
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity5 Ah
Battery voltage12 V
Number of batteries supported3

Design

Form factorCompact
Product colourBlack
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width160 mm
Depth402 mm
Height319 mm
Weight12 kg
