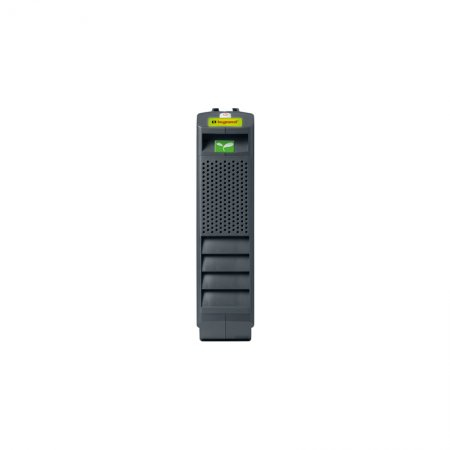

Legrand Whad HE 1500
Legrand

Whad HE 1500

Model Whad HE 1500Part no. 310162EAN 3414970853936

30 specifications
  • Battery5 Ah
  • Noise42 dB
  • TypeCompact
  • Weight23 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
5 Ah
Noise
42 dB
Type
Compact
Weight
23 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
Legrand
Model
Whad HE 1500
Part numbers
310162, 310165
EAN / UPC
3414970853936
Also known as
Legrand Whad HE 1500 uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W

Specifications

30 specifications in 6 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1.5 kVA
Output power1500 W
WaveformSine
Input operation voltage (min)184 V
Input operation voltage (max)264 V
Input frequency50/60 Hz
Output operation voltage (min)230 V
Output operation voltage (max)230 V
Power factor0.99
Crest factor3.5:1
Noise level42 dB

Ports & interfaces

AC outlet typesC13 coupler
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity5 Ah
Battery voltage12 V
Number of batteries supported3

Design

Form factorCompact
Product colourBlack
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width160 mm
Depth425 mm
Height460 mm
Weight23 kg
