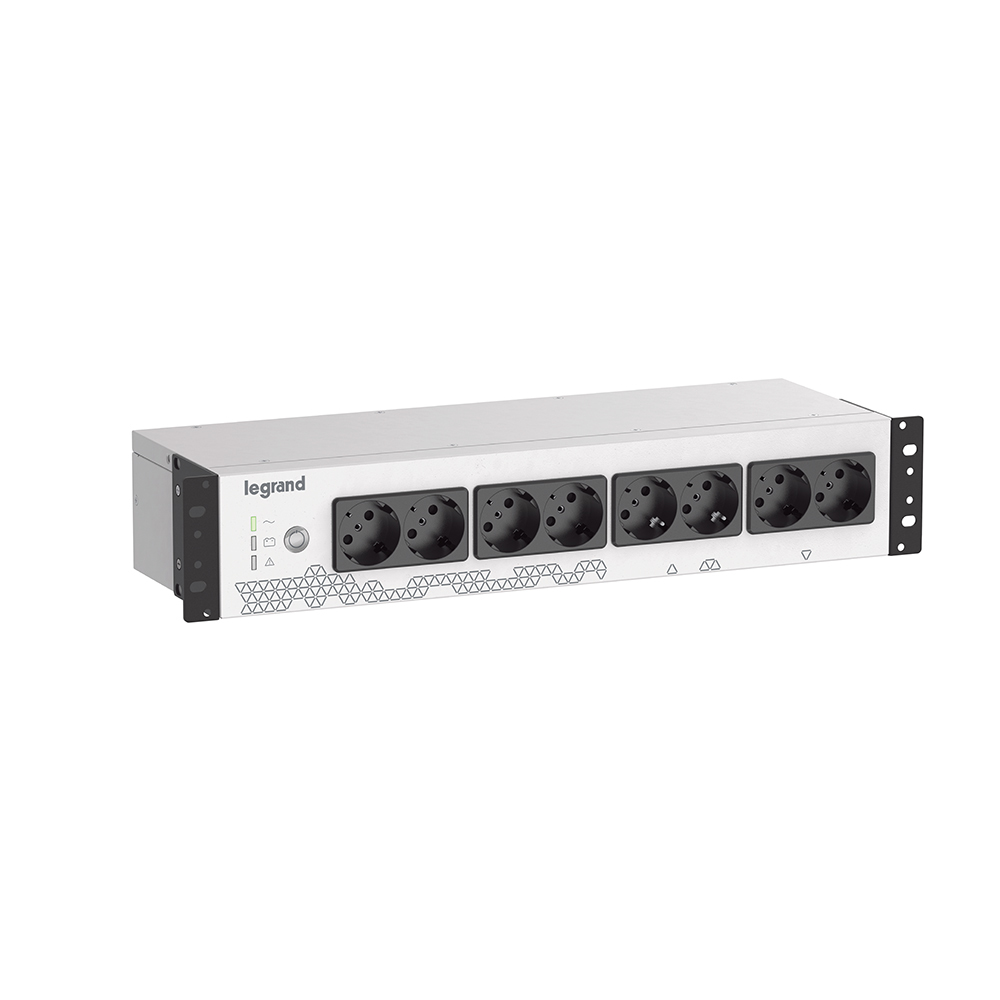

Legrand UPS KEOR PDU 800VA GR/IT INPUT 8 GR/IT OUTPUT

Legrand UPS KEOR PDU 800VA GR/IT INPUT 8 GR/IT OUTPUT

Model UPS KEOR PDU 800VA GR/IT INPUT 8 GR/IT OUTPUTPart no. 310332EAN 3414971529403

60 specifications
  • Battery9 Ah
  • Noise40 dB
  • TypeRackmount
  • Weight5.5 kg
  • ColourBlack, White
  • UPS topologyStandby (Offline)
See all specifications

Overview

Battery
9 Ah
Noise
40 dB
Type
Rackmount
Weight
5.5 kg
Colour
Black, White
UPS topology
Standby (Offline)
Brand
Legrand
Model
UPS KEOR PDU 800VA GR/IT INPUT 8 GR/IT OUTPUT
Part number
310332
EAN / UPC
3414971529403
Also known as
Legrand Keor UPS PDU 800VA GR/IT INPUT 8 GR/IT OUTPUT uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 480 W 16 AC outlet(s)

Specifications

60 specifications in 10 groups

Features

UPS topologyStandby (Offline)
Output power capacity0.8 kVA
Output power480 W
WaveformSine
Input operation voltage (min)160 V
Input operation voltage (max)290 V
Input frequency45/65 Hz
Output operation voltage (min)207 V
Output operation voltage (max)253 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation10%
Maximum current10 A
Number of input phases1
Number of output phases1
Efficiency98%
Output power factor0.6
Noise level40 dB
Power protection featuresOverdischarge, Overload, Short circuit
Potential-free outputNo
Auto shut-offNo
Power source typeAC

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity16 AC outlet(s)
Number of type F outputs8
USB portYes
USB port typeUSB Type-B

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Number of batteries supported1
Typical backup time at half load10 min

Design

Form factorRackmount
Product colourBlack, White
Rack capacity2U
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

Compliance certificatesCE
CertificationEN 62040-1, EN 62040-2

Sustainability

Sustainability complianceYes

Weight & dimensions

Width88 mm
Depth150 mm
Height440 mm
Weight5.5 kg

Packaging data

Package width88 mm
Package depth5.81 mm
Package height440 mm
Package weight6.07 kg

Logistics data

Products per pallet48 pc(s)
Harmonized System (HS) code85078000
Pallet net height102 cm
Pallet net length100 cm
Pallet net weight306.6 kg
Pallet net width120 cm
Master (outer) case width159 mm
Master (outer) case length528 mm
Master (outer) case height255 mm
Master (outer) case gross weight6.39 kg
Products per master (outer) case1 pc(s)
