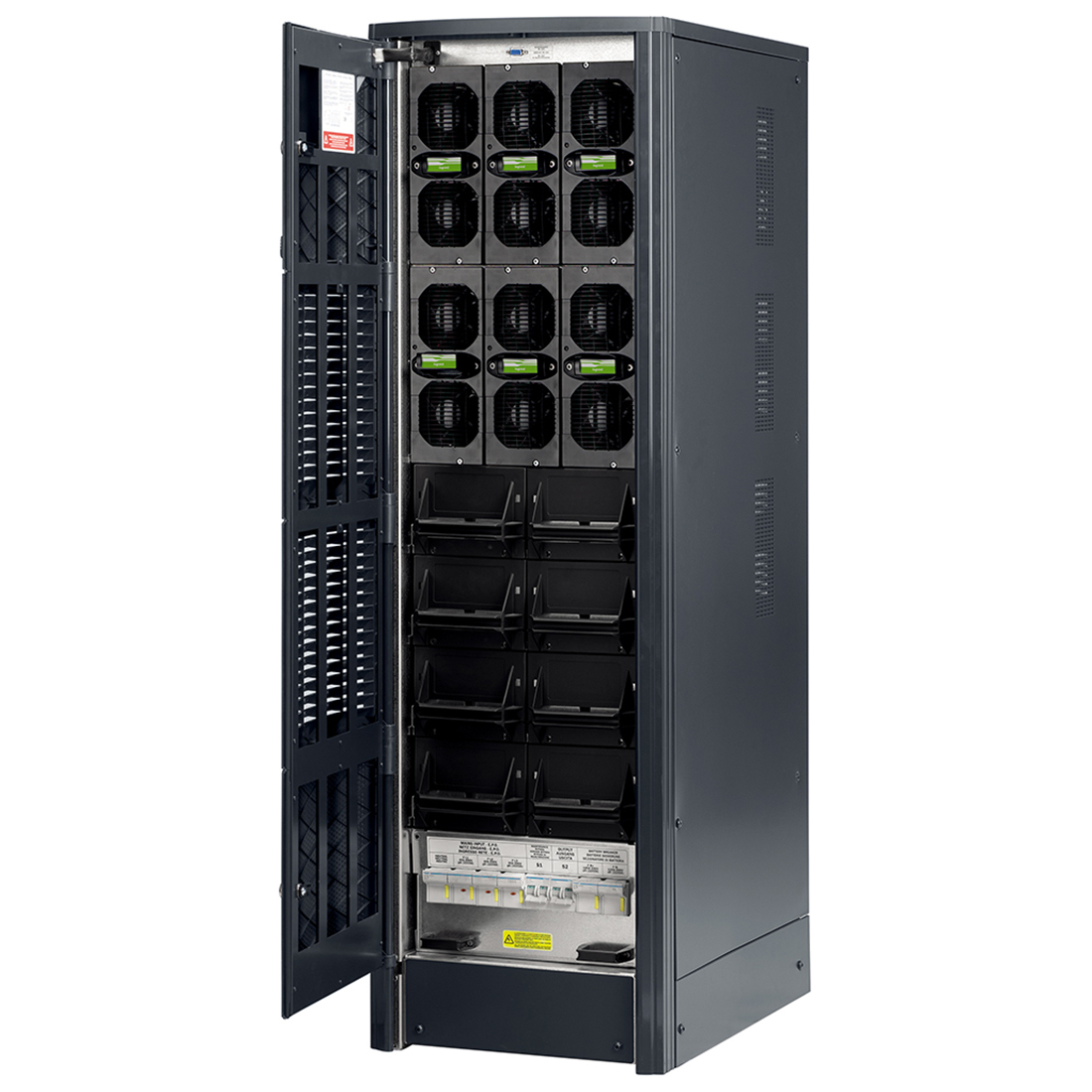

Legrand TRIMOD HE 30kVA/kW 400V 5min
Legrand

TRIMOD HE 30kVA/kW 400V 5min

Model TRIMOD HE 30kVA/kW 400V 5minPart no. 310417EAN 3245063104174

68 specifications
  • Noise62 dB
  • TypeTower
  • Weight325 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHard Wire 5-wire (3PH + N + G)
See all specifications

Overview

Noise
62 dB
Type
Tower
Weight
325 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hard Wire 5-wire (3PH + N + G)
Brand
Legrand
Model
TRIMOD HE 30kVA/kW 400V 5min
Part number
310417
EAN / UPC
3245063104174
Also known as
Legrand TRIMOD HE 30kVA/kW 400V 5min uninterruptible power supply (UPS) Double-conversion (Online) 30000 W

Specifications

68 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity30 kVA
Output power30000 W
WaveformPure sine
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Output frequency regulation-2 - 2 Hz
Output voltage regulation-1 - 1%
Maximum current57.6 A
Number of input phases3
Number of output phases3
Efficiency96%
Efficiency (ECO mode)99%
Input power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Input current Total Harmonic Distortion (THD)3%
Noise level62 dB
Audible alarm(s)Yes
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Auto-restartYes
Power source typeAC

Ports & interfaces

AC outlet typesHard Wire 5-wire (3PH + N + G)
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports2
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage12 V
Typical backup time at full load0.13333333333333 min
Charging current2.5 A
Hot-swap batteryYes
Cold startYes

Design

Form factorTower
Product colourBlack
ModularYes
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m

Certificates

CertificationCE, EAC, CMIM, EN 62040-1, EN 62040-2, EN 62040-3

Weight & dimensions

Width414 mm
Depth628 mm
Height1370 mm
Weight325 kg

Packaging data

Package width414 mm
Package depth356.2 mm
Package height1370 mm
Package weight318.9 kg

Logistics data

Products per pallet1 pc(s)
Pallet net height2.14 m
Pallet net length120 cm
Pallet net weight335.7 kg
Pallet net width170 cm
Master (outer) case width800 mm
Master (outer) case length1200 mm
Master (outer) case height1890 mm
Master (outer) case gross weight335.7 kg
Products per master (outer) case1 pc(s)
