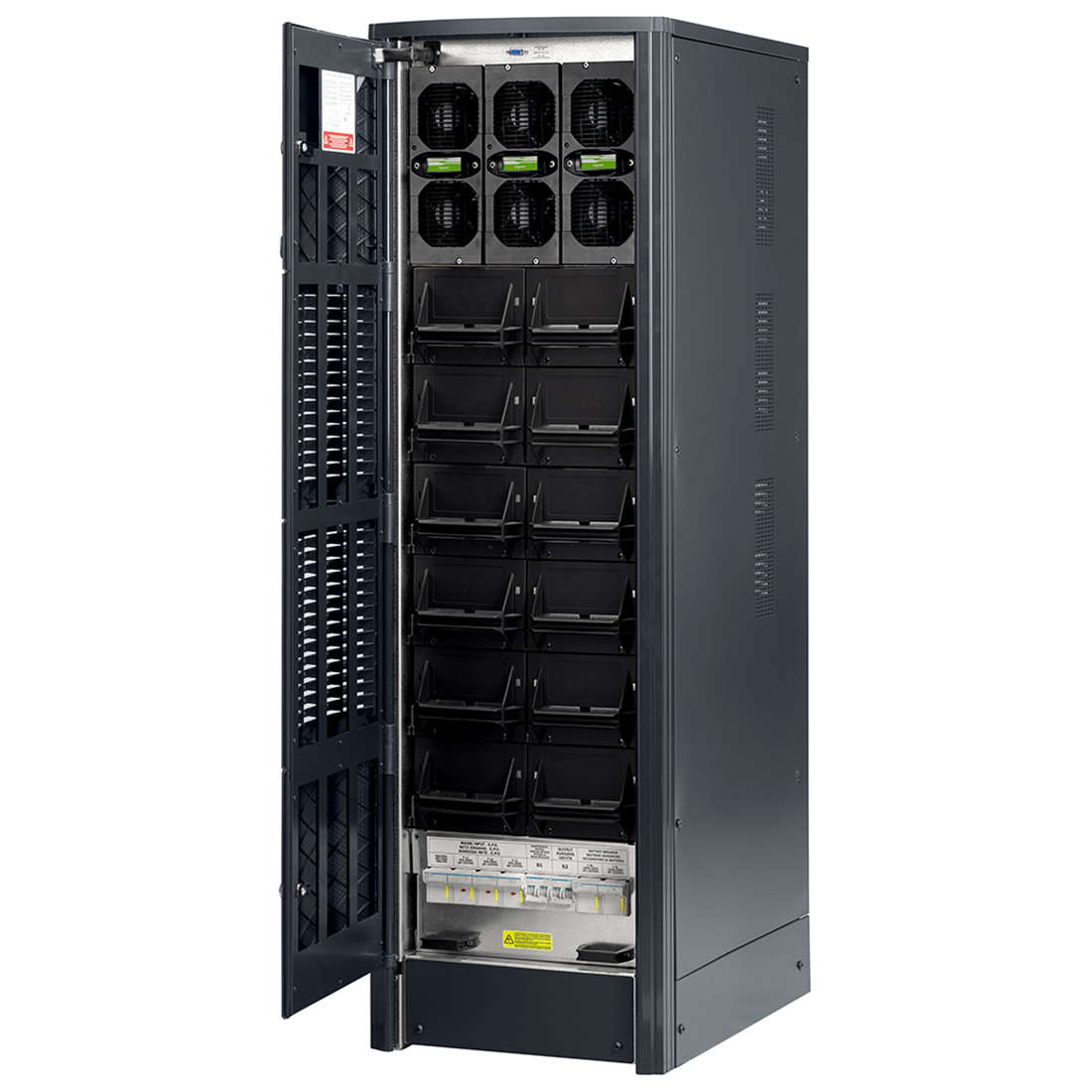

Legrand TRIMOD HE 10kVA/kW 400V 8min
Legrand

TRIMOD HE 10kVA/kW 400V 8min

Model TRIMOD HE 10kVA/kW 400V 8minPart no. 310442EAN 3414970328274

68 specifications
  • Noise62 dB
  • TypeTower
  • Weight167 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHard Wire 5-wire (3PH + N + G)
See all specifications

Overview

Noise
62 dB
Type
Tower
Weight
167 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hard Wire 5-wire (3PH + N + G)
Brand
Legrand
Model
TRIMOD HE 10kVA/kW 400V 8min
Part number
310442
EAN / UPC
3414970328274
Also known as
Legrand TRIMOD HE 10kVA/kW 400V 8min uninterruptible power supply (UPS) Double-conversion (Online) 10000 W

Specifications

68 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformPure sine
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Output frequency regulation-2 - 2 Hz
Output voltage regulation-1 - 1%
Maximum current57.6 A
Number of input phases3
Number of output phases3
Efficiency96%
Efficiency (ECO mode)99%
Input power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Input current Total Harmonic Distortion (THD)3%
Noise level62 dB
Audible alarm(s)Yes
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Auto-restartYes
Power source typeAC

Ports & interfaces

AC outlet typesHard Wire 5-wire (3PH + N + G)
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports2
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage12 V
Typical backup time at full load0.18333333333333 min
Charging current2.5 A
Hot-swap batteryYes
Cold startYes

Design

Form factorTower
Product colourBlack
ModularYes
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m

Certificates

CertificationCE, EAC, CMIM, EN 62040-1, EN 62040-2, EN 62040-3

Weight & dimensions

Width414 mm
Depth628 mm
Height1370 mm
Weight167 kg

Packaging data

Package width414 mm
Package depth356.2 mm
Package height1370 mm
Package weight179.8 kg

Logistics data

Products per pallet1 pc(s)
Pallet net height175 cm
Pallet net length100 cm
Pallet net weight189.3 kg
Pallet net width120 cm
Master (outer) case width800 mm
Master (outer) case length1200 mm
Master (outer) case height1610 mm
Master (outer) case gross weight189.3 kg
Products per master (outer) case1 pc(s)
