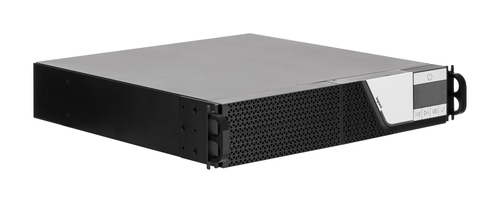

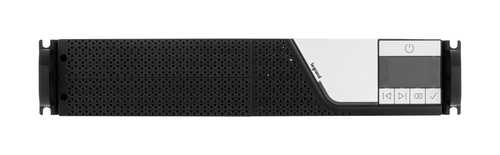

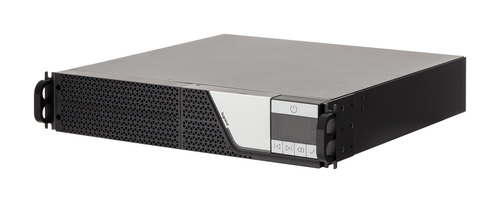

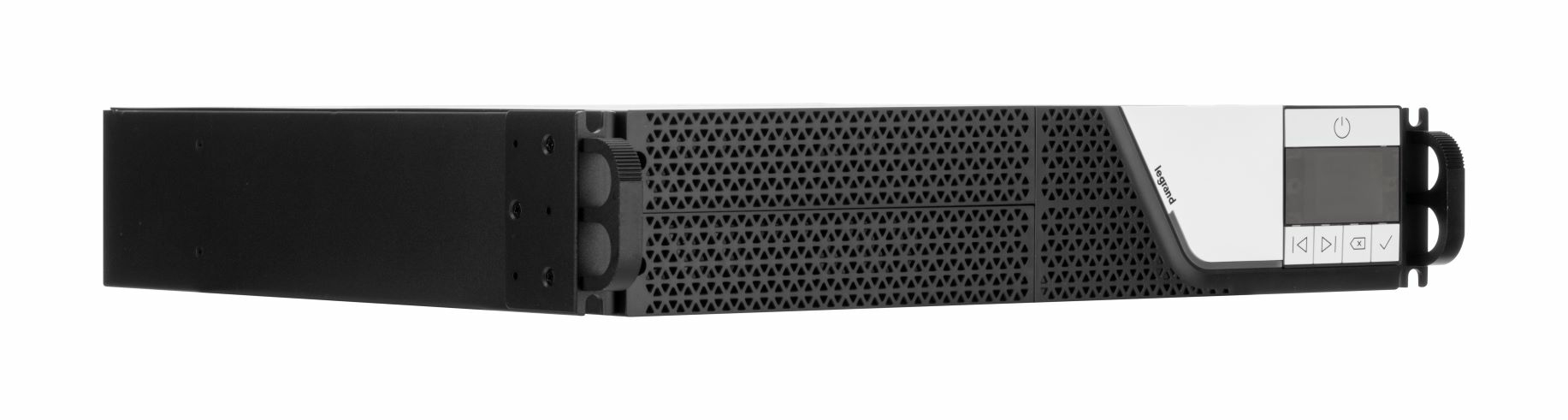

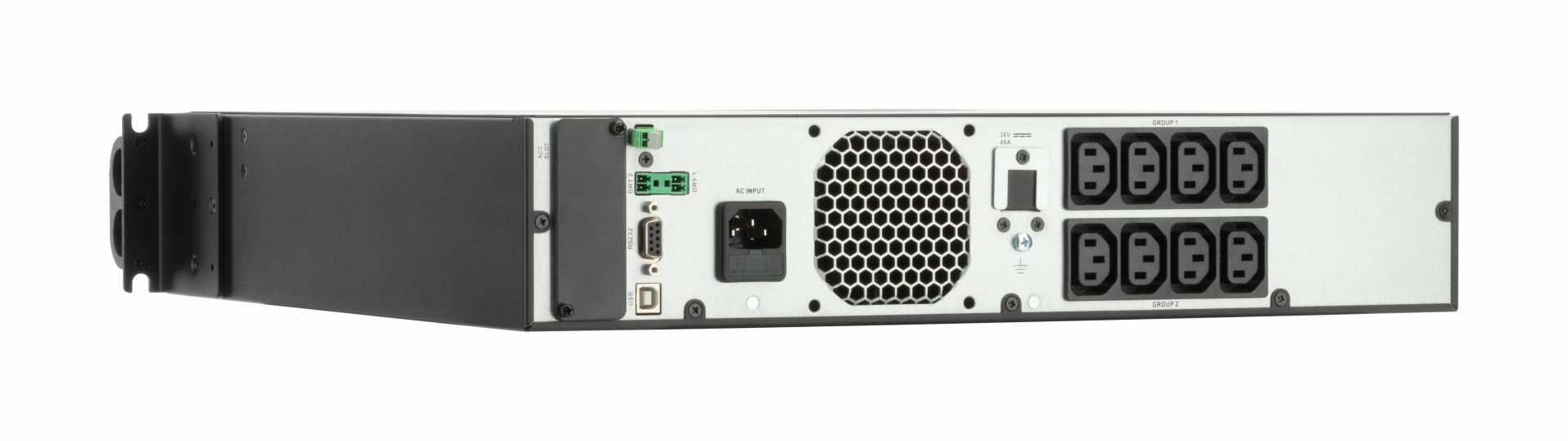

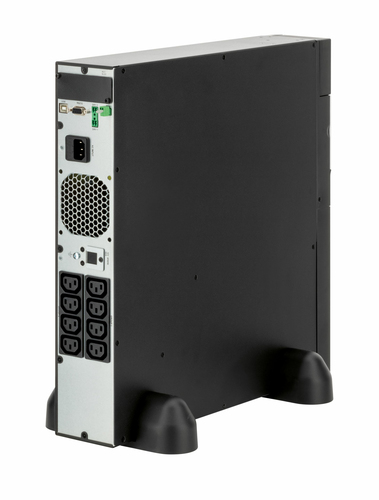

Legrand ASI KEOR SPE rack 2U 1.5KVA
Legrand

ASI KEOR SPE rack 2U 1.5KVA

Model ASI KEOR SPE rack 2U 1.5KVAPart no. 311069EAN 3414972083423

37 specifications
  • TypeRackmount
  • Weight17.5 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesC13 coupler
  • Typical backup time at full load0.00016 min
See all specifications

Overview

Type
Rackmount
Weight
17.5 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
C13 coupler
Typical backup time at full load
0.00016 min
Brand
Legrand
Model
ASI KEOR SPE rack 2U 1.5KVA
Part number
311069
EAN / UPC
3414972083423
Also known as
Legrand Keor ASI SPE rack 2U 1.5KVA uninterruptible power supply (UPS) Line-Interactive 1200 W 8 AC outlet(s)

Specifications

37 specifications in 6 groups

Features

UPS topologyLine-Interactive
Output power capacity1.5 kVA
Output power1200 W
WaveformSine
Input operation voltage (min)175 V
Input operation voltage (max)288 V
Input frequency47/63 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Number of output phases1
Efficiency85%
Efficiency (ECO mode)98%
Power factor0.8
Output power factor0.8
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Potential-free outputYes
Auto shut-offYes
Power source typeAC

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceNo
RS-232 ports1

Battery

Typical backup time at full load0.00016 min

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Display typeLCD

Weight & dimensions

Width440 mm
Depth440 mm
Height88 mm
Weight17.5 kg

Logistics data

Products per master (outer) case1 pc(s)
