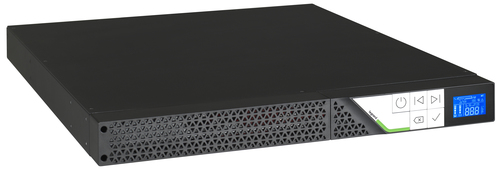

Legrand ASI KEOR SPE rack 1U 1KVA
Legrand

ASI KEOR SPE rack 1U 1KVA

Model ASI KEOR SPE rack 1U 1KVAPart no. 311066EAN 3414972083409

28 specifications
  • TypeRackmount
  • Weight13.5 kg
  • UPS topologyLine-Interactive
  • AC outlet typesC13 coupler
  • Typical backup time at full load0.00016 min
  • Width440 mm
See all specifications

Overview

Type
Rackmount
Weight
13.5 kg
UPS topology
Line-Interactive
AC outlet types
C13 coupler
Typical backup time at full load
0.00016 min
Width
440 mm
Brand
Legrand
Model
ASI KEOR SPE rack 1U 1KVA
Part number
311066
EAN / UPC
3414972083409
Also known as
Legrand Keor ASI SPE rack 1U 1KVA uninterruptible power supply (UPS) Line-Interactive 700 W 5 AC outlet(s)

Specifications

28 specifications in 5 groups

Features

UPS topologyLine-Interactive
Output power capacity1 kVA
Output power700 W
Input operation voltage (min)175 V
Input operation voltage (max)288 V
Input frequency47/63 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Efficiency80%
Efficiency (ECO mode)98%
Output power factor0.7
Output voltage Total Harmonic Distortion (THD)3%
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Potential-free outputYes
Auto shut-offYes
Power source typeAC

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity5 AC outlet(s)
USB portYes
Serial interfaceNo

Battery

Typical backup time at full load0.00016 min

Design

Form factorRackmount

Weight & dimensions

Width440 mm
Depth513 mm
Height44 mm
Weight13.5 kg
