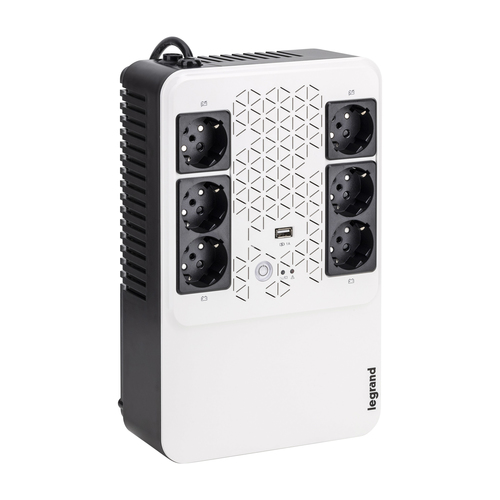

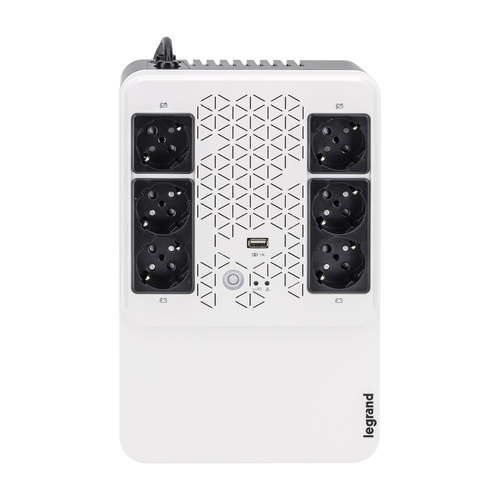

Legrand ASI KEOR MULTIPLUG 800 GR
Legrand

ASI KEOR MULTIPLUG 800 GR

Model ASI KEOR MULTIPLUG 800 GRPart no. 310082EAN 3414971227255

61 specifications
  • Battery7 Ah
  • Noise40 dB
  • TypeCompact
  • Weight5.5 kg
  • ColourWhite
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
7 Ah
Noise
40 dB
Type
Compact
Weight
5.5 kg
Colour
White
UPS topology
Line-Interactive
Brand
Legrand
Model
ASI KEOR MULTIPLUG 800 GR
Part number
310082
EAN / UPC
3414971227255
Also known as
Legrand Keor ASI MULTIPLUG 800 GR uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 480 W 6 AC outlet(s)

Specifications

61 specifications in 9 groups

Features

UPS topologyLine-Interactive
Output power capacity0.8 kVA
Output power480 W
WaveformSine
Input operation voltage (min)170 V
Input operation voltage (max)280 V
Input frequency45/65 Hz
Output operation voltage (min)207 V
Output operation voltage (max)253 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation10%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Number of output phases1
Efficiency97%
Output power factor0.6
Noise level40 dB
Surge protectionYes
Power protection featuresOvercharge, Overdischarge, Overload, Short circuit
Audible alarm(s)Yes
Potential-free outputNo
Auto shut-offNo
Power source typeAC

Ports & interfaces

AC outlet typesType F
Power plugType F
AC outlets quantity6 AC outlet(s)
Number of type F outputs6
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-A

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity7 Ah
Battery voltage12 V
Typical backup time at full load15 min
Battery recharge time6 h

Design

Form factorCompact
Product colourWhite
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

CertificationEN 62040-1, EN 62040-2

Weight & dimensions

Width190 mm
Depth296 mm
Height89.5 mm
Weight5.5 kg

Packaging data

Package width190 mm
Package depth5.03 mm
Package height89.5 mm
Package weight6.08 kg

Logistics data

Products per pallet54 pc(s)
Harmonized System (HS) code85078000
Pallet net height105 cm
Pallet net length100 cm
Pallet net weight345.6 kg
Pallet net width120 cm
Master (outer) case width158 mm
Master (outer) case length390 mm
Master (outer) case height290 mm
Master (outer) case gross weight6.4 kg
Products per master (outer) case1 pc(s)
