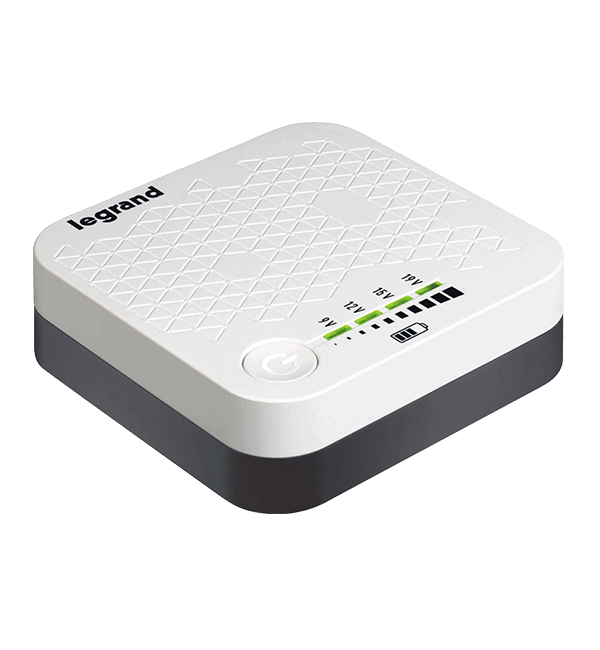

Legrand ASI KEOR DC 25W FR-GR IN LANG PO-HU
Legrand

ASI KEOR DC 25W FR-GR IN LANG PO-HU

Model ASI KEOR DC 25W FR-GR IN LANG PO-HUPart no. 311083EAN 3414971973176

49 specifications
  • Battery2.2 Ah
  • TypeCompact
  • Weight300 g
  • ColourWhite
  • UPS topologyStandby (Offline)
  • Power plugType F
See all specifications

Overview

Battery
2.2 Ah
Type
Compact
Weight
300 g
Colour
White
UPS topology
Standby (Offline)
Power plug
Type F
Brand
Legrand
Model
ASI KEOR DC 25W FR-GR IN LANG PO-HU
Part number
311083
EAN / UPC
3414971973176
Also known as
Legrand Keor ASI DC 25W FR-GR IN LANG PO-HU uninterruptible power supply (UPS) Standby (Offline) 0.025 kVA 1 AC outlet(s)

Specifications

49 specifications in 11 groups

Features

UPS topologyStandby (Offline)
Output power capacity0.025 kVA
Output power25 W
Input operation voltage (min)90 V
Input operation voltage (max)264 V
Input frequency47/63 Hz
Output operation voltage (min)19 V
Output operation voltage (max)96 V
Output frequency47/63 Hz
Number of input phases1
Number of output phases1
Efficiency86.33%
Efficiency (ECO mode)86.33%
Power protection featuresOvercharge, Overheating, Short circuit
Potential-free outputNo
Auto shut-offYes
Power source typeAC/DC

Ports & interfaces

Power plugType F
AC outlets quantity1 AC outlet(s)

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery capacity2.2 Ah
Battery voltage3.7 V
Typical backup time at full load6 min

Design

Form factorCompact
Product colourWhite
LED indicatorsFault

Operational conditions

Operating temperature (T-T)0 - 35 °C

Packaging content

Cables includedInput power cable
ManualYes

Safety regulation & standards

SafetyFCC: Class B, UL/cULus, IEC/EN 62368-1

Certificates

CertificationUL/cULus, EN 55032:2012 / EN 55032:2015, Class B; CISPR 32:2012 4Cor2 / CISPR 32:2015 +Cor 1:2016, Class B; AS/NZS CISPR 32:2015, Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55035:2017; IEC 61000-4-2:2008 ED. 2.0; IEC 61000-4-3:2010 ED. 3.2; IEC 61000-4-4:2012 ED. 3.0; IEC 61000-4-5:2014 +A1:2

Weight & dimensions

Width95 mm
Depth95 mm
Height95 mm
Weight300 g

Packaging data

Package width95 mm
Package depth0.26 mm
Package height28.5 mm
Package weight570.95 g

Logistics data

Products per pallet336 pc(s)
Pallet net height77 cm
Pallet net length100 cm
Pallet net weight211.5 kg
Pallet net width120 cm
Master (outer) case width407 mm
Master (outer) case length495 mm
Master (outer) case height220 mm
Master (outer) case gross weight8.81 kg
Products per master (outer) case14 pc(s)
