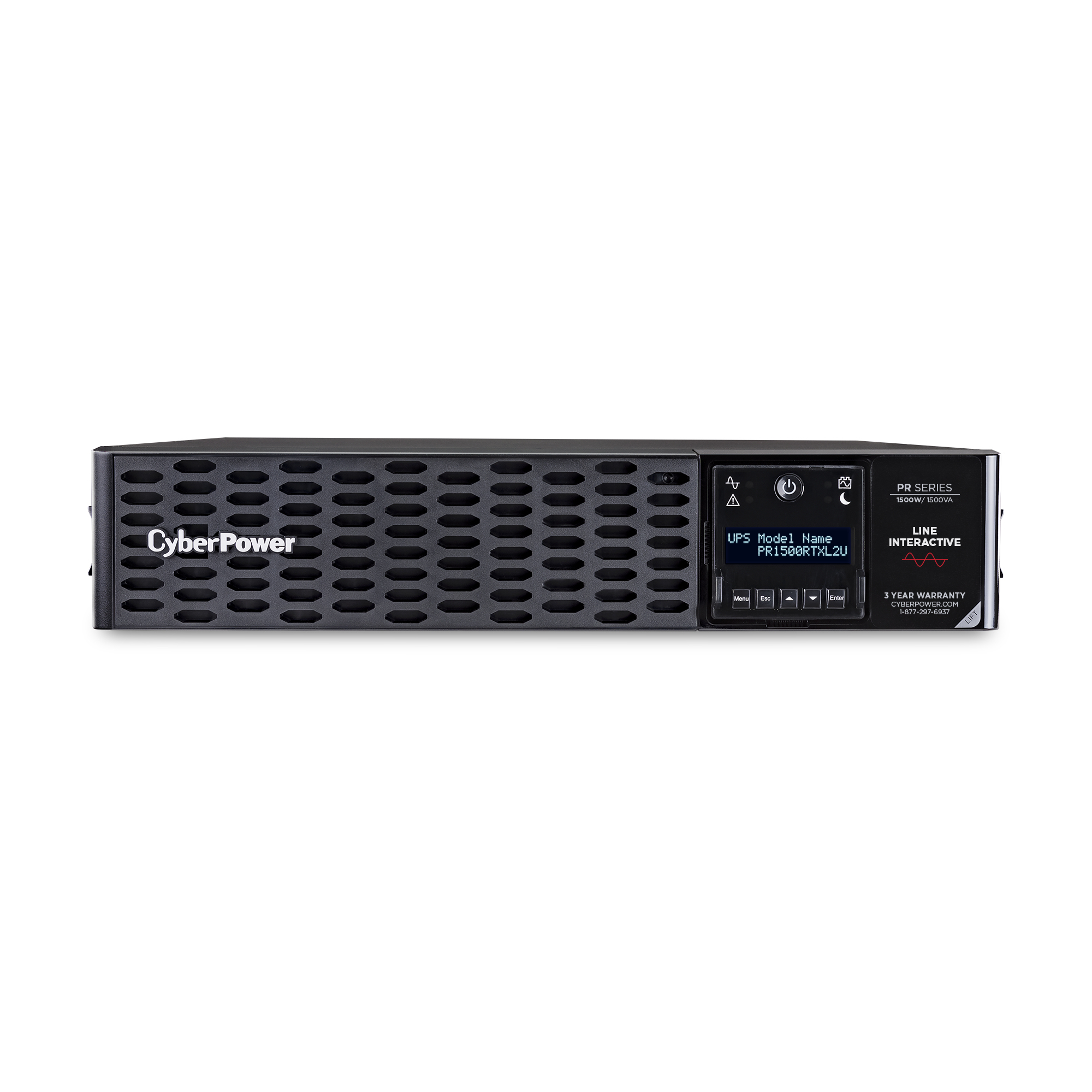

PR1500RTXL2UN uninterruptible power supply (UPS) Line-Interactive 1.5 kVA
1500 W 8 AC outlet(s)
Model PR1500RTXL2UNEAN 649532930548
64 specifications
- Battery9 Ah
- Noise55.5 dB
- TypeRackmount/Tower
- Weight30.7 kg
- ColourBlack
- UPS topologyLine-Interactive
Overview
- Battery
- 9 Ah
- Noise
- 55.5 dB
- Type
- Rackmount/Tower
- Weight
- 30.7 kg
- Colour
- Black
- UPS topology
- Line-Interactive
- Brand
- CyberPower
- Model
- PR1500RTXL2UN
- Part number
- PR1500RTXL2UN
- EAN / UPC
- 649532930548
- Also known as
- CyberPower PR1500RTXL2UN uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1500 W 8 AC outlet(s)
Specifications
64 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 1500 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 155 V |
| Input frequency | 47/63 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 5% |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 15 A |
| Surge energy rating | 2430 J |
| Response time | 4 ms |
| Output power factor | 1 |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| Noise level | 55.5 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | NEMA 5–15P |
| Power plug | NEMA 5-15R |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 4 |
| Typical backup time at full load | 6.5 min |
| Typical backup time at half load | 17.9 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Replacement battery cartridge | RB1290X4J |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Housing material | Metal |
| Rack capacity | 2U |
| Cable length | 3 m |
| Built-in fan | Yes |
| Display type | LCD |
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 3000 - 15000 m |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power load cable, USB cable |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | UL1778, cUL107.1, FCC Class B |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 500 mm |
| Height | 86 mm |
| Weight | 30.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 561.3 mm |
| Package depth | 619.8 mm |
| Package height | 274.3 mm |
| Package weight | 37.1 kg |
