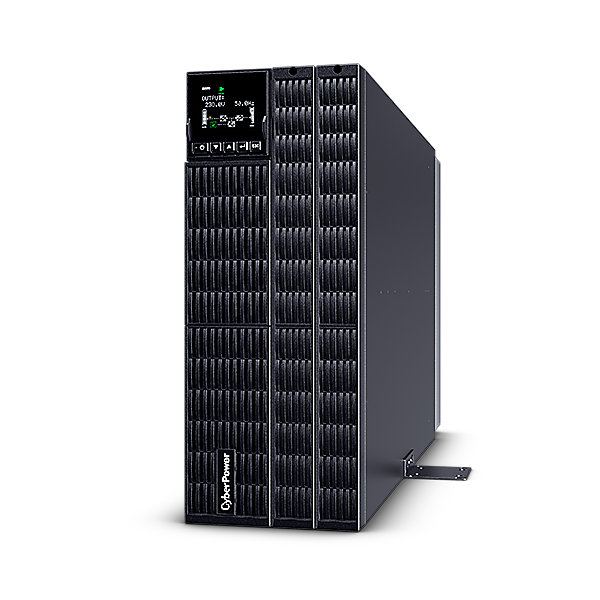

OLS4KERT4UA-IEC uninterruptible power supply (UPS) Double-conversion (Online) 4 kVA
3800 W 15 AC outlet(s)
Model OLS4KERT4UA-IECEAN 4711027791784
78 specifications
- TypeRackmount/Tower
- Weight55 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
- Power plugTerminal
- Battery technologySealed Lead Acid (VRLA)
Overview
- Type
- Rackmount/Tower
- Weight
- 55 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- Power plug
- Terminal
- Battery technology
- Sealed Lead Acid (VRLA)
- Brand
- CyberPower
- Model
- OLS4KERT4UA-IEC
- Part number
- OLS4KERT4UA-IEC
- EAN / UPC
- 4711027791784
- Also known as
- CyberPower OLS4KERT4UA-IEC uninterruptible power supply (UPS) Double-conversion (Online) 4 kVA 3800 W 15 AC outlet(s)
Specifications
78 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 4 kVA |
| Output power | 3800 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 1% |
| Maximum current | 20 A |
| Surge energy rating | 1335 J |
| Heat dissipation | 1777 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency (ECO mode) | 98% |
| Input power factor | 0.99 |
| Output power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Total Harmonic Distortion (THD) (linear load) | 1.5% |
| Total Harmonic Distortion (THD) (non-linear load) | 2% |
| EMI/RFI noise filtering | Yes |
| Detachable power cord | Yes |
| Power source type | AC |
| Socket circuit breaker | Yes |

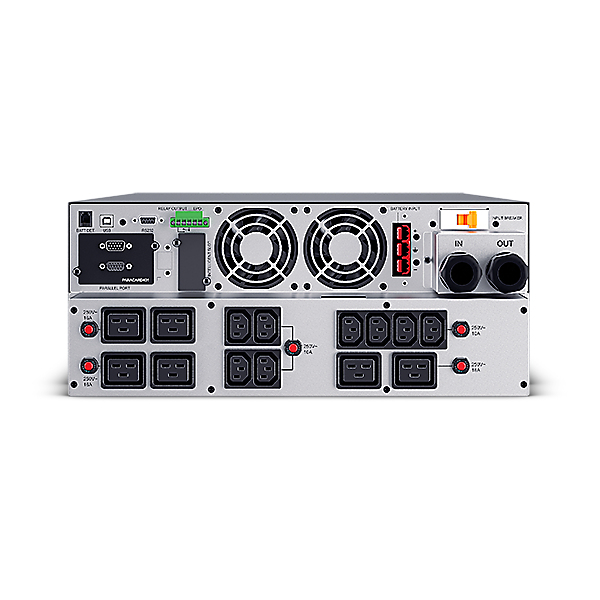

Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | C13 coupler, C19 coupler, Terminal |
| Power plug | Terminal |
| AC outlets quantity | 15 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 3 |
| Serial ports quantity | 3 |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 6 min |
| Typical backup time at half load | 15 min |
| Battery recharge time | 4 h |
| Charging current | 4 A |
| Hot-swap battery | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Housing material | Metal |
| Rack capacity | 4U |
| Cooling type | Active |
| Built-in fan | Yes |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 661 mm |
| Height | 171 mm |
| Weight | 55 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 575 mm |
| Package depth | 890 mm |
| Package height | 404 mm |
| Package weight | 73 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Overload protection | Yes |
| Quantity of delay expansion units (max) | 4 |
