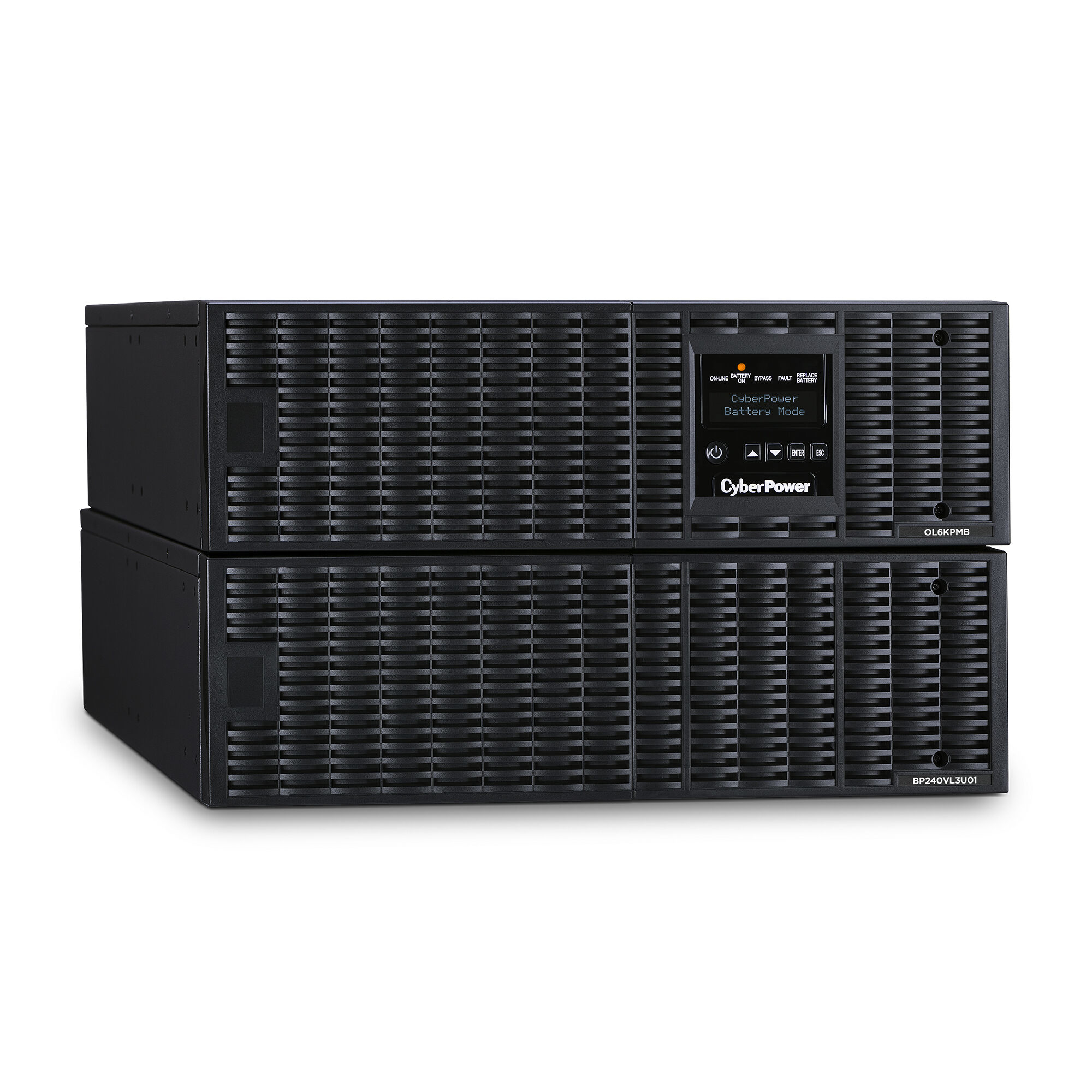

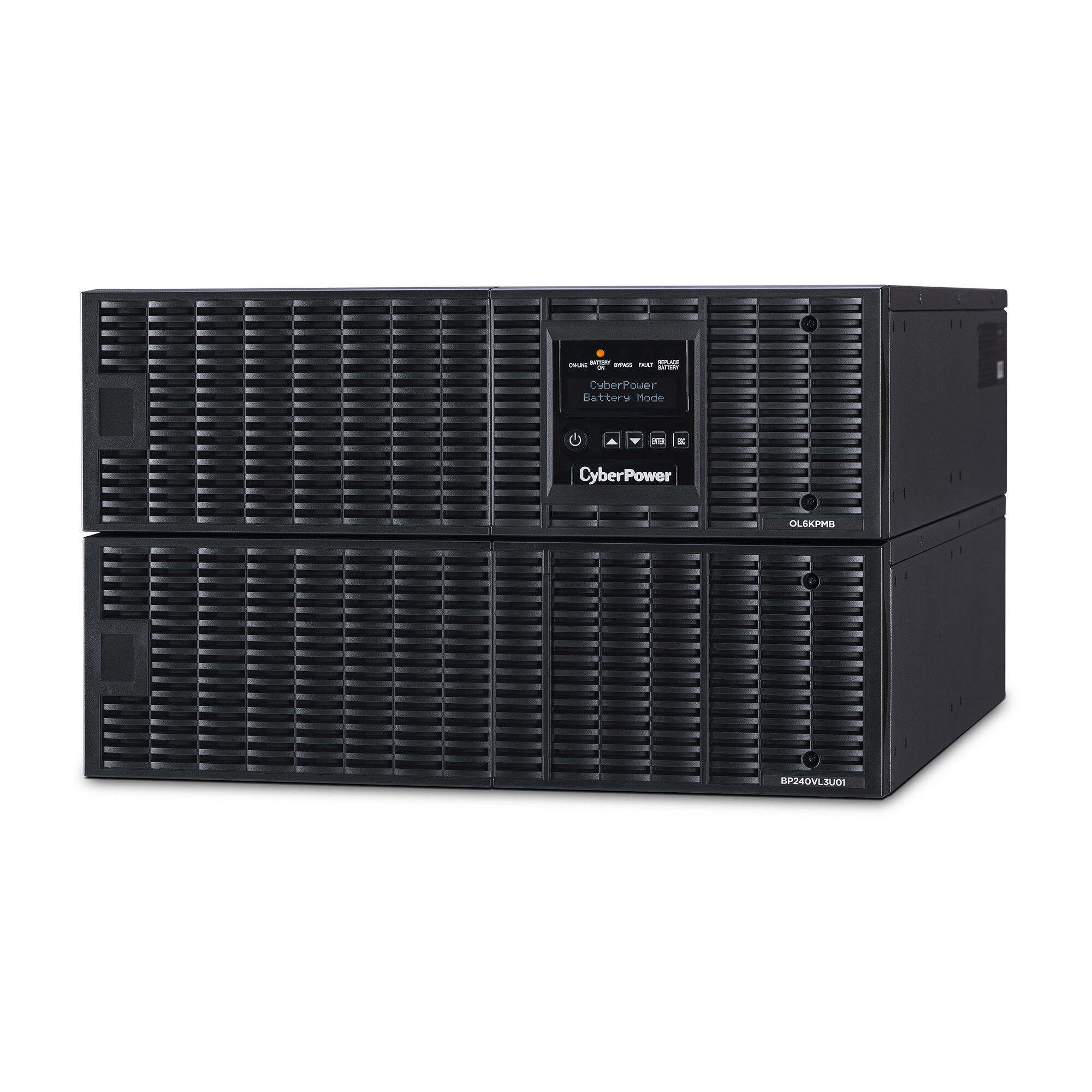

OL6KRTHW uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA
6000 W 13 AC outlet(s)
Model OL6KRTHWEAN 649532620289
62 specifications
- Battery7 Ah
- Noise65 dB
- TypeRackmount
- Weight104.3 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
Overview
- Battery
- 7 Ah
- Noise
- 65 dB
- Type
- Rackmount
- Weight
- 104.3 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- Brand
- CyberPower
- Model
- OL6KRTHW
- Part number
- OL6KRTHW
- EAN / UPC
- 649532620289
- Also known as
- CyberPower OL6KRTHW uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 13 AC outlet(s)
Specifications
62 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Power factor | 1 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| EMI/RFI noise filtering | No |
| Noise level | 65 dB |
| Surge protection | Yes |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Audible alarm modes | Fault, Low battery alarm |

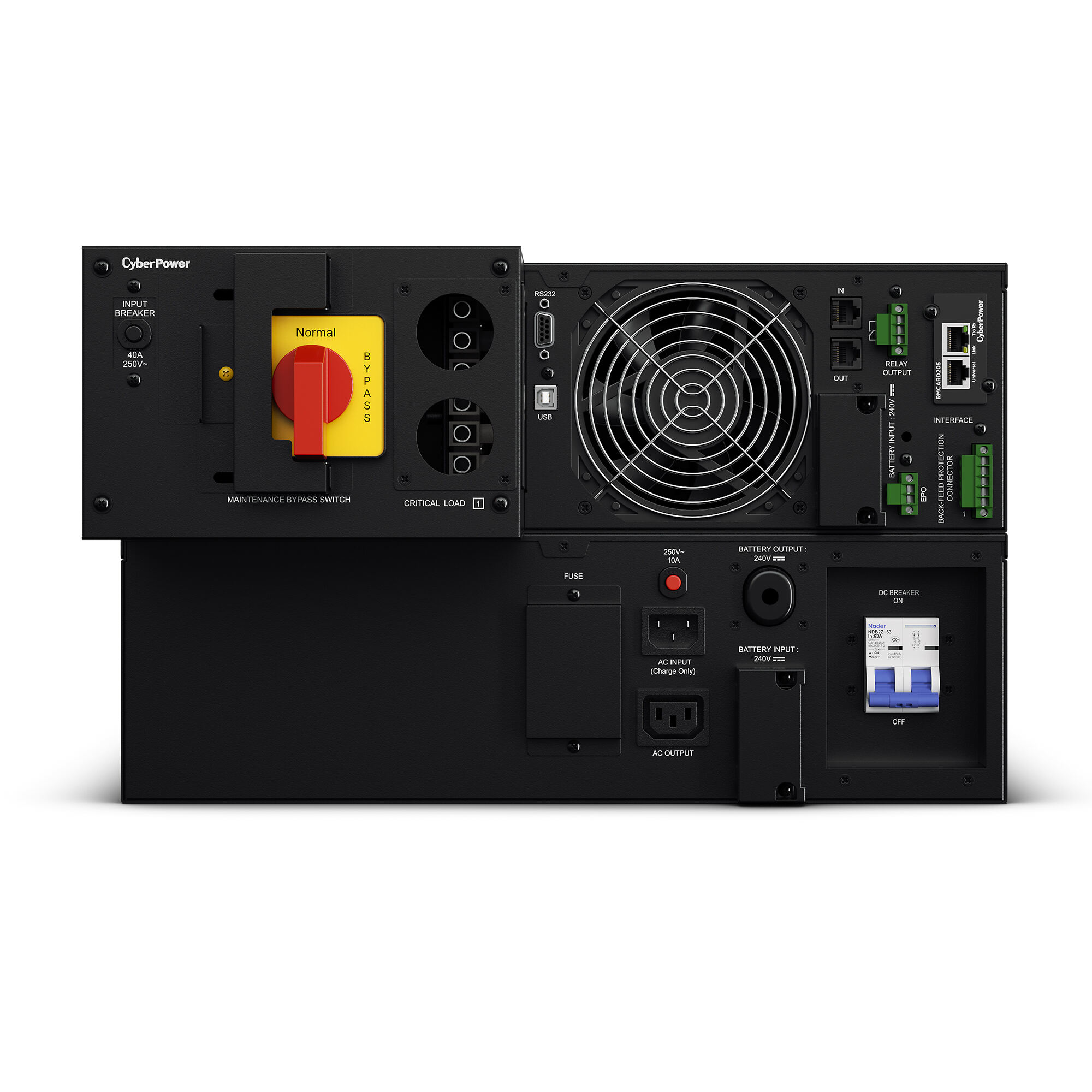

Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | Hardwire |
| Power plug | Hardwire |
| AC outlets quantity | 13 AC outlet(s) |
| USB port | Yes |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 20 |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Battery weight | 76 kg |
| Replacement battery cartridge | RB1270X10 |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Housing material | Steel |
| Rack capacity | 6U |
| Display type | LCD |
| LED indicators | Battery replacement, Fault, Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
| Cables included | Phone (RJ-11), Serial, USB cable |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 820 mm |
| Height | 264 mm |
| Weight | 104.3 kg |
| Battery width | 43.3 cm |
| Battery depth | 66 cm |
| Battery height | 13.2 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 650 mm |
| Package depth | 619 mm |
| Package height | 1120 mm |
| Package weight | 129.2 kg |
