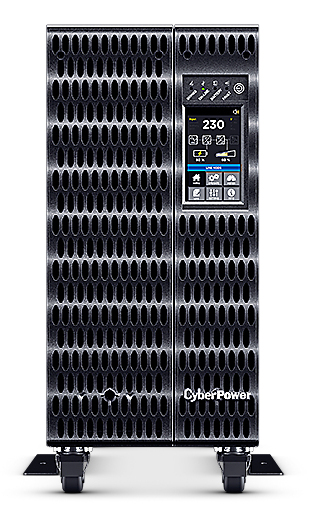

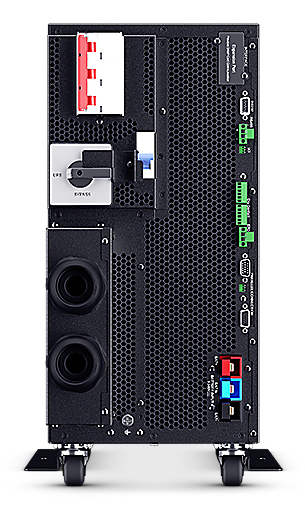

LCD OL3T030KERTHDS uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA
30000 W
Model OL3T030KERTHDSEAN 4711027798479
69 specifications
- Noise66 dB
- TypeTower
- Weight44.7 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
- AC outlet typesTerminal
Overview
- Noise
- 66 dB
- Type
- Tower
- Weight
- 44.7 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- AC outlet types
- Terminal
- Brand
- CyberPower
- Model
- OL3T030KERTHDS
- Part number
- OL3T030KERTHDS
- EAN / UPC
- 4711027798479
- Also known as
- CyberPower LCD OL3T030KERTHDS uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
Specifications
69 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 132 V |
| Input operation voltage (max) | 478 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 48.5 A |
| Transfer time (Line Mode to Battery Mode) | 0 ms |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 95.8% |
| Efficiency (ECO mode) | 98.9% |
| Efficiency (Battery mode) | 95.5% |
| Power factor | 1 |
| Input power factor | 0.99 |
| Output power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Total Harmonic Distortion (THD) (linear load) | 1% |
| Total Harmonic Distortion (THD) (non-linear load) | 3% |
| EMI/RFI noise filtering | Yes |
| Noise level | 66 dB |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Socket circuit breaker | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | Terminal |
| Power plug | Terminal |
| Serial interface | Yes |
| Serial interface type | RS-485 |
| Parallel ports quantity | 4 |
| Emergency Power Off (EPO) connector | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Number of batteries supported | 40 |
| Charging current | 3.6 A |
| Cold start | Yes |
| Rechargeable battery | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Housing material | Metal |
| Control type | Touch |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, BSMI, IEC62040-1, IEC62040-2, CNS 14757-2, CNS 14843-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 219 mm |
| Depth | 760 mm |
| Height | 483 mm |
| Weight | 44.7 kg |
Other features
| Specification | Value |
|---|---|
| Output connections | L1, L2, L3, N, G |
| Overload protection | Yes |
| Bypass | Automatic |
