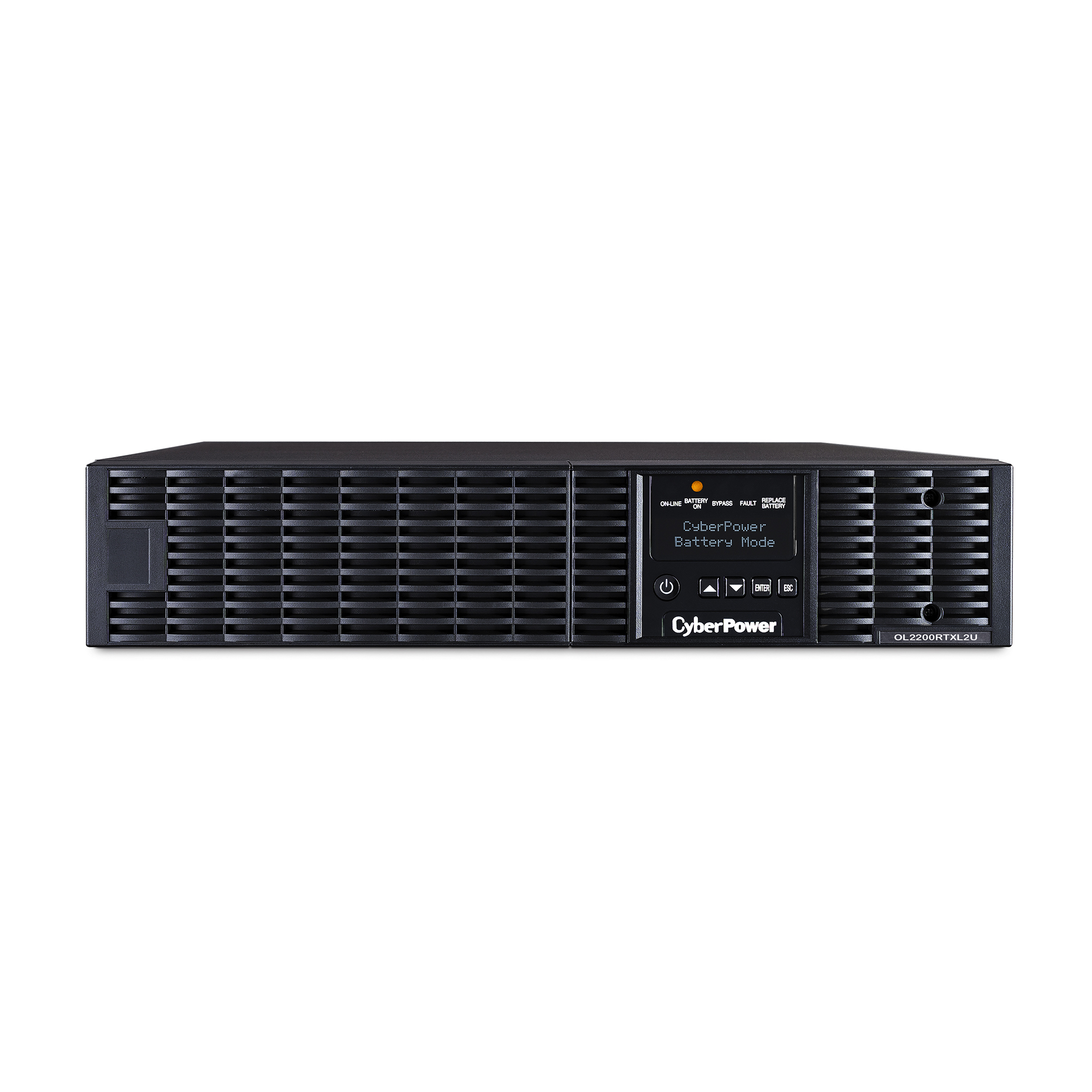

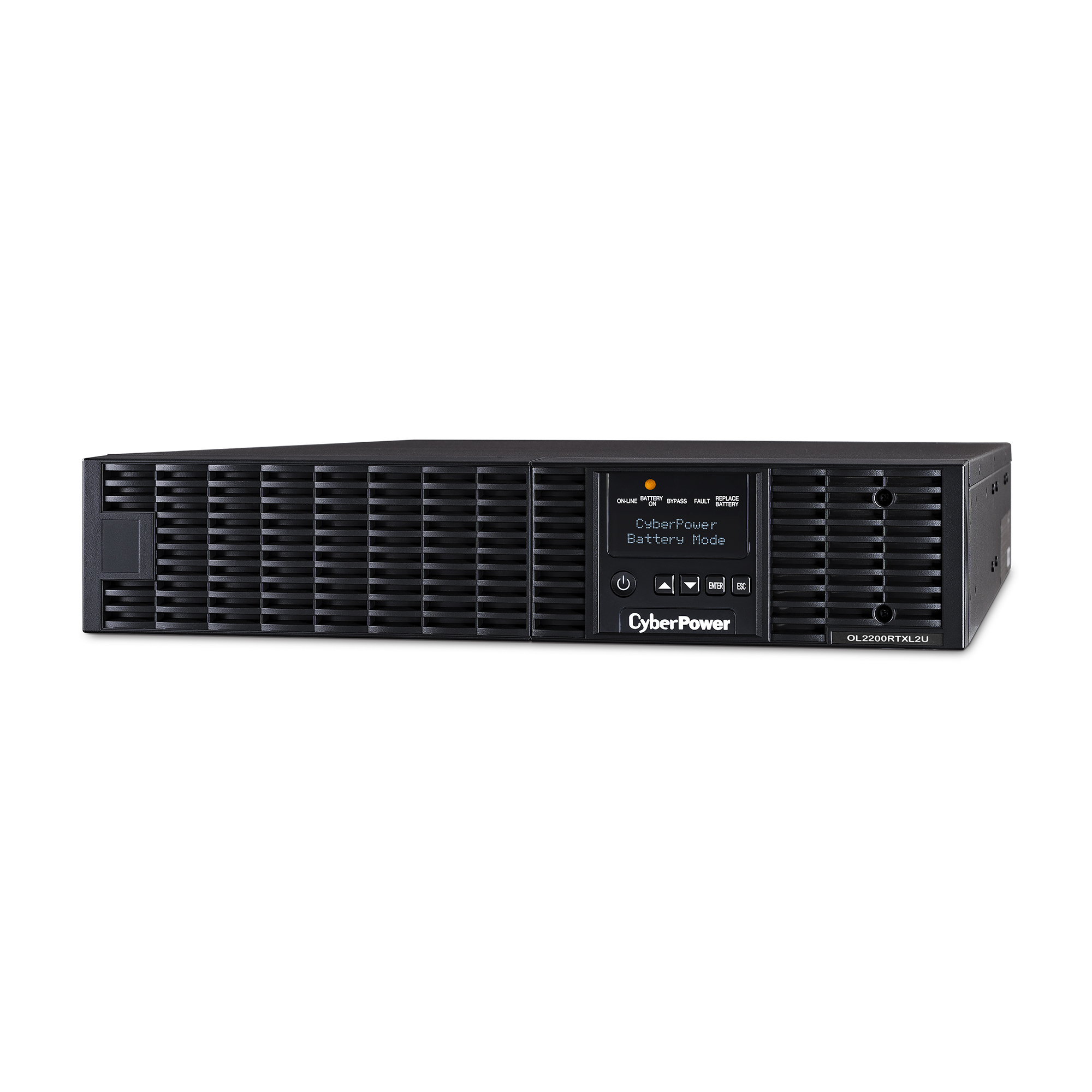

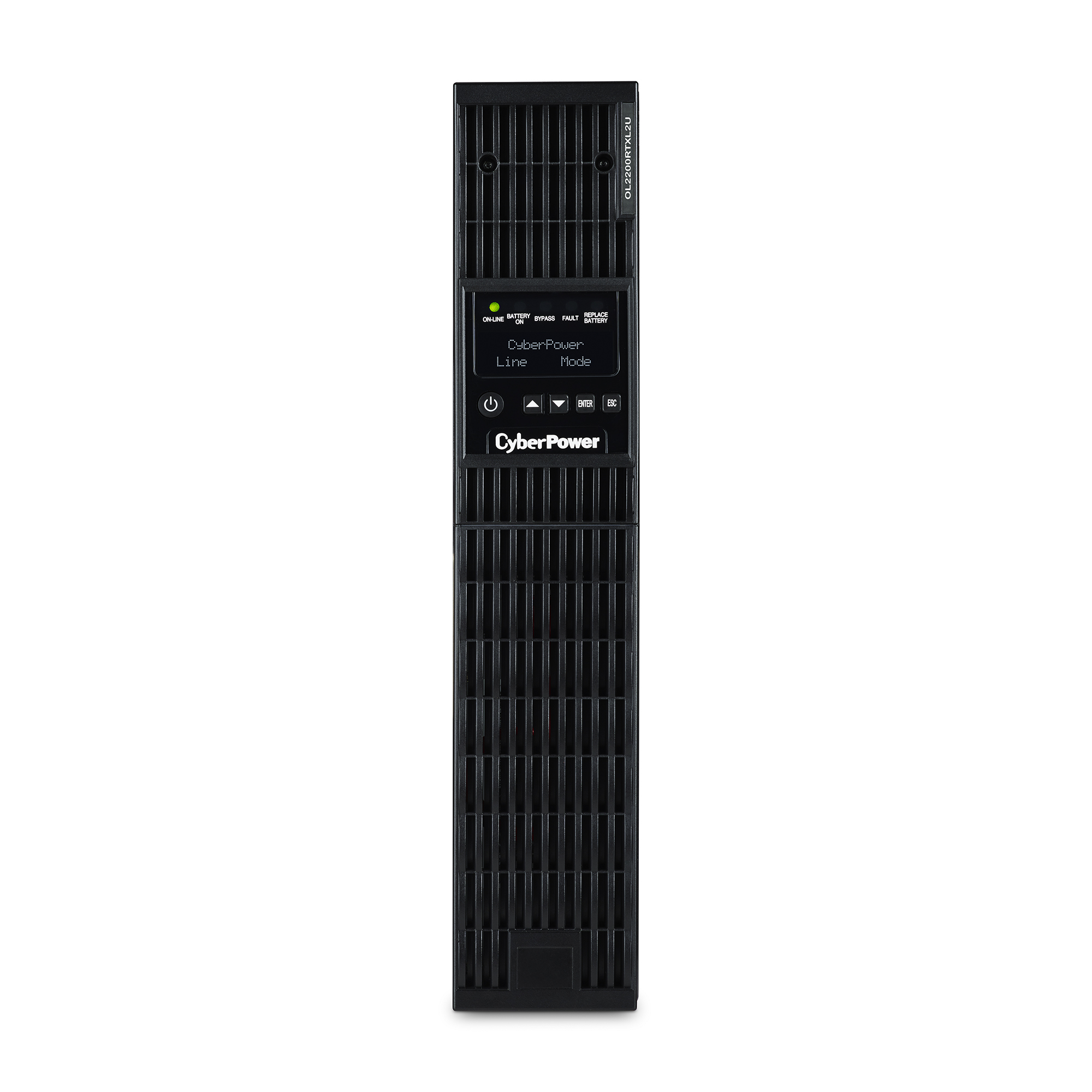

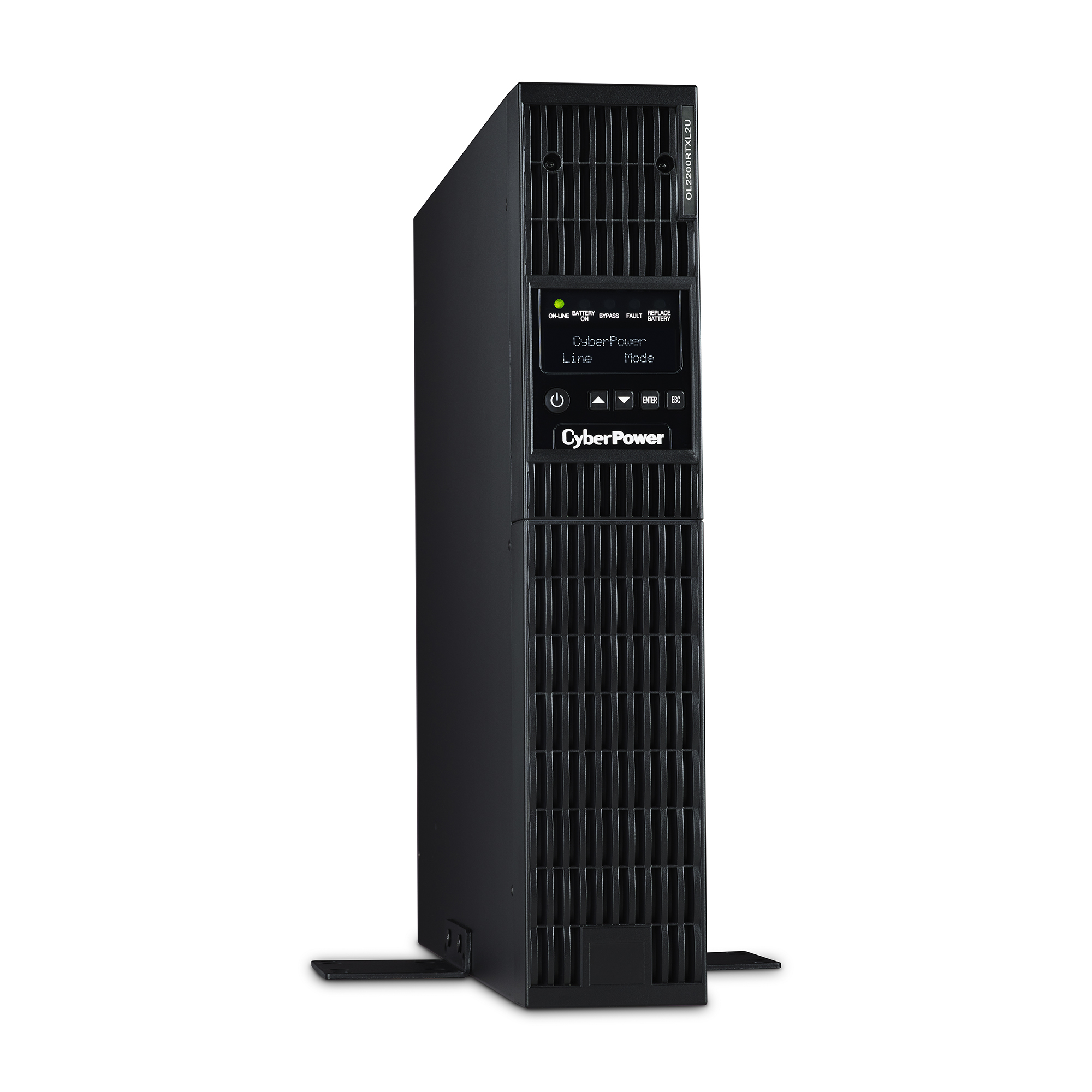

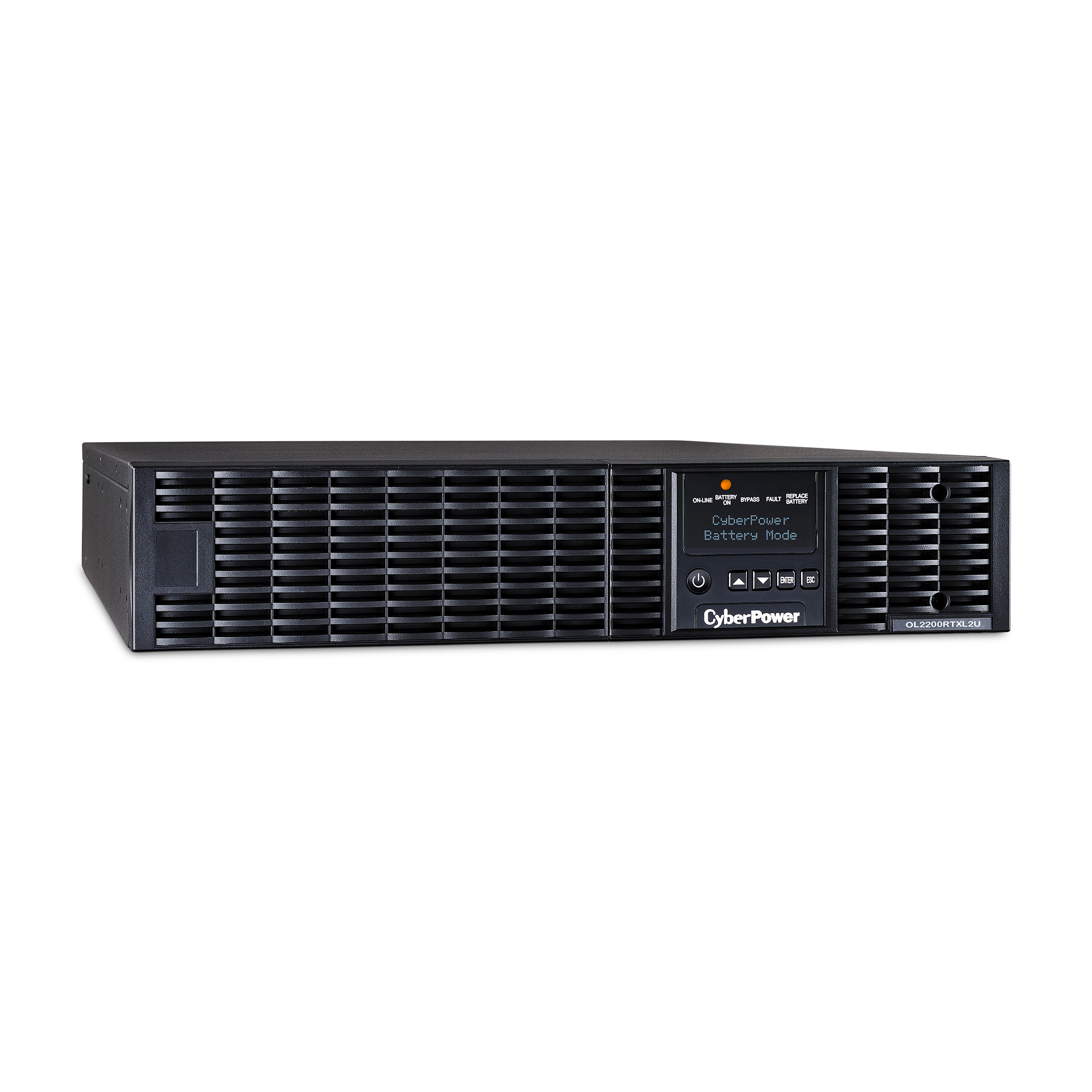

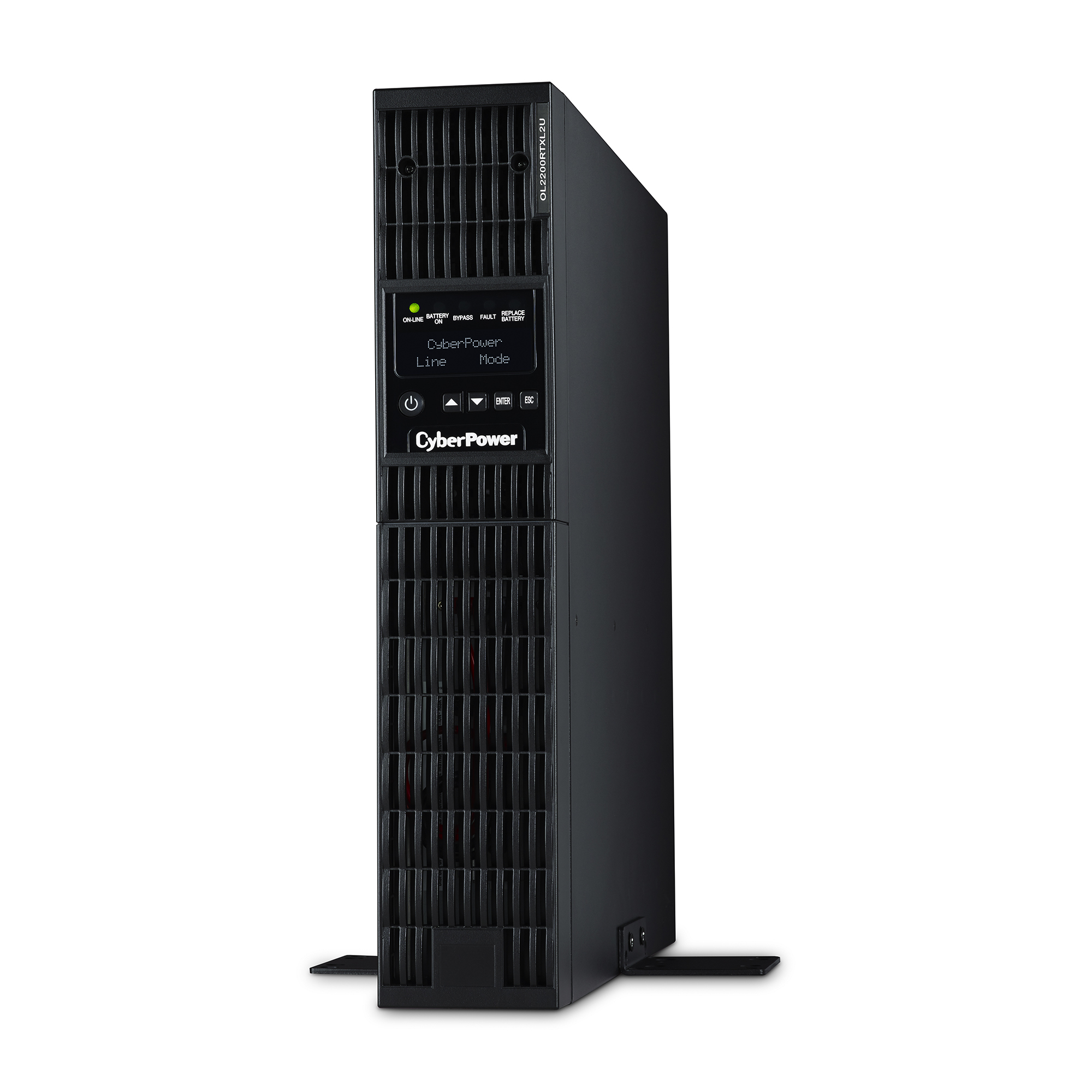

CyberPower OL2200RTXL2UN uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA
CyberPower

OL2200RTXL2UN uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA

1800 W 7 AC outlet(s)

Model OL2200RTXL2UNEAN 649532621927

71 specifications
  • Battery9 Ah
  • Noise55 dB
  • TypeRackmount/Tower
  • Weight30.9 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
55 dB
Type
Rackmount/Tower
Weight
30.9 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CyberPower
Model
OL2200RTXL2UN
Part number
OL2200RTXL2UN
EAN / UPC
649532621927
Also known as
CyberPower OL2200RTXL2UN uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W 7 AC outlet(s)

Specifications

71 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2.2 kVA
Output power1800 W
WaveformSine
Input operation voltage (min)60 V
Input operation voltage (max)150 V
Input frequency40/70 Hz
Output operation voltage (min)100 V
Output operation voltage (max)125 V
Output frequency50/60 Hz
Output frequency regulation0.25 Hz
Output voltage regulation2%
Automatic Voltage Regulation (AVR)Yes
Surge energy rating1335 J
Response time0 ms
Efficiency (ECO mode)95%
Input power factor0.99
Output power factor0.82
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
EMI/RFI noise filteringYes
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Audible alarm modesFault, Low battery alarm, Overload alarm

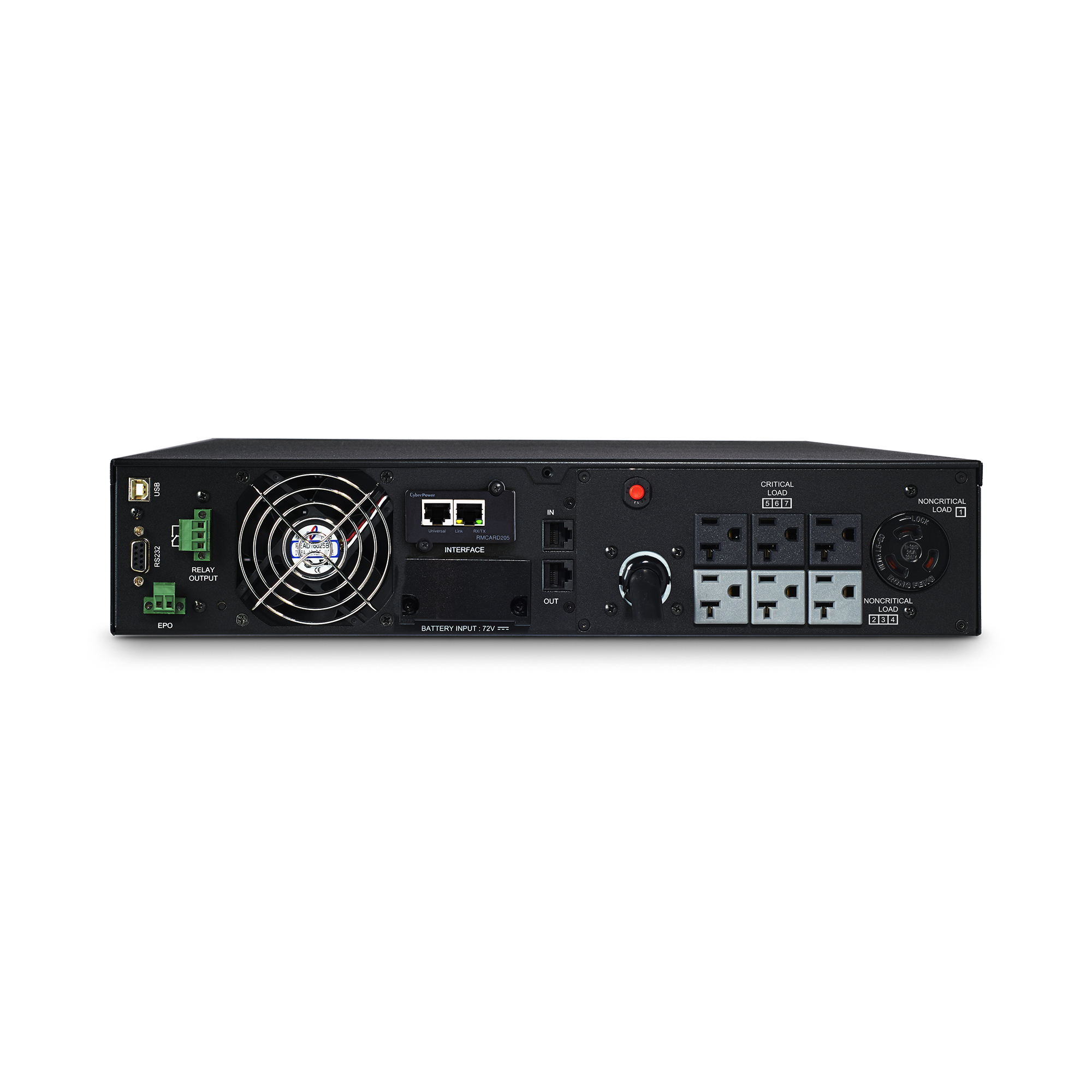

Ports & interfaces

AC outlet typesNEMA 5–20R, NEMA L5-20R
Power plugNEMA 5-20P
AC outlets quantity7 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
Serial ports quantity1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports1
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of battery cells6
Typical backup time at full load6.5 min
Typical backup time at half load20 min
Battery recharge time4 h
Hot-swap batteryYes
Replacement battery cartridgeRB1290X6A

Design

Form factorRackmount/Tower
Product colourBlack
Housing materialMetal
Rack capacity2U
Cable length3 m
Built-in fanYes
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%

Packaging content

Rack mount kitYes
Cables includedPhone (RJ-11), Serial, USB cable

Certificates

Compliance certificatesRoHS
CertificationUL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A

Sustainability

Sustainability certificatesENERGY STAR

Weight & dimensions

Width432 mm
Depth600 mm
Height89 mm
Weight30.9 kg

Packaging data

Package width558.8 mm
Package depth882.6 mm
Package height234.9 mm
Package weight35.2 kg

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model OL2200RTXL2UN · certified Sep 19, 2018 · United States

Average efficiency91.9 %
