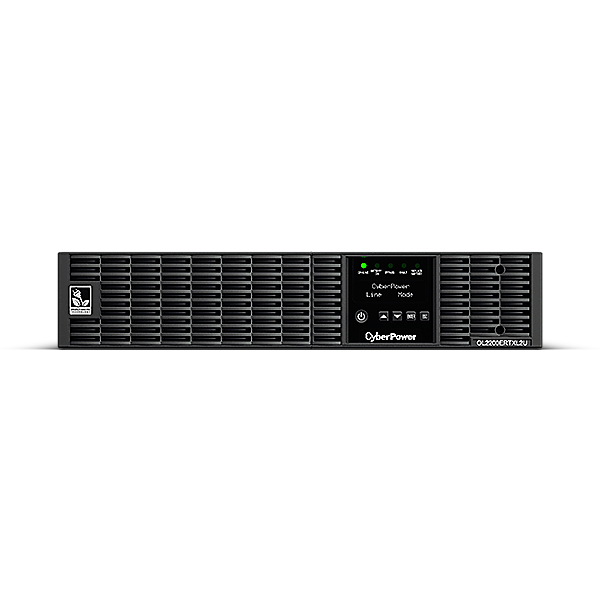

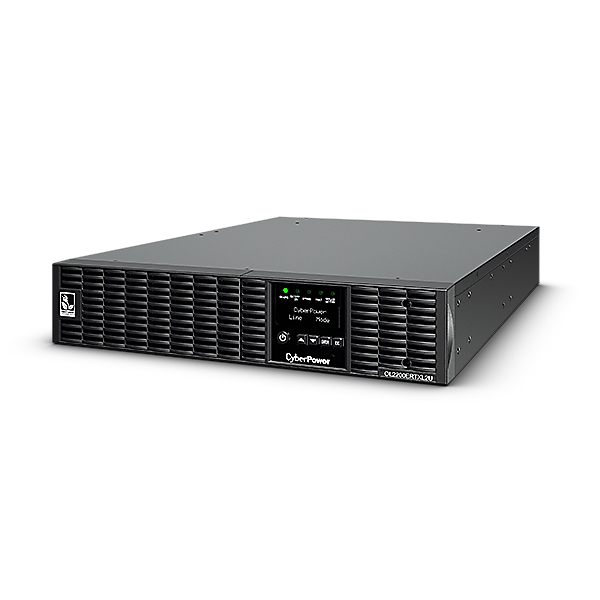

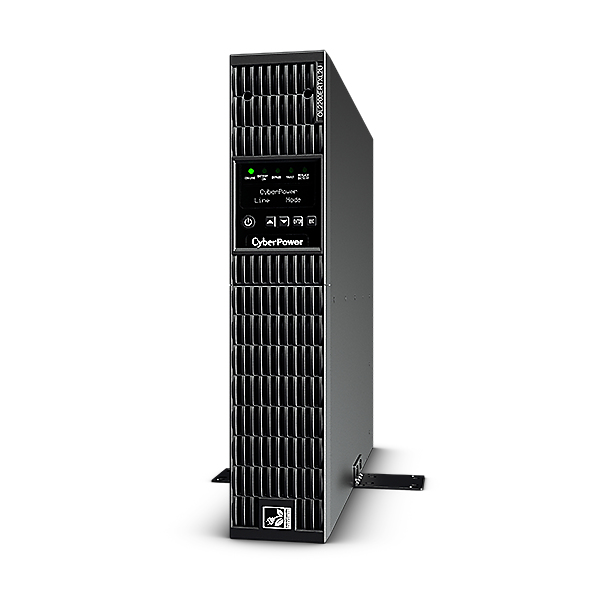

CyberPower OL2200ERTXL2U uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA

CyberPower OL2200ERTXL2U uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA

2000 W 9 AC outlet(s)

Model OL2200ERTXL2UEAN 4711027799599

71 specifications
  • TypeRackmount/Tower
  • Weight31 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesC13 coupler, C19 coupler
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Rackmount/Tower
Weight
31 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
C13 coupler, C19 coupler
Battery technology
Sealed Lead Acid (VRLA)
Brand
CyberPower
Model
OL2200ERTXL2U
Part number
OL2200ERTXL2U
EAN / UPC
4711027799599
Also known as
CyberPower OL2200ERTXL2U uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2000 W 9 AC outlet(s)

Specifications

71 specifications in 12 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2.2 kVA
Output power2000 W
WaveformPure sine
Input operation voltage (min)190 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Maximum current11 A
Surge energy rating1335 J
Response time0 ms
Heat dissipation1139 BTU/h
Output power factor0.9
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)3%
Total Harmonic Distortion (THD) (non-linear load)5%
Surge protectionYes
Surge protection featuresFax, Modem, Network, Telephone
Power protection featuresOverload

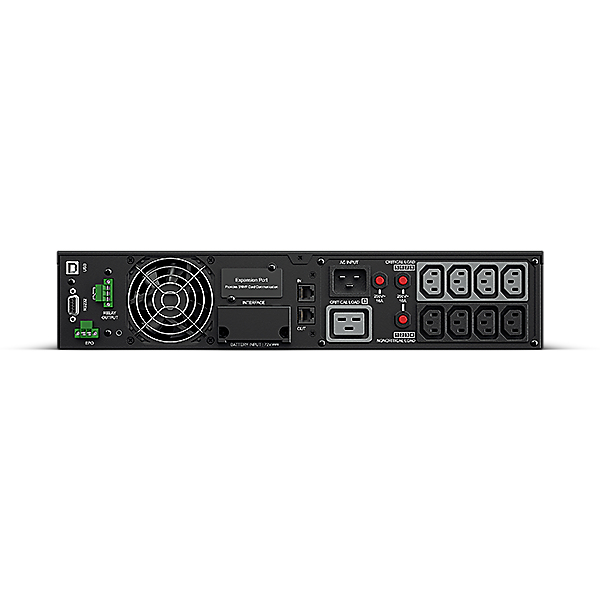

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity9 AC outlet(s)
USB 2.0 ports quantity1
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Serial ports quantity1
Ethernet LAN (RJ-45) ports2
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage72 V
Typical backup time at full load6.5 min
Typical backup time at half load20 min
Battery recharge time5 h
Charging current1 A
Hot-swap batteryYes
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Housing materialMetal
Rack capacity2U
Cable length3 m
Cooling typeActive
Built-in fanYes
Control typeButtons
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Rack mount kitYes
Cables includedSerial, USB cable
ManualYes

Certificates

Compliance certificatesCE, RoHS

Sustainability

Sustainability complianceYes

Weight & dimensions

Width433 mm
Depth600 mm
Height88 mm
Weight31 kg

Packaging data

Package width565 mm
Package depth880 mm
Package height240 mm
Package weight39.5 kg

Logistics data

Harmonized System (HS) code8504408590
Country of originChina

Other features

Battery typeRBP0076
