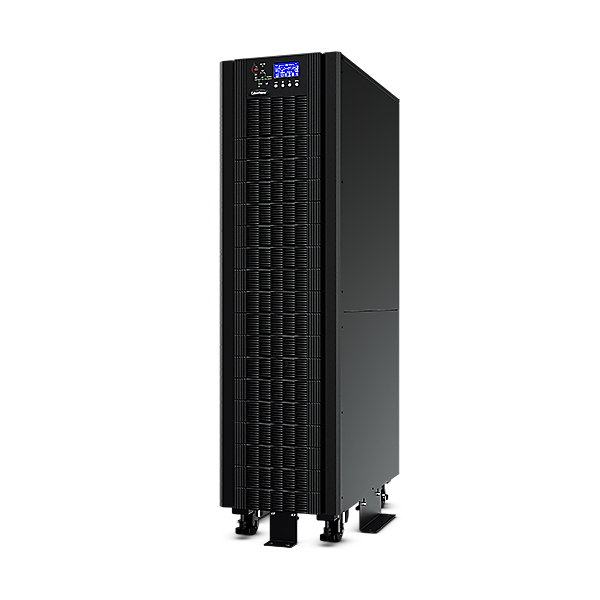

HSTP3T30KEBCWOB uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA
27000 W
Model HSTP3T30KEBCWOBEAN 4712856277999
45 specifications
- Noise58 dB
- TypeTower
- Weight89 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
- Serial interface typeRS-232, RS-485
Overview
- Noise
- 58 dB
- Type
- Tower
- Weight
- 89 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- Serial interface type
- RS-232, RS-485
- Brand
- CyberPower
- Model
- HSTP3T30KEBCWOB
- Part number
- HSTP3T30KEBCWOB
- EAN / UPC
- 4712856277999
- Also known as
- CyberPower HSTP3T30KEBCWOB uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 27000 W
Specifications
45 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 27000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 415 V |
| Efficiency | 96% |
| Efficiency (ECO mode) | 98% |
| Power factor | 0.9 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| EMI/RFI noise filtering | Yes |
| Noise level | 58 dB |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
Ports & interfaces
| Specification | Value |
|---|---|
| Serial interface type | RS-232, RS-485 |
| RS-232 ports | 1 |
| Serial ports quantity | 2 |
| Emergency Power Off (EPO) connector | Yes |
Battery
| Specification | Value |
|---|---|
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 9 min |
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Housing material | Metal |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE , IEC62040-1 , IEC62040-2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 350 mm |
| Depth | 738 mm |
| Height | 1335 mm |
| Weight | 89 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 880 mm |
| Package height | 1530 mm |
| Package weight | 106 kg |
