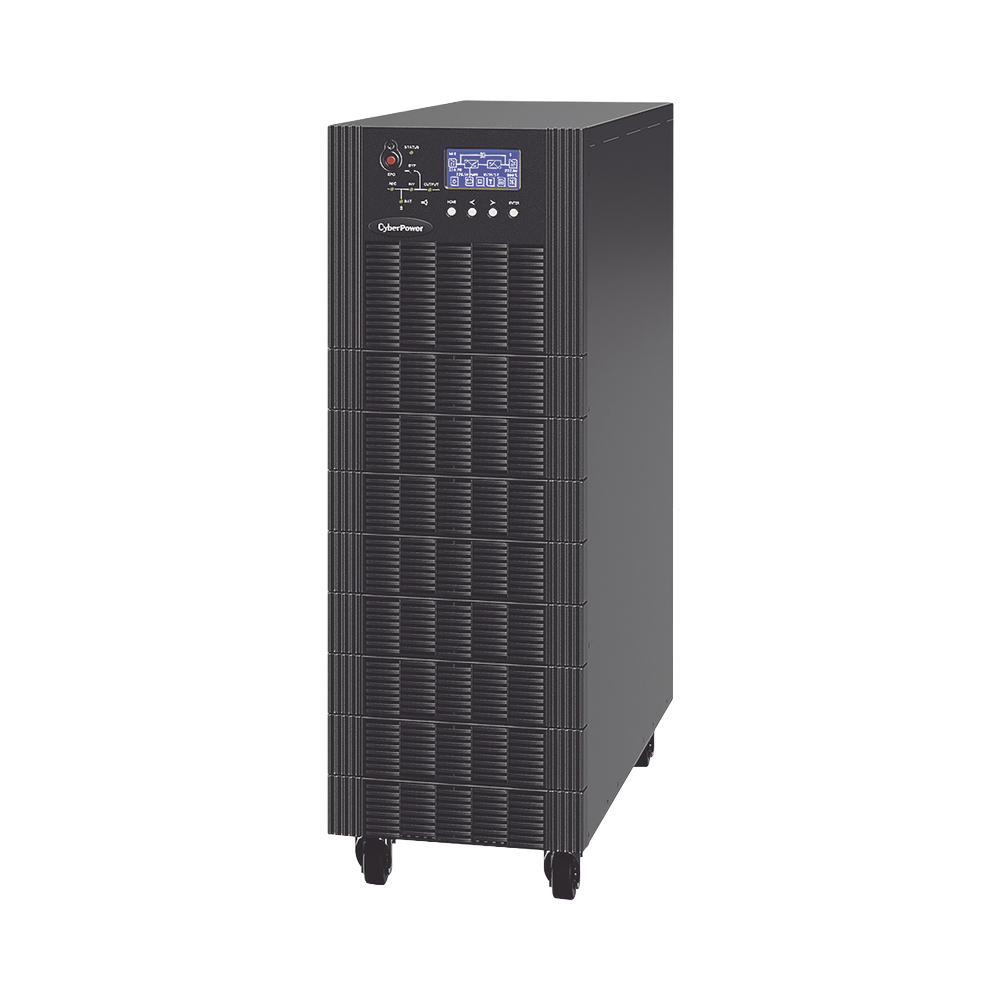

CyberPower HSTP3T20K100P10M uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA

CyberPower HSTP3T20K100P10M uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA

18000 W

Model HSTP3T20K100P10M

53 specifications
  • Battery12 Ah
  • Noise58 dB
  • TypeTower
  • Weight64 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
12 Ah
Noise
58 dB
Type
Tower
Weight
64 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CyberPower
Model
HSTP3T20K100P10M
Part number
HSTP3T20K100P10M
Also known as
CyberPower HSTP3T20K100P10M uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 18000 W

Specifications

53 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power18000 W
WaveformPure sine
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Maximum current42 A
Number of input phases3
Efficiency95%
Efficiency (ECO mode)98%
Input power factor0.99
Output power factor0.9
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5.5%
EMI/RFI noise filteringYes
Noise level58 dB
Power protection featuresOverload
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

Ports & interfaces

Serial interfaceYes
Serial interface typeRS-232, RS-485
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity12 Ah
Battery voltage12 V
Number of batteries supported40
Typical backup time at full load5.5 min
Typical backup time at half load18 min

Design

Form factorTower
Product colourBlack
Housing materialMetal
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m

Packaging content

ManualYes

Certificates

CertificationCE, IEC62040-1, IEC62040-2

Weight & dimensions

Width250 mm
Depth770 mm
Height950 mm
Weight64 kg

Packaging data

Package width400 mm
Package depth1140 mm
Package height945 mm
Package weight88.5 kg
