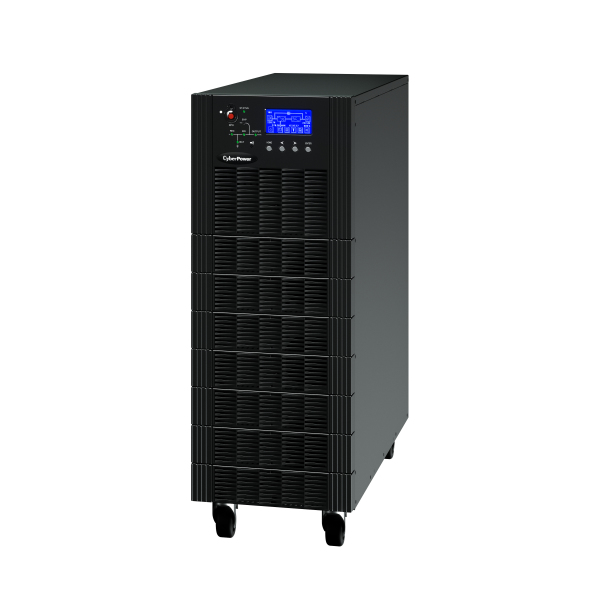

CyberPower HSTP3T10KEBCWOB uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA

CyberPower HSTP3T10KEBCWOB uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA

9000 W

Model HSTP3T10KEBCWOBEAN 4712856278026

51 specifications
  • Noise58 dB
  • TypeTower
  • Weight51.5 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • Serial interfaceYes
See all specifications

Overview

Noise
58 dB
Type
Tower
Weight
51.5 kg
Colour
Black
UPS topology
Double-conversion (Online)
Serial interface
Yes
Brand
CyberPower
Model
HSTP3T10KEBCWOB
Part number
HSTP3T10KEBCWOB
EAN / UPC
4712856278026
Also known as
CyberPower HSTP3T10KEBCWOB uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 9000 W

Specifications

51 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power9000 W
WaveformPure sine
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Efficiency95%
Efficiency (ECO mode)98%
Efficiency (Battery mode)95%
Power factor0.9
Input power factor0.99
Power Factor Correction (PFC) typeActive
Crest factor3:1
ECO modeYes
Total Harmonic Distortion (THD) (linear load)1%
Total Harmonic Distortion (THD) (non-linear load)5.5%
EMI/RFI noise filteringYes
Noise level58 dB
Power protection featuresOverload
Audible alarm(s)Yes
Audible alarm modesFault, Low battery alarm, Overload alarm
Maximum number of paralleling UPSs4

Ports & interfaces

Serial interfaceYes
Serial interface typeRS-485
RS-232 ports1
Emergency Power Off (EPO) connectorYes

Battery

Typical backup time at full load12 min
Typical backup time at half load25 min

Design

Form factorTower
Product colourBlack
Housing materialMetal
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Certificates

CertificationCE , IEC62040-1 , IEC62040-2

Weight & dimensions

Width250 mm
Depth840 mm
Height715 mm
Weight51.5 kg

Packaging data

Package width400 mm
Package depth1000 mm
Package height930 mm
Package weight60 kg

Other features

BypassAutomatic, Manual
