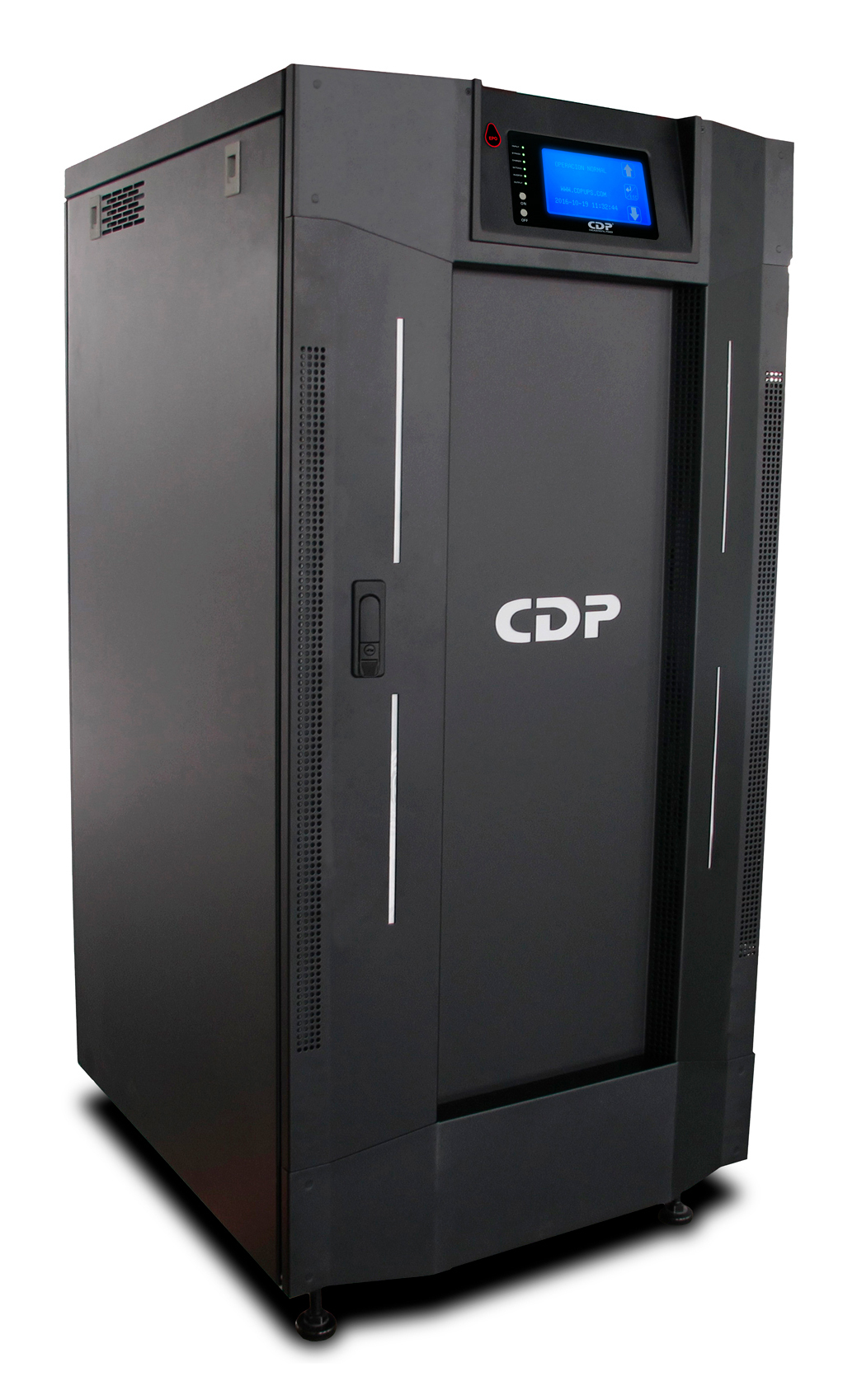

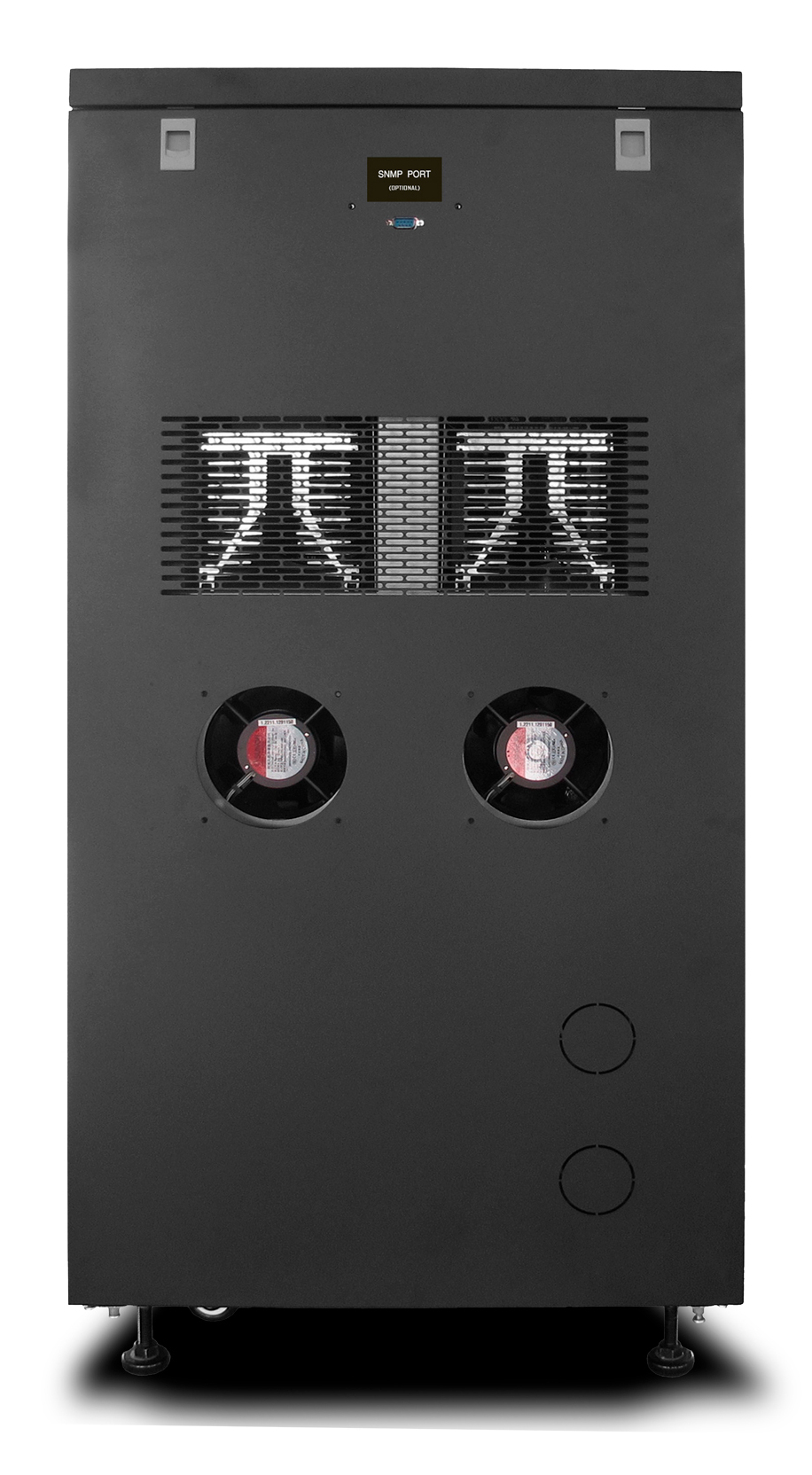

CDP UPO33-40PF365i 40KVA/36KW PF 0.9, Online 3-phase UPS Low Freq. 380 Vac Input, 380vac and 220 vac Output
CDP

UPO33-40PF365i 40KVA/36KW PF 0.9, Online 3-phase UPS Low Freq. 380 Vac Input, 380vac and 220 vac Output

Model UPO33-40PF365iPart no. UPO33-40PF365I

32 specifications
  • TypeTower
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
  • Battery technologyLead-Acid
See all specifications

Overview

Type
Tower
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Battery technology
Lead-Acid
Brand
CDP
Model
UPO33-40PF365i
Part number
UPO33-40PF365I
Also known as
CDP UPO33-40PF365i 40KVA/36KW PF 0.9, Online 3-phase UPS Low Freq. 380 Vac Input, 380vac and 220 vac Output

Specifications

32 specifications in 4 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity40 kVA
Output power36000 W
WaveformPure sine
Input operation voltage (min)285 V
Input operation voltage (max)475 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)380 V
Output frequency50/60 Hz
Output voltage regulation1%
Response time0 ms
Number of input phases3
Number of output phases3
Efficiency (On-line mode)92%
Power factor0.9
Crest factor3:1
Emergency Power Off (EPO)Yes
Input current Total Harmonic Distortion (THD)2%
Surge protectionYes
Power protection featuresDischarge overcurrent, Overload

Ports & interfaces

AC outlet typesHardwire
Power plugHardwire
Serial interfaceYes
Serial interface typeRS-232

Battery

Battery technologyLead-Acid
Typical backup time at full load5 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Display typeLCD
