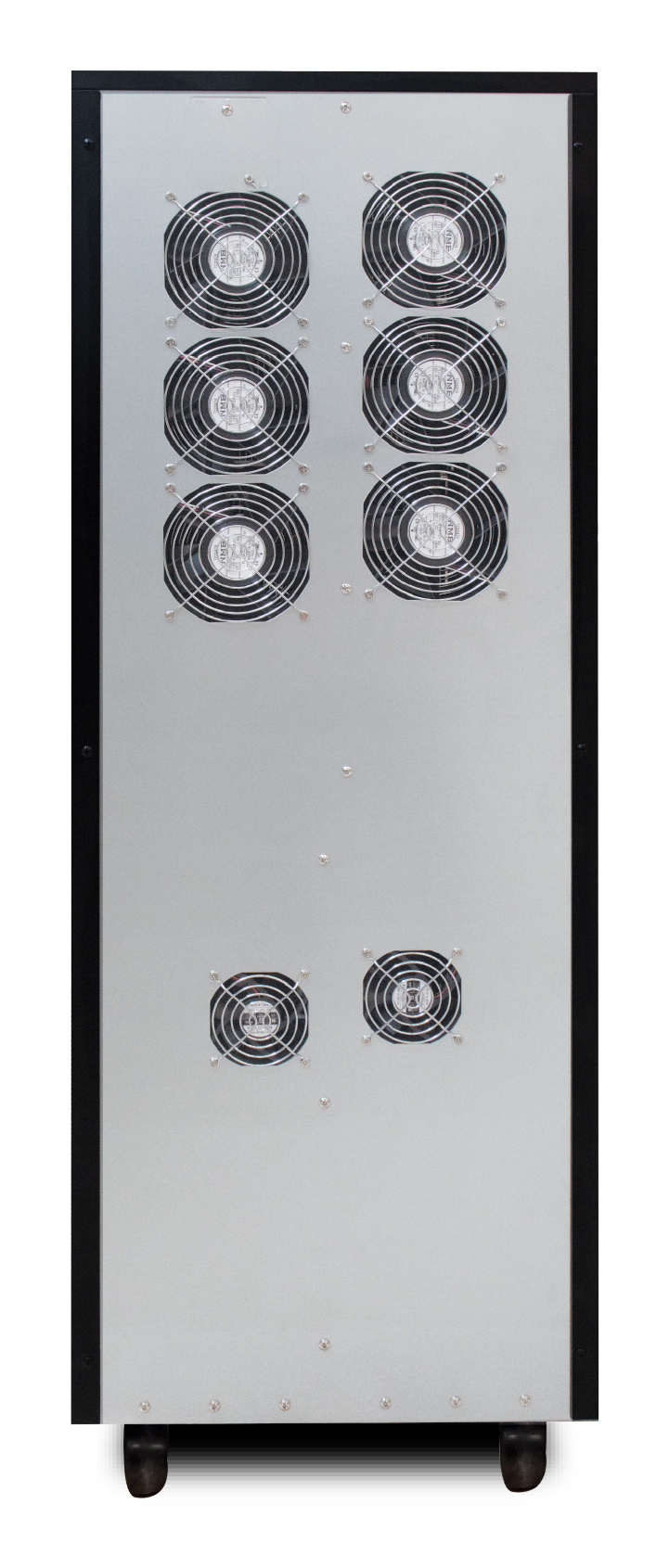

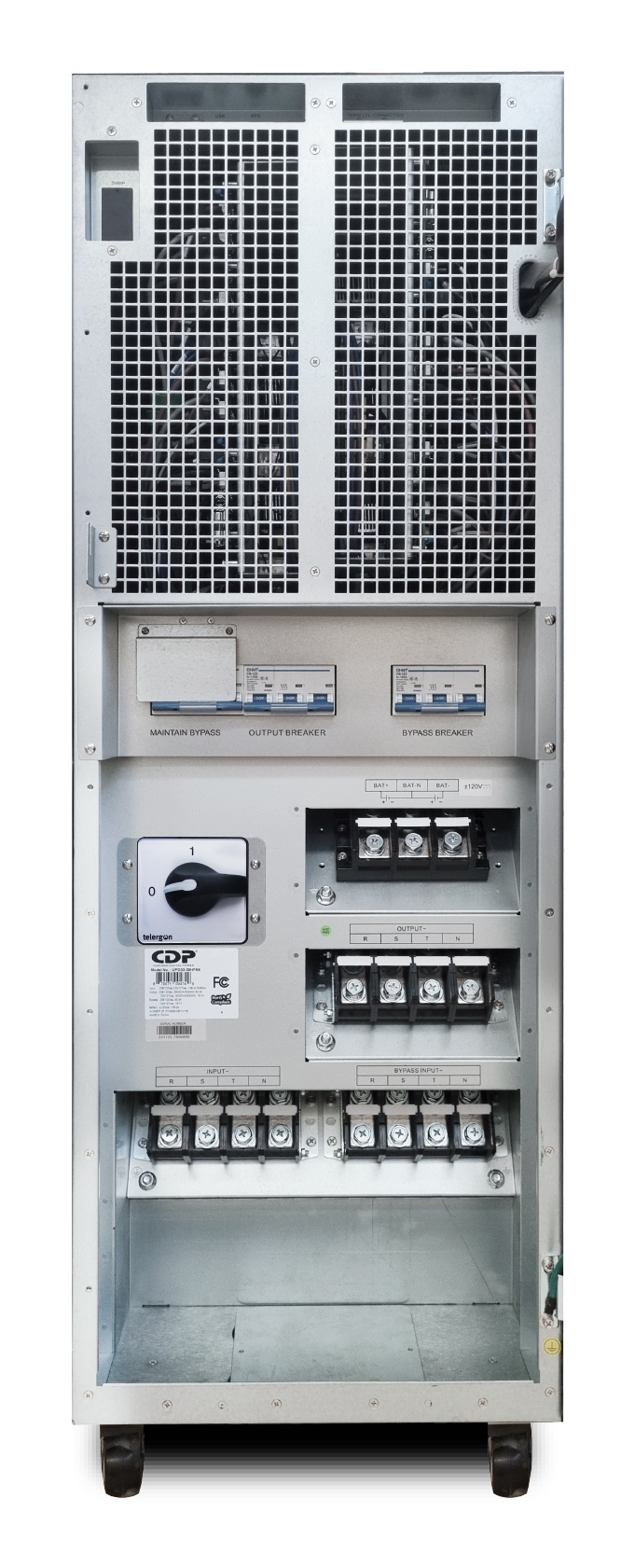

CDP UPO33-40HFAXi 40KVA/40KW PF 1.0, Online UPS 3PH HF, LCD 380/380 Vac

CDP UPO33-40HFAXi 40KVA/40KW PF 1.0, Online UPS 3PH HF, LCD 380/380 Vac

Model UPO33-40HFAXiPart no. UPO33-40HFAXIEAN 879071004206

47 specifications
  • TypeTower
  • Weight141 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
  • Battery technologyLead-Acid
See all specifications

Overview

Type
Tower
Weight
141 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Battery technology
Lead-Acid
Brand
CDP
Model
UPO33-40HFAXi
Part number
UPO33-40HFAXI
EAN / UPC
879071004206
Also known as
CDP UPO33-40HFAXi 40KVA/40KW PF 1.0, Online UPS 3PH HF, LCD 380/380 Vac

Specifications

47 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity40 kVA
Output power40000 W
WaveformPure sine
Input operation voltage (min)304 V
Input operation voltage (max)456 V
Input frequency50/60 Hz
Output operation voltage (max)380 V
Output frequency50/60 Hz
Surge energy rating0 J
Number of input phases3
Number of output phases3
Efficiency (On-line mode)94%
Power factor1
Crest factor3:1
Input current Total Harmonic Distortion (THD)2%
Surge protectionYes
Power protection featuresDischarge overcurrent, Overload

Ports & interfaces

AC outlet typesHardwire
Power plugHardwire
USB portYes
Serial interfaceYes
Serial interface typeRS-232

Battery

Battery technologyLead-Acid
Battery voltage12 V
Number of batteries included0 pc(s)
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Display typeLCD

Certificates

CertificationISO9001, ISO14001, retie, CE Y FCC

Weight & dimensions

Width420 mm
Depth790 mm
Height1200 mm
Weight141 kg

Packaging data

Package weight160 kg

Logistics data

Master (outer) case net weight8 kg
Pallet gross height12 cm
Pallet gross length79 cm
Pallet gross weight12 kg
Pallet gross width42 cm
Master (outer) case width550 mm
Master (outer) case length930 mm
Master (outer) case height1390 mm
Master (outer) case gross weight8 kg
Products per master (outer) case1 pc(s)
