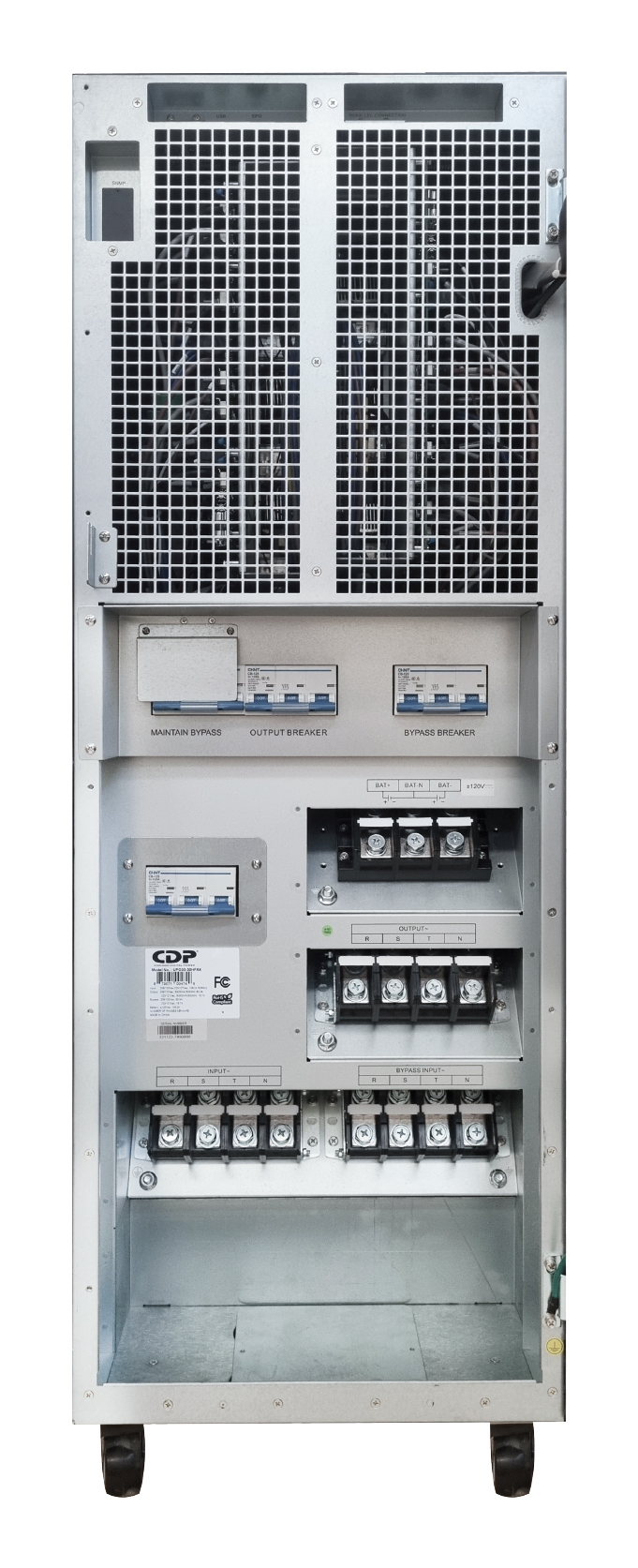

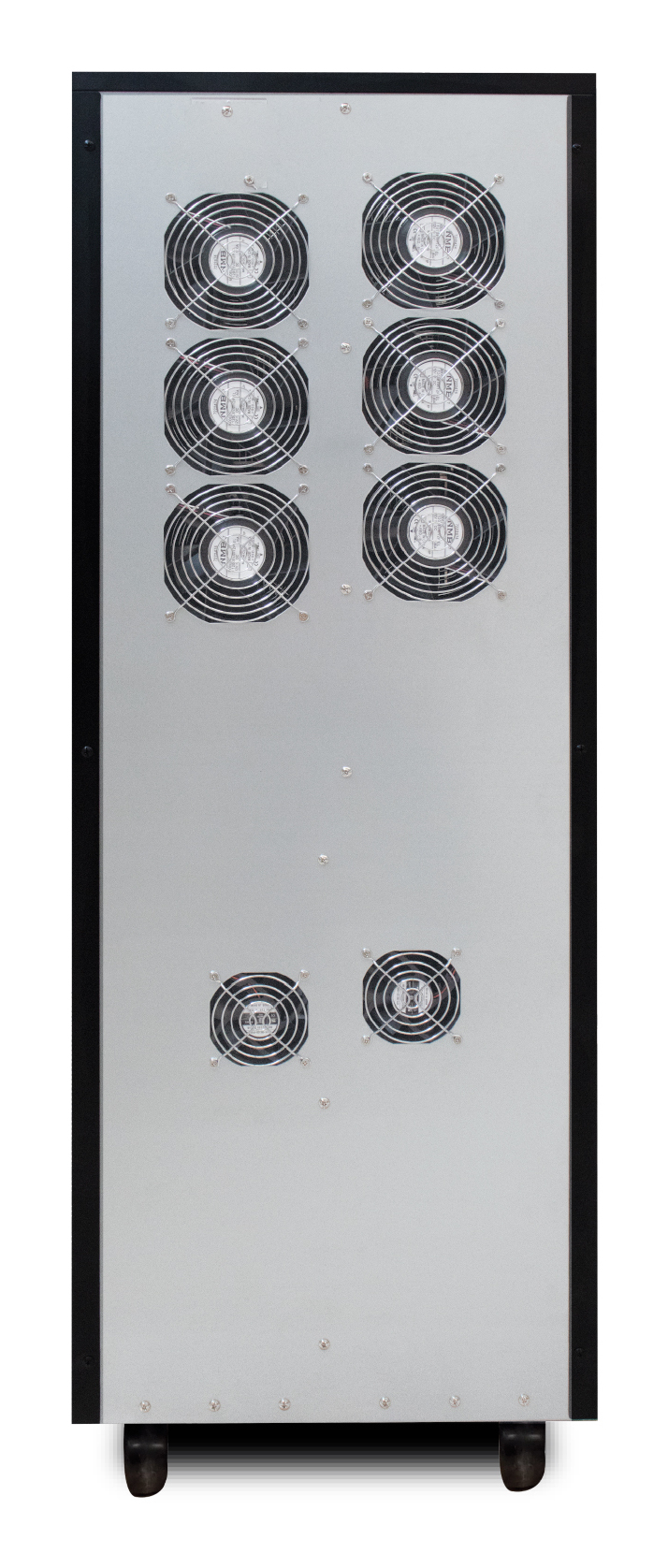

CDP UPO33-30HFAXi 30KVA/30KW PF 1.0, Online UPS 3PH HF, LCD CE 380/380 Vac
CDP

UPO33-30HFAXi 30KVA/30KW PF 1.0, Online UPS 3PH HF, LCD CE 380/380 Vac

Model UPO33-30HFAXiPart no. UPO33-30HFAXIEAN 879071004190

47 specifications
  • TypeTower
  • Weight33 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
  • Battery technologyLead-Acid
See all specifications

Overview

Type
Tower
Weight
33 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Battery technology
Lead-Acid
Brand
CDP
Model
UPO33-30HFAXi
Part number
UPO33-30HFAXI
EAN / UPC
879071004190
Also known as
CDP UPO33-30HFAXi 30KVA/30KW PF 1.0, Online UPS 3PH HF, LCD CE 380/380 Vac

Specifications

47 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity30 kVA
Output power30000 W
WaveformPure sine
Input operation voltage (min)304 V
Input operation voltage (max)456 V
Input frequency50/60 Hz
Output operation voltage (max)380 V
Output frequency50/60 Hz
Surge energy rating0 J
Number of input phases3
Number of output phases3
Efficiency (On-line mode)94%
Power factor1
Crest factor3:1
Input current Total Harmonic Distortion (THD)2%
Surge protectionYes
Power protection featuresDischarge overcurrent, Overload

Ports & interfaces

AC outlet typesHardwire
Power plugHardwire
USB portYes
Serial interfaceYes
Serial interface typeRS-232

Battery

Battery technologyLead-Acid
Battery voltage12 V
Number of batteries included0 pc(s)
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Display typeLCD

Certificates

CertificationISO9001, ISO14001, Retie, CE, FCC

Weight & dimensions

Width490 mm
Depth745 mm
Height130 mm
Weight33 kg

Packaging data

Package weight37 kg

Logistics data

Master (outer) case net weight2.5 kg
Pallet gross height12.6 cm
Pallet gross length120 cm
Pallet gross weight17 kg
Pallet gross width100 cm
Master (outer) case width580 mm
Master (outer) case length870 mm
Master (outer) case height250 mm
Master (outer) case gross weight2.5 kg
Products per master (outer) case1 pc(s)
