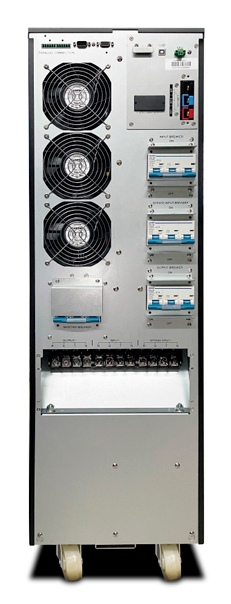

CDP UPO33-20HFAX 20KVA/20KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 208/208 Vac
CDP

UPO33-20HFAX 20KVA/20KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 208/208 Vac

Model UPO33-20HFAXEAN 879071001724

67 specifications
  • Battery9 Ah
  • Noise58 dB
  • TypeTower
  • Weight249 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
58 dB
Type
Tower
Weight
249 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO33-20HFAX
Part number
UPO33-20HFAX
EAN / UPC
879071001724
Also known as
CDP UPO33-20HFAX 20KVA/20KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 208/208 Vac

Specifications

67 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power20000 W
WaveformSine
Input operation voltage (min)125 V
Input operation voltage (max)260 V
Input frequency50/60 Hz
Output operation voltage (max)220 V
Output frequency50/60 Hz
Output frequency regulation0.1 Hz
Output voltage regulation1%
Surge energy rating0 J
Response time0 ms
Number of input phases3
Number of output phases3
Three-phase input voltage supported220 V
Three-phase output voltage supported220 V
Efficiency (On-line mode)94%
Efficiency (ECO mode)99%
Power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)4%
EMI/RFI noise filteringYes
Noise level58 dB
Surge protectionYes
Power protection featuresDischarge overcurrent, Overload

Ports & interfaces

USB portYes
Serial interfaceYes
Serial interface typeRS-485

Battery

Battery technologyLead-Acid
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported60
Typical backup time at full load7 min
Typical backup time at half load12 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

CertificationISO9001, ISO14001, CIDET, CE, ENERGY STAR, UL1778 Y FCC

Weight & dimensions

Width250 mm
Depth900 mm
Height868 mm
Weight249 kg

Packaging data

Package weight242 kg

Logistics data

Master (outer) case net weight242 kg
Pallet gross height104.8 cm
Pallet gross length102.4 cm
Pallet gross weight264 kg
Pallet gross width37.5 cm
Master (outer) case width375 mm
Master (outer) case length1024 mm
Master (outer) case height948 mm
Master (outer) case gross weight249 kg
Products per master (outer) case1 pc(s)

Other features

Number of phases3
Overload protectionYes
