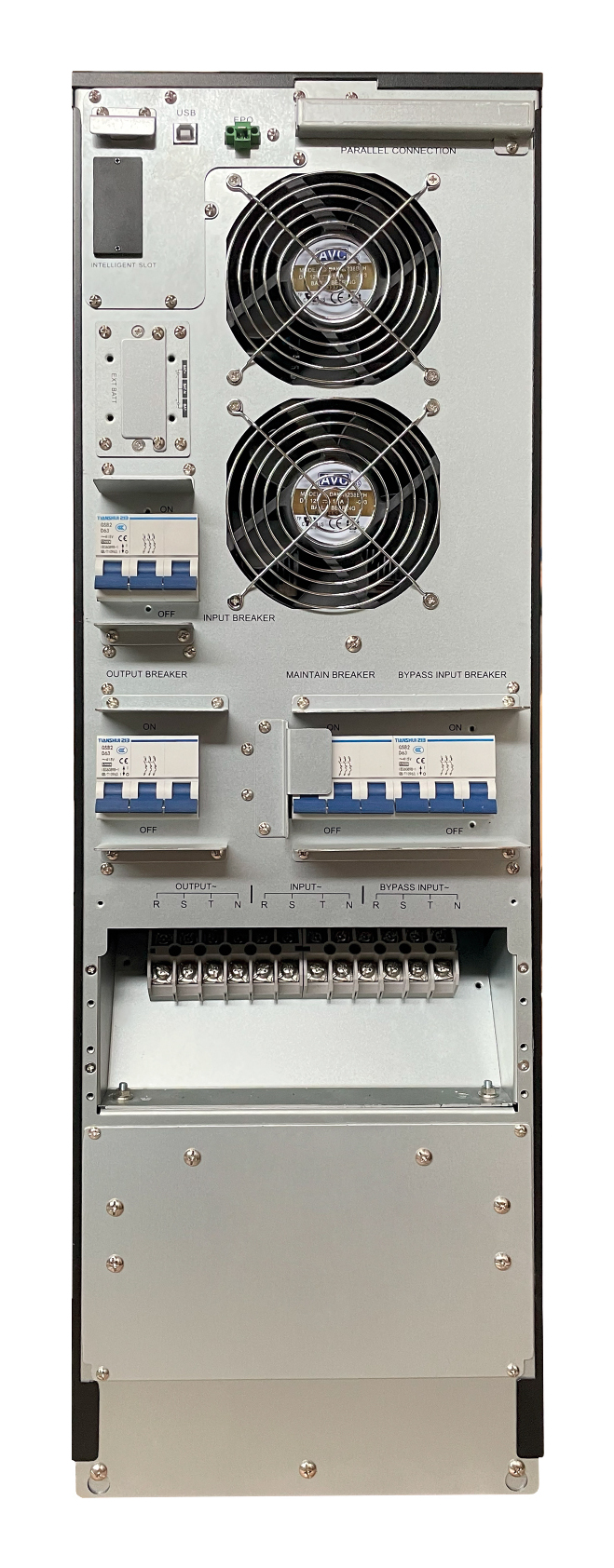

CDP UPO33-10IHFAX 10KVA/10KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 380/380 Vac
CDP

UPO33-10IHFAX 10KVA/10KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 380/380 Vac

Model UPO33-10HFAXiPart no. UPO33-10HFAXIEAN 879071004169

34 specifications
  • TypeTower
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
  • Battery technologyLead-Acid
See all specifications

Overview

Type
Tower
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Battery technology
Lead-Acid
Brand
CDP
Model
UPO33-10HFAXi
Part number
UPO33-10HFAXI
EAN / UPC
879071004169
Also known as
CDP UPO33-10IHFAX 10KVA/10KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 380/380 Vac

Specifications

34 specifications in 5 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformPure sine
Input operation voltage (min)304 V
Input operation voltage (max)456 V
Input frequency50/60 Hz
Output operation voltage (max)380 V
Output frequency50/60 Hz
Surge energy rating0 J
Number of input phases3
Number of output phases3
Efficiency (On-line mode)94%
Power factor1
Crest factor3:1
Input current Total Harmonic Distortion (THD)2%
Surge protectionYes
Power protection featuresDischarge overcurrent, Overload

Ports & interfaces

AC outlet typesHardwire
Power plugHardwire
USB portYes
Serial interfaceYes
Serial interface typeRS-232

Battery

Battery technologyLead-Acid
Battery voltage12 V
Number of batteries supported20
Typical backup time at full load7 min
Typical backup time at half load12 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Display typeLCD

Certificates

CertificationISO9001, ISO14001, CIDET, CE, ENERGY STAR, UL1778 Y FCC
