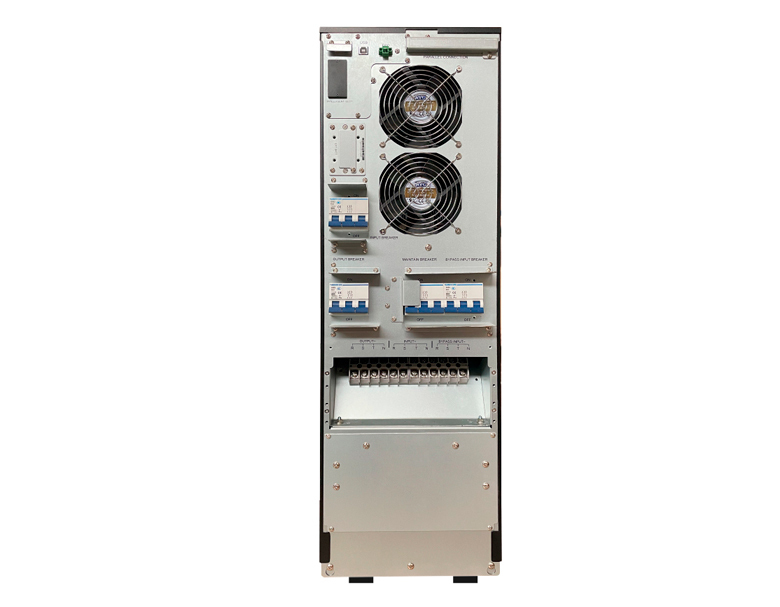

CDP UPO33-10HFAX 10KVA/10KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 208/208 Vac
CDP

UPO33-10HFAX 10KVA/10KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 208/208 Vac

Model UPO33-10HFAXEAN 879071001700

62 specifications
  • Battery9 Ah
  • TypeTower
  • Weight135 kg
  • ColourBlack
  • Output power capacity10 kVA
  • USB portYes
See all specifications

Overview

Battery
9 Ah
Type
Tower
Weight
135 kg
Colour
Black
Output power capacity
10 kVA
USB port
Yes
Brand
CDP
Model
UPO33-10HFAX
Part number
UPO33-10HFAX
EAN / UPC
879071001700
Also known as
CDP UPO33-10HFAX 10KVA/10KW PF 1.0, Online UPS 3PH HF, LCD UL, FCC, E-Star 208/208 Vac

Specifications

62 specifications in 8 groups

Features

Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)125 V
Input operation voltage (max)260 V
Input frequency40/70 Hz
Output operation voltage (max)220 V
Output frequency50/60 Hz
Output frequency regulation0.1 Hz
Output voltage regulation1%
Surge energy rating0 J
Response time0 ms
Number of input phases3
Number of output phases3
Three-phase input voltage supported220 V
Three-phase output voltage supported220 V
Efficiency (On-line mode)97%
Efficiency (ECO mode)99%
Power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)4%
EMI/RFI noise filteringYes
Surge protectionYes
Power protection featuresOverload

Ports & interfaces

USB portYes
Serial interfaceYes
Serial interface typeRS-485
RS-232 ports1

Battery

Battery technologyLead-Acid
Battery capacity9 Ah
Battery voltage12 V
Typical backup time at full load7 min
Typical backup time at half load12 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Weight & dimensions

Width250 mm
Depth900 mm
Height868 mm
Weight135 kg

Packaging data

Package weight128 kg

Logistics data

Master (outer) case net weight128 kg
Pallet gross height104.8 cm
Pallet gross length102.4 cm
Pallet gross weight150 kg
Pallet gross width37.5 cm
Master (outer) case width375 mm
Master (outer) case length1024 mm
Master (outer) case height948 mm
Master (outer) case gross weight135 kg
Products per master (outer) case1 pc(s)
