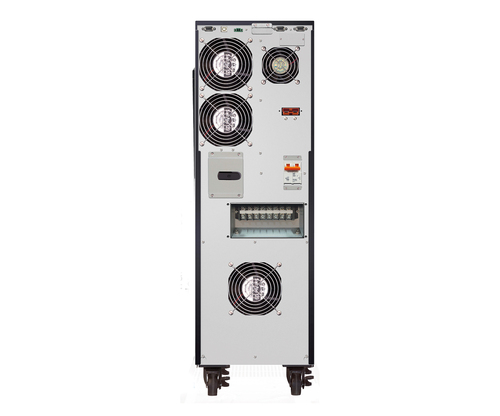

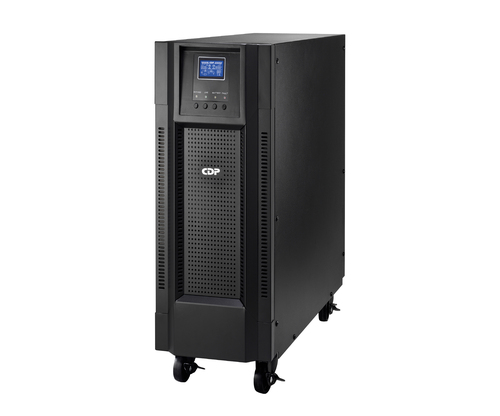

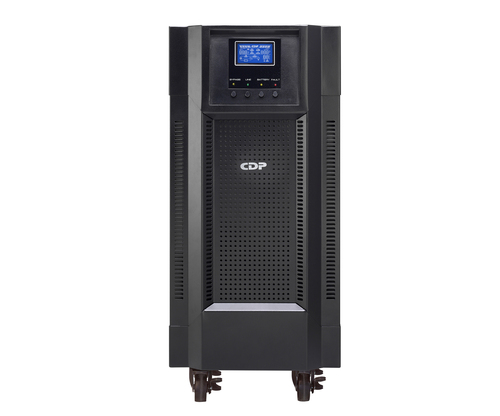

CDP UPO22-6AXi 6KVA/6KW PF 1.0, Online UPS Tower, LCD UL, FCC 220 Vac
CDP

UPO22-6AXi 6KVA/6KW PF 1.0, Online UPS Tower, LCD UL, FCC 220 Vac

Model UPO22-6AXiPart no. UPO22-6AXIEAN 879071004121

49 specifications
  • Battery9 Ah
  • TypeTower
  • Weight104.6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • USB portYes
See all specifications

Overview

Battery
9 Ah
Type
Tower
Weight
104.6 kg
Colour
Black
UPS topology
Double-conversion (Online)
USB port
Yes
Brand
CDP
Model
UPO22-6AXi
Part number
UPO22-6AXI
EAN / UPC
879071004121
Also known as
CDP UPO22-6AXi 6KVA/6KW PF 1.0, Online UPS Tower, LCD UL, FCC 220 Vac

Specifications

49 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity6 kVA
Output power6000 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Surge energy rating660 J
Response time0 ms
Number of input phases2
Number of output phases2
Power factor1
Crest factor3:1
Input current Total Harmonic Distortion (THD)3%
Surge protectionYes
Power protection featuresOverload, Short circuit

Ports & interfaces

USB portYes
USB port typeUSB Type-B
Serial interfaceYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of batteries included12 pc(s)
Typical backup time at full load5 min
Typical backup time at half load10 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Cooling typeActive
Built-in fanYes
Display typeLCD

Packaging content

Cables includedUSB cable
ManualYes

Certificates

Compliance certificatesRoHS, UL

Weight & dimensions

Width200 mm
Depth460 mm
Height720 mm
Weight104.6 kg

Packaging data

Package weight111.2 kg

Logistics data

Master (outer) case net weight104.6 kg
Pallet gross height12.1 m
Pallet gross length114 cm
Pallet gross weight657 kg
Pallet gross width68 cm
Master (outer) case width380 mm
Master (outer) case length680 mm
Master (outer) case height1074 mm
Master (outer) case gross weight111.2 kg
Products per master (outer) case1 pc(s)
