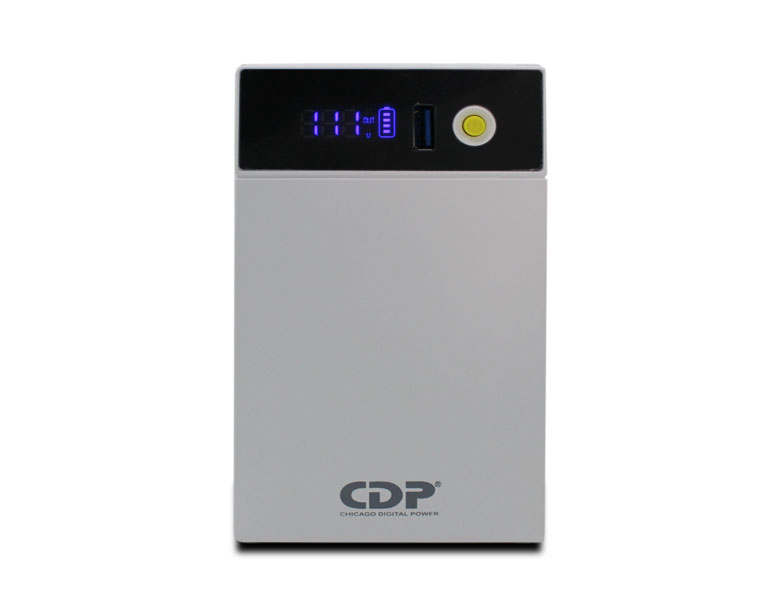

CDP LiSMART-1206 800VA/500W Smart UPS 6 Outlets, LCD, Compact lithium based UPS, smart software 120 Vac
CDP

LiSMART-1206 800VA/500W Smart UPS 6 Outlets, LCD, Compact lithium based UPS, smart software 120 Vac

Model LiSMART-1206Part no. LISMART-1206EAN 879071004428

42 specifications
  • Battery144 Wh
  • TypeTower
  • Weight4.6 kg
  • ColourWhite
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5-15R
See all specifications

Overview

Battery
144 Wh
Type
Tower
Weight
4.6 kg
Colour
White
UPS topology
Line-Interactive
AC outlet types
NEMA 5-15R
Brand
CDP
Model
LiSMART-1206
Part number
LISMART-1206
EAN / UPC
879071004428
Also known as
CDP LiSMART-1206 800VA/500W Smart UPS 6 Outlets, LCD, Compact lithium based UPS, smart software 120 Vac

Specifications

42 specifications in 8 groups

Features

UPS topologyLine-Interactive
Output power capacity0.8 kVA
Output power500 W
WaveformPulse width modulation (PWM)
Input operation voltage (min)85 V
Input operation voltage (max)150 V
Output operation voltage (min)102 V
Output operation voltage (max)132 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Number of output phases1
Surge protectionYes
Power protection featuresOverload

Ports & interfaces

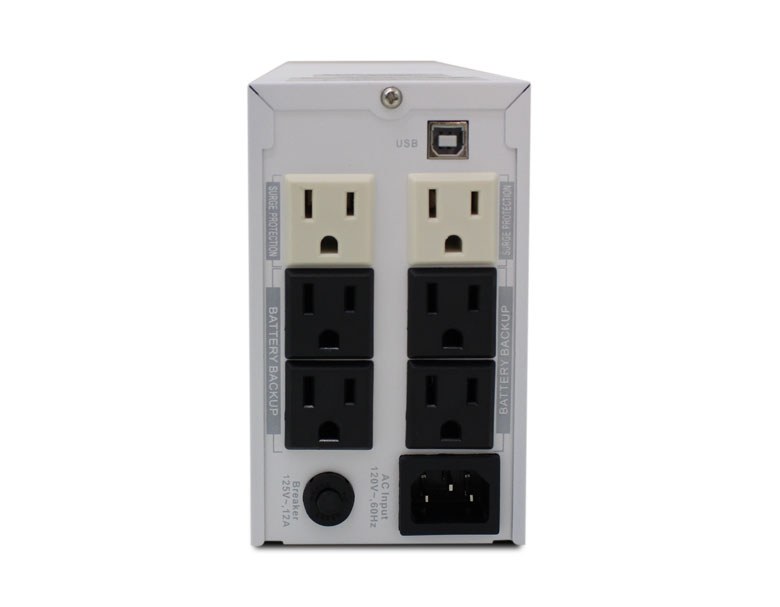

AC outlet typesNEMA 5-15R
AC outlets quantity6 AC outlet(s)
USB portYes
USB port typeUSB Type-A/USB Type-B

Battery

Battery technologyLithium Iron Phosphate (LiFePO4)
Battery voltage25.6 V
Battery recharge time(90%)6 h
Battery capacity144 Wh

Design

Form factorTower
Product colourWhite
Display typeLCD

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width85 mm
Depth300 mm
Height140 mm
Weight4.6 kg

Packaging data

Package weight5 kg

Logistics data

Master (outer) case net weight18.4 kg
Pallet gross height12 cm
Pallet gross length110 cm
Pallet gross weight838.4 kg
Pallet gross width110 cm
Master (outer) case width278 mm
Master (outer) case length372 mm
Master (outer) case height440 mm
Master (outer) case gross weight21 kg
Products per master (outer) case4 pc(s)
